Overview
The Rough Country 3-inch Nissan bolt-on lift kit with N3 shocks, part number R/C83430, fits the 2004–2015 and 2017–2021 Nissan Titan pickups. It combines tubular upper control arms, strut spacers and rear blocks with N3 front and rear shocks, giving ride height for tires up to 33 inches.
The upper control arms have Clevite rubber bushings and allow easier alignment adjustment. They keep the ball joint at better angles after lifting, which lowers stress and wear.
The installation is 100% bolt-on and requires no cutting or drilling. The truck can be returned to stock at any time.
Rear blocks with u-bolts raise the axle by sitting between the springs and the axle, and strut spacers do the same job at the front. Because the kit adds height at both ends, the front and rear should be checked for level after installation.
Tire clearance depends on wheel offset and backspacing as well as lift height, so 33-inch tires should be test fitted before the truck is driven.
Key features
- Tubular upper control arms with alignment adjustment
- Clevite rubber bushings
- Strut spacers for the front
- Fabricated rear blocks with u-bolts
- N3 nitrogen-charged shocks at the front and rear
- Ride height for 33-inch tires
Tire height and clearance
Tire clearance depends on lift height, wheel offset and backspacing, so a 33-inch tire should be test fitted before the truck is driven. Rubbing usually shows at full steering lock or on compressed suspension travel. Adjusting wheel offset or tire width can solve many fit problems without changing the kit.
Rear blocks with u-bolts carry load through the springs, so the u-bolts and axle mounts should be checked after the first drives and at regular service. Shocks and springs share the new ride height, and the N3 shocks can be checked for even damping and leaks during routine inspections.
- Test fit 33-inch tires before driving
- Re-torque u-bolts after the first few drives
- Check front and rear ride height for level
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C83430 |
| Lift kit | 3-inch, stage 1 |
| Shock series | N3 |
| Front shocks | N3 |
| Rear shocks | N3 |
| Tire size | 33 inches |
| Rear lift component | Block and u-bolt |
| Lift height range | 0 to 3.5 inches |
| Shocks included | Yes |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2004–2015 and 2017–2021 Nissan Titan. It does not fit Titan XD models.
The kit does not fit Titan XD models. Optional lifted struts fit 2004–2015 models only and do not fit Pro4X models. The 2016 model year is not on the list.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Optional loaded struts are for 2017–2020 4WD Titan models only, and optional lifted struts are non-adjustable. Check which strut option applies to your truck before ordering.
What’s included

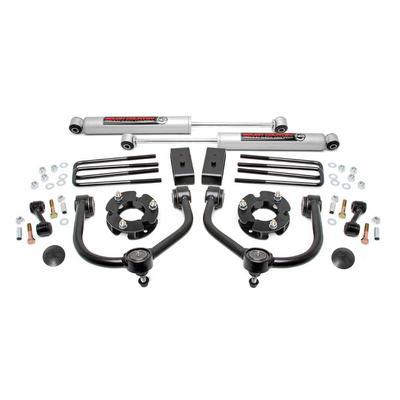

Tubular upper control arms, strut spacers, fabricated rear blocks with u-bolts, and N3 front and rear shocks.
