RockJock ACOS Coil Over Spring Adjustors, Rear – CE-ACOSR

RockJock 4x4

Shop Jeep Wrangler LJ Bump Stops on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Two-piece threaded rear bump stop for raising and lowering the rear
  • Adjusts rear height through the threaded upper stop

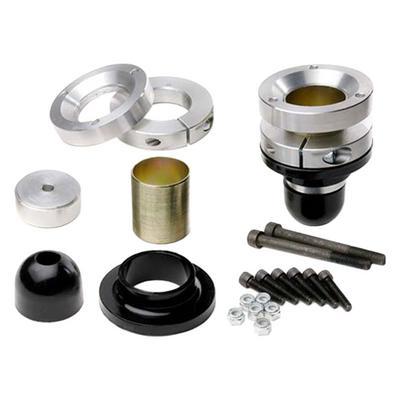

  • Includes a polyurethane bump stop and spring resting pad
  • Fits 2004–2006 Jeep Wrangler LJ Unlimited trims
  • RockJock 4×4 part CE-ACOSR

Description

Overview

The RockJock 4×4 CE-ACOSR is a rear coil over spring adjuster for the 2004–2006 Jeep Wrangler LJ. It uses a two-piece threaded upper bump stop, so the owner can raise or lower the rear height of the vehicle by turning the upper section.

The kit includes a polyurethane bump stop and a spring resting pad. The adjuster changes rear height only and is built for the LJ trims covered under Vehicle fitment.

Key features

  • Two-piece threaded upper bump stop
  • Raises and lowers the rear height
  • Polyurethane bump stop included
  • Spring resting pad included
  • Hydraulic bump type, per the manufacturer

Measuring and setting rear height

A threaded upper bump stop changes the rear height by moving the stop relative to the coil spring. Measure the rear height before making any change, and record the reading so you can return to a known setting. Make small adjustments and measure again, since a few turns can change the height more than expected.

Changing rear height also changes the spring seat position, the shock angle and the suspension travel before the stop engages. Check that the coil spring stays seated and that the shocks have enough length at full extension. A height change at the rear can affect driveshaft angle, so inspect the driveline after the change.

  • Measure rear height before and after each change
  • Make small adjustments and recheck
  • Confirm the spring stays seated
  • Inspect driveshaft angle after changes

Specifications

Brand RockJock 4×4
Part number R/JCE-ACOSR
Position Rear
Adjustment Threaded upper bump stop
Includes Polyurethane bump stop and spring resting pad
Fitment Direct fit

Vehicle fitment

It fits the 2004–2006 Jeep Wrangler LJ in its Unlimited and Unlimited Rubicon trims.

Confirm fit for your vehicle’s year, model and trim before ordering, including any Jeep TJ application.

Installation notes

The threaded upper bump stop sets the rear height, so the height should be measured before and after the change. Because the adjuster works on the coil spring, the spring’s position and the rear suspension travel should be checked after the install.

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the CE-ACOSR fit a 2005 Wrangler LJ Unlimited?

Yes. It fits the 2004–2006 Wrangler LJ, which includes 2005, in the Unlimited and Unlimited Rubicon trims. Confirm the trim before ordering.

Does it fit a TJ?

The fitment covers the LJ trims. Confirm fit for your vehicle's year, model and trim before ordering, including any TJ use.

What does the adjuster change?

It is a two-piece threaded upper bump stop. Turning the upper section raises or lowers the rear height of the vehicle, so the owner can set the rear height.

What should be checked after changing rear height?

Check shock angles, brake line length and driveshaft angle, since those move when rear height changes. Recheck the spring seat and stop position, and confirm the suspension has full travel without binding.
