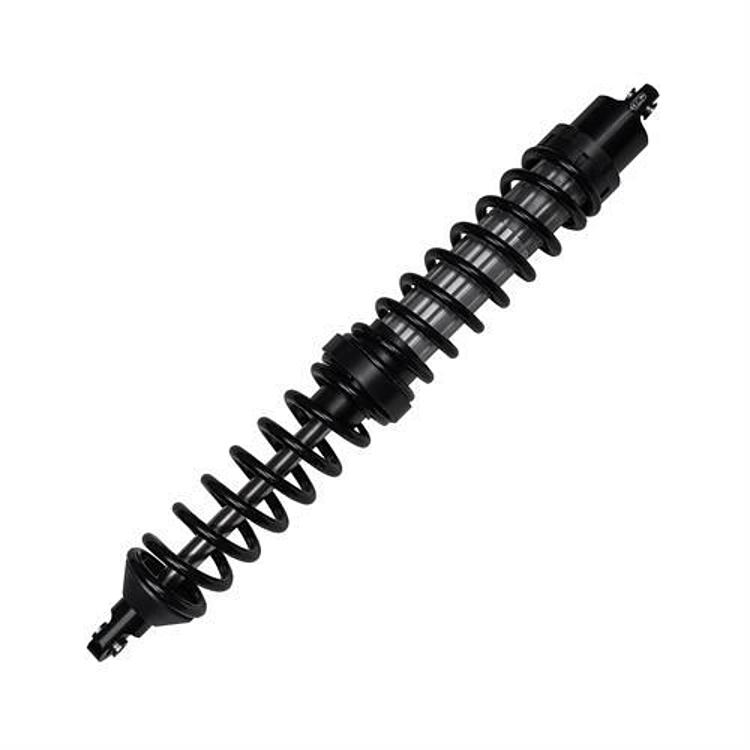

Rock Krawler Rear Coil Over – RK05344

Rock Krawler

Shop Jeep Wrangler JK Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rock Krawler RK05344 rear coilover shock for 2007–2017 Jeep Wrangler JK models.
  • 4.5 inch lift height with a 2-5/8 inch fluted aluminum body.
  • Remote reservoir design with a Nitrotec steel shaft and billet aluminum valve circuit.
  • Sold individually; made in the U.S.A.

Description

Overview

The Rock Krawler RK05344 is a rear coilover shock for 2007–2017 Jeep Wrangler JK 2-door models, sold individually. It is a remote reservoir shock with a 4.5 inch lift height, a 2-5/8 inch fluted aluminum body and a coilover design.

The fluted aluminum body is lighter than a comparable steel body, and the fluting adds structure so the aluminum cylinders stay strong. The body has a military grade hard anodized coating for corrosion resistance. Inside, the shock uses a Nitrotec steel shaft, a DU bearing, a billet aluminum valve circuit and redundant sealing. The body offers more surface area than most 3 inch bodied shocks.

Key features

  • Fluted aluminum shock body, 2-5/8 inch diameter, designed to cut weight while keeping strength.
  • Military grade hard anodized surface on the body for corrosion resistance.
  • Nitrotec steel shaft left bare rather than chrome plated, so plating pitting or flaking cannot damage the seals.
  • DU bearing supports the shaft.
  • Billet aluminum valve circuit with digressive valving controls dampening.
  • Redundant sealing technology keeps the shock oil inside the unit.
  • Emulsion, gas charged design with shock oil formulated for fade-free dampening and smooth rebounds.
  • High viscosity index and shear stability in the shock oil help control shock fade.
  • 4.5 inch lift height in the coilover shock series.

Rear coilover fitment checks

A coilover combines the shock and spring in one assembly, so spring rate and ride height both change when it is installed. Before bolting it in, confirm that the spring, upper mount and lower mount all match the rest of the rear suspension. The reservoir adds bulk to the layout, so check that it does not contact the body, fuel lines or the tire at full compression.

Coilovers are usually set up as a pair, and matching both sides keeps the rear end balanced over bumps. Brake lines, sway bar links and any track bar should be checked for clearance through full travel. After the first few drives, recheck the mounting hardware and look for rubbing at the spring seats.

  • Confirm the spring and mounts are in your kit
  • Check brake line and sway bar clearance
  • Recheck hardware after the first few drives

Specifications

Brand Rock Krawler
Part number RK05344
UPC 700007719981
Shock series Coilover
Lift height 4.5 inch
Body size 2-5/8 inch
Body material Fluted aluminum
Body finish Military grade hard anodized
Shaft Nitrotec steel, bare (not chrome plated)
Bearing DU bearing
Valve circuit Billet aluminum, digressive valving
Shock type Hydraulic, gas charged: emulsion
Fitment type Direct fit
Vehicle doors 2-door models
Quantity Sold individually
Made in U.S.A.

Vehicle fitment

It fits the 2007–2017 Jeep Wrangler (JK) in 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, as a direct fit.

This fitment does not cover the earlier Wrangler TJ (1997–2006) or LJ (2004–2006), or the Wrangler JL introduced for 2018 and later. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This is a remote reservoir coilover, so the reservoir needs its own mounting location with clear routing away from the tire and suspension travel. Check clearance through the full range of suspension travel. Sold individually, so each rear position needs its own unit. Support the vehicle securely on jack stands before working on the rear suspension.

What’s included

One shock is included, sold individually.

Not included: A coil spring, mounting hardware and brackets. Confirm you have these parts before installation.

SKU: RKSRK05344 Category:

Specification

Shipping weight 12.00 lbs
Package dimensions 40.00 × 5.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201770th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Rock Krawler RK05344 fit a 2007 to 2017 Jeep Wrangler JK?

Yes. It fits the 2007–2017 Jeep Wrangler (JK) in 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims. Confirm your vehicle's year, model and trim before ordering.

Will the RK05344 fit a Jeep TJ or LJ Wrangler?

It fits 2007–2017 Jeep Wrangler JK models only, and the Wrangler TJ and LJ are outside that range. Check your year and model against that range before buying.

What lift height is the Rock Krawler RK05344?

The shock has a 4.5 inch lift height. It is a coilover shock with a 2-5/8 inch fluted aluminum body and a remote reservoir.

Is the Rock Krawler RK05344 sold as a pair?

No. It is sold individually, so a rear pair needs two units, one for each side. It fits 2-door models.

Does the RK05344 include a coil spring or mounting hardware?

Confirm that a coil spring, mounting hardware and brackets are in your kit before installation, and source any missing parts separately.

Should coilover springs be replaced when a shock is replaced?

Check the coil springs when the shock is replaced, since worn springs can sag and change ride height. Sagging or cracked springs are often replaced together with the shock to keep the rear suspension balanced.
