Overview

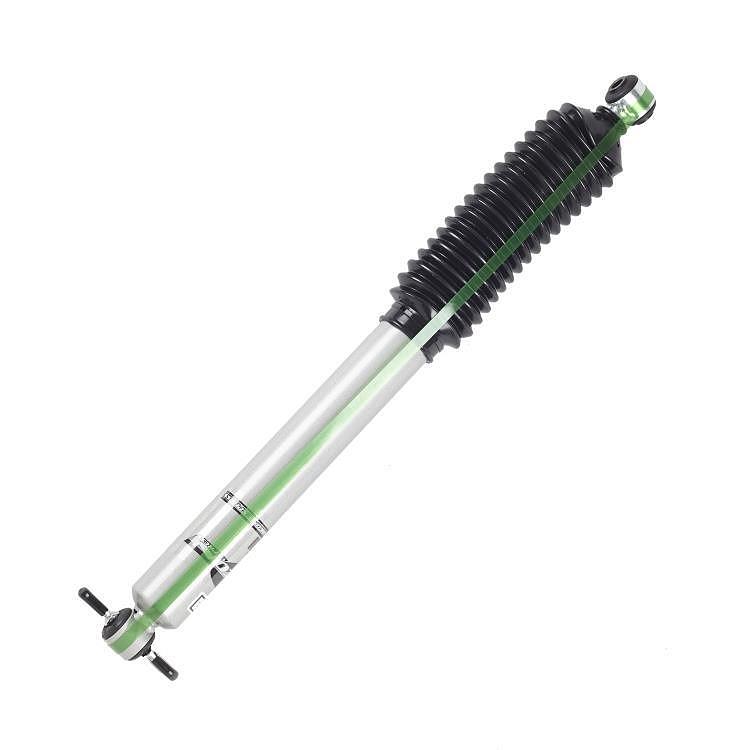

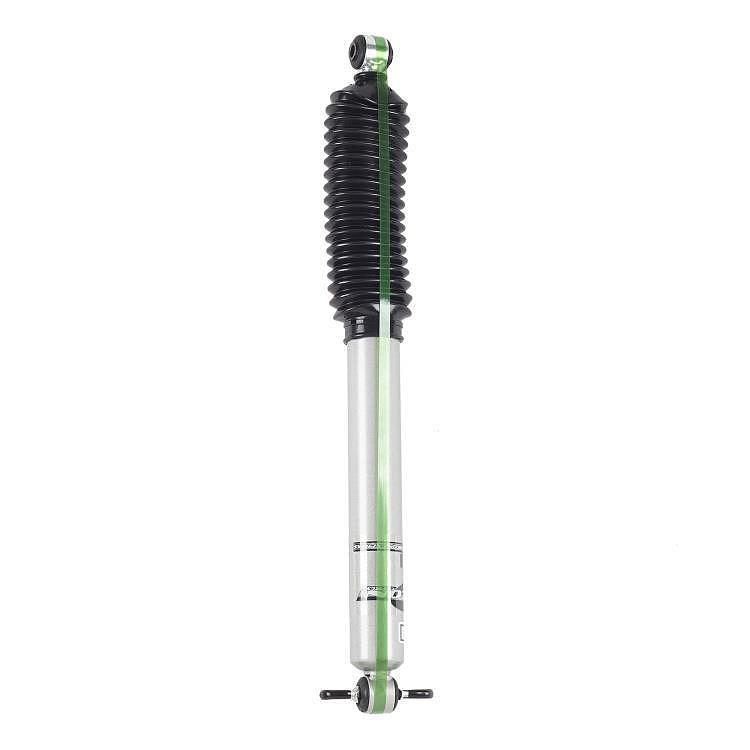

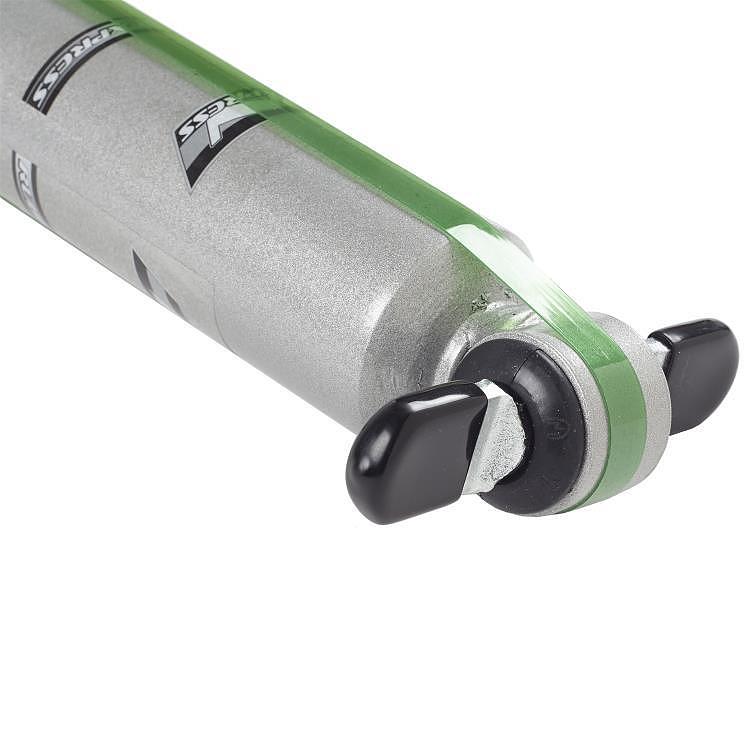

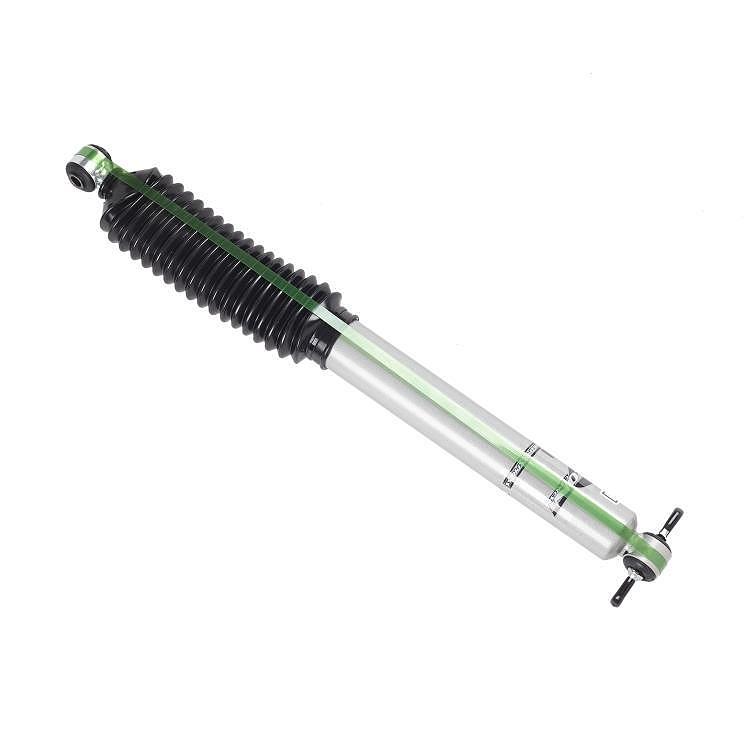

The Rubicon Express RXJ712 is a rear Extreme-Duty mono-tube shock absorber, sold each, for 2007–2018 Jeep Wrangler (JK) models with a 4 inch lift. It is gas charged, extends to 28.00 inches and collapses to 17.60 inches.
The Extreme-Duty mono-tube design is developed and tuned for each application. This gives control on the toughest terrain without giving up ride quality, high-speed stability and comfort on longer trips.

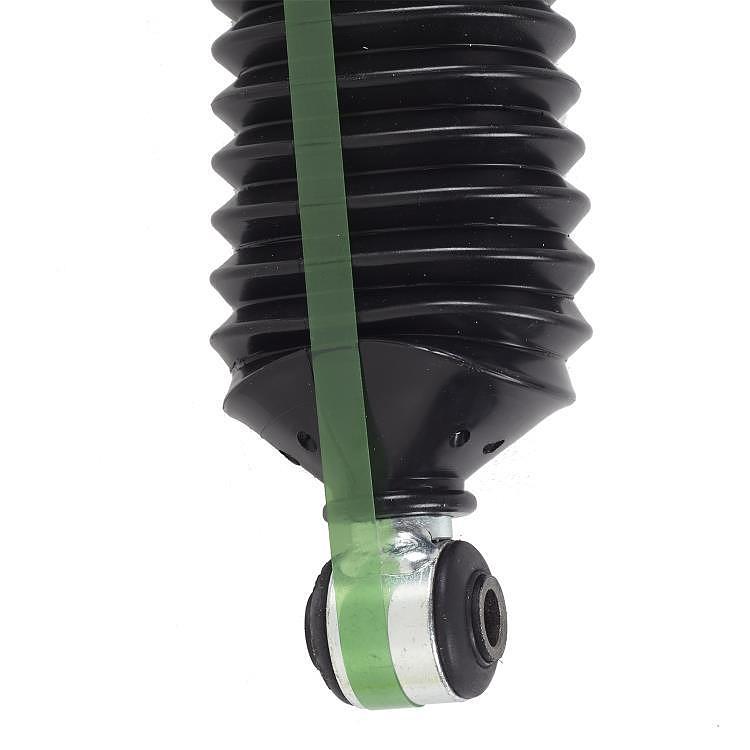

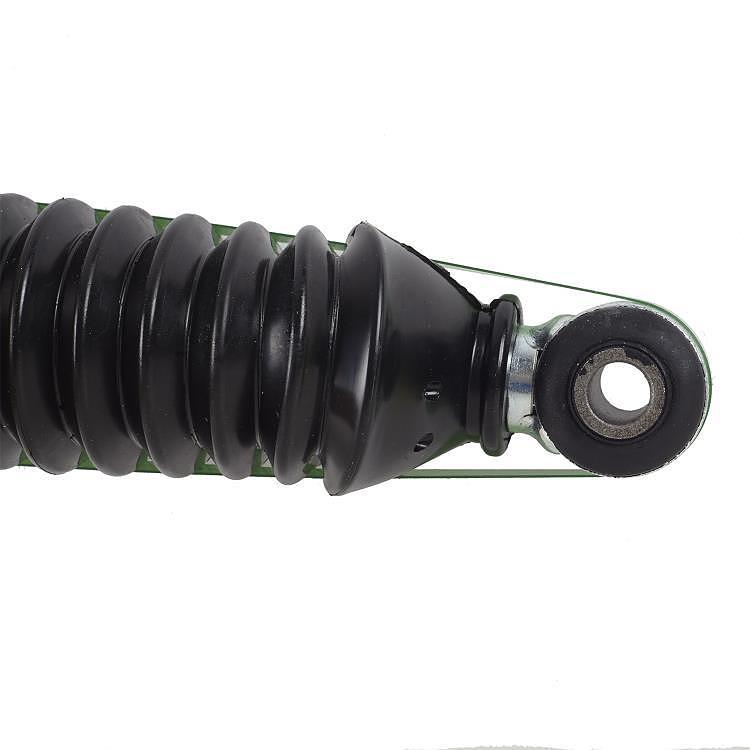

The shock has 14.40 inches of travel and includes a shock boot. It fits 2- and 4-door models.
Key features
- Extreme-Duty mono-tube design
- Gas charged
- Rear mounting position
- Extended length of 28.00 inches and collapsed length of 17.60 inches
- Travel of 14.40 inches
- Includes a shock boot
- Designed for a 4 inch lift
- Sold as each
Shock length and travel
Travel describes how far the shock can extend and compress between its mounts, and it is the first thing to check when a shock is replaced. A shock with the right travel supports the axle through a full range of motion without bottoming out or hitting the bump stops early. Extreme-Duty mono-tube shocks are often chosen for trails because the damping stays consistent as the oil heats up.
Installation is simpler when the old shock is measured in its installed position, with the vehicle at its normal ride height. Replace shocks in pairs on the same axle so the ride stays balanced, and inspect the mounting hardware and bushings during the job. After the first few drives, check the boot for tears and the shock body for leaks, since oil on the body usually means the seals have failed.
- Measure extended and collapsed length in the installed position
- Replace shocks in pairs on the same axle
- Inspect the boot for tears after installation
- Check mounting hardware after the first drives
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RXJ712 |
| UPC | 614901450064 |
| Shock series | Extreme-Duty mono-tube |
| Position | Rear |
| Extended length | 28.00 inches |
| Collapsed length | 17.60 inches |
| Travel | 14.40 inches |
| Gas charged | Yes |
| Lift | 4 inch |
| Included | Shock boot |
| Sold as | Each |
Vehicle fitment
It is for the 2007–2018 Jeep Wrangler (JK), including Unlimited four-door bodies and the Rubicon, Sahara, Sport, Sport S and X trims. The JL generation Wrangler and the JT Gladiator are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the extended and collapsed lengths against the shock you are replacing before ordering. The 28.00 and 17.60 inch lengths define the range this shock covers between its mounts.
What’s included
One shock with its shock boot. The shock is sold as each, so a pair needs two shocks.
