Overview

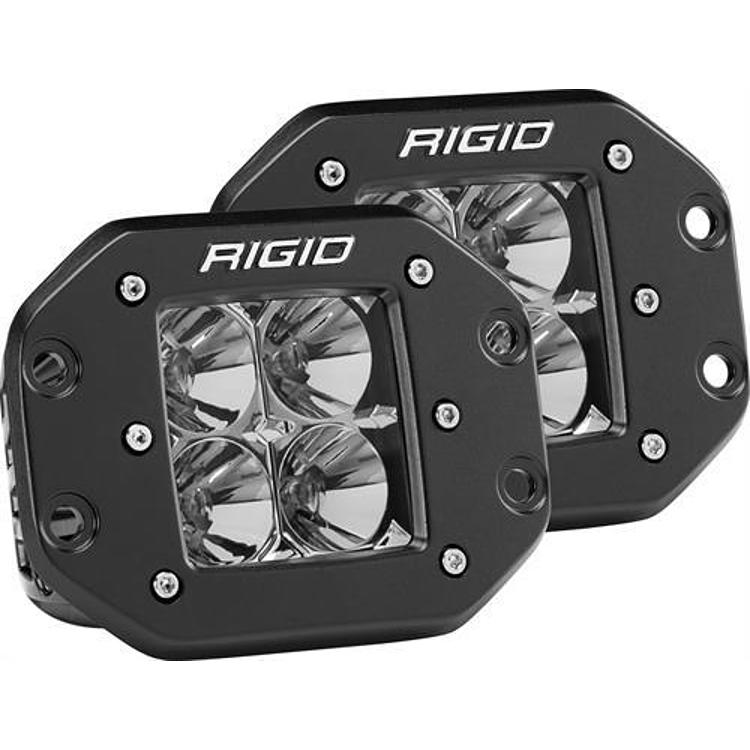

The Rigid Industries D-Series Dually 20 Deg. Flood LED Light is a set of two 3-inch square lights with a 20-degree flood beam for flush mounting. The flood pattern spreads light across a wide area close to the vehicle, and each light uses four white LEDs behind a hybrid optic.
The D-Series is a compact light package with more cooling surface than an equivalent-sized light. The version you choose sets the output, either 1568 or 3096 lumens. The lights come with a clear lens and a black finish.
Key features
- 20-degree flood beam
- Four white LEDs per light
- Hybrid optic in a square housing
- Flush mount for a clean installation
- Clear lens with a black finish
- Sold as a set of two
Choosing the right flood setup
A 20-degree flood suits work lighting, camp areas and slow trail sections, where light needs to spread across the ground near the vehicle. It is less useful for seeing far ahead at speed, so pair it with a spot light if you drive fast on open roads or at night in the backcountry.
Before you buy, think about where the lights will be seen from and how the panel will carry them. A flush install hides the housing but makes the panel cut permanent, so measure twice. Pairing the lights on one fused circuit keeps them matched in brightness and simplifies switching.
- Pair with a spot light for distance
- Measure the panel before cutting
- Use one switch for a matched pair
Specifications
| Brand | Rigid Industries |
|---|---|
| UPC | 849774026997 |
| Series | D-Series Dually |
| Light type | LED light, sold as a set of two |
| Light shape | Square, 3 inches |
| Mounting | Flush |
| Lens color | Clear |
| Beam pattern | 20-degree flood |
| LED count | 4 white LEDs per light |
| Output | 1568 or 3096 lumens |
| Finish | Black |
Vehicle fitment
It is a universal fit, so it is not built for one vehicle. Flush mounting means each vehicle needs a panel opening that matches the 3-inch housing, so plan the cut for the chosen surface.
Installation notes
Cut the flush openings to the housing size, then wire the pair through one fused circuit. Keep the cable away from moving parts, and check local rules on driving lights before using them on a road vehicle.
What’s included
The set holds two flush-mount lights. Confirm the harness and bezel against your installation before starting.
