Overview

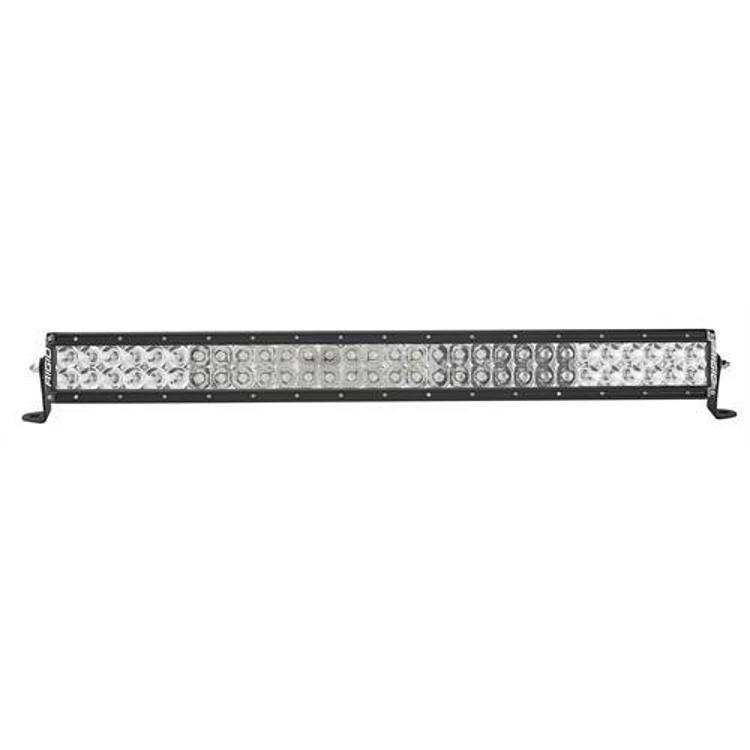

The Rigid Industries E-Series 10 Deg. Spot/20 Deg. Flood Combo LED Light, 30-inch version, is a single rectangular light bar with a combination beam. Its hybrid optics give a 10-degree spot for reach down the trail and a 20-degree flood for the ground close to the vehicle, all from one bar.
The bar has 60 white LEDs and a 50,000-plus hour LED lifespan. It starts instantly, has over and under voltage protection and uses a durable polycarbonate lens. The housing includes integrated thermal management and a GORE pressure equalizing vent, and it is engineered and assembled in the USA.
Key features
- 10-degree spot and 20-degree flood combo beam
- Patented hybrid optics
- 60 white LEDs
- 50,000-plus hour LED lifespan, per Rigid
- Instant on and off with no warm-up
- Durable polycarbonate lens and GORE pressure equalizing vent
Mounting a long bar
A bar this long puts more load on its bracket and more leverage on the mounting surface. Choose a flat, rigid area and keep the ends supported so the bar does not sway at speed. Long bars also need clear space on each side, so check that the bar will not catch branches or other gear.
The combo pattern works well when the bar is set level and centered. Measure from the centerline of the vehicle before drilling, and mark both ends. Wire the bar through a fuse and a switch that the driver can reach without leaning out of the cab.
- Center the bar on the vehicle
- Support both ends of the bracket
- Route wiring away from heat and sharp edges
Specifications
| Brand | Rigid Industries |
|---|---|
| UPC | 849774029066 |
| Series | E-Series |
| Light type | LED light bar, sold as a single bar |
| Size | 30 inch |
| Light shape | Rectangular |
| LED count | 60 white LEDs |
| Beam pattern | Combo: 10-degree spot, 20-degree flood |
| Mounting | Surface, bracket |
| Lens color | Clear |
| Lens material | Durable polycarbonate |
| Finish | Black |
Vehicle fitment
It is a universal fit and is not built for one vehicle. A bar this length needs a bracket location with room on the bumper, roof or frame, and the owner chooses that spot. Match your vehicle’s year, model and trim before you place the order.
Installation notes
Mark the bracket spot before drilling, and use a fused circuit sized for the bar’s load. Keep the wiring clear of moving parts, and check local rules on driving lights before using the bar on a road vehicle.
What’s included
One 30-inch combo bar is included. Compare the contents with your installation plan before starting.
