Overview

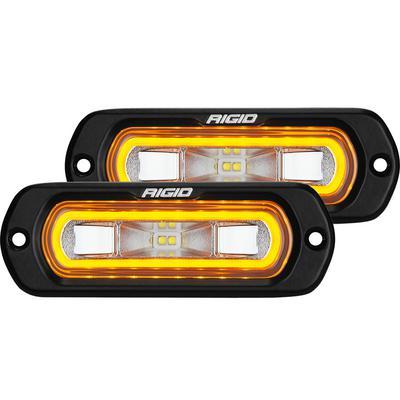

The Rigid Industries SR-L Series Flush Mount LED Spreader Light with amber halo, part number 53223, is a scene light that Rigid says adds area lighting and style to any vehicle. It has a broad 120-degree horizontal beam to light the wide area around a vehicle, plus halo backlighting in amber.
The light is rated at 14 watts and 1452 lumens, with a maximum voltage of 36 and an amp draw of 1. It reads 8.40 lux at 10 m, and its beam distance is 57.90 at 0.25 lux and 29 at 1 lux, which show how far the light reaches.

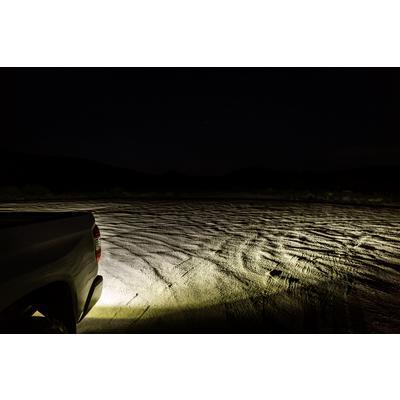

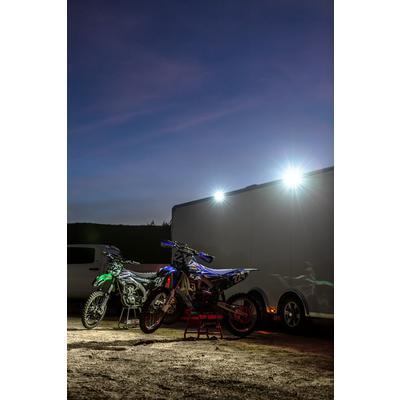

A spreader light is built to cover a broad area close to the vehicle, such as a campsite, a trailer hitch or the ground beside a rig, rather than to throw a long beam down the trail.
Key features
- 120-degree horizontal beam for wide area lighting
- Amber halo backlighting
- Flush mounting
- High-grade aluminum housing
- Impact resistant polycarbonate lens
Spreader beams and aiming
A spreader beam lights a broad area close to the vehicle, which suits camp setup, loading a trailer and working around a rig after dark. A halo backlight is a styling feature, so it does not change the main beam. When choosing where to fit a flush light, consider how the beam will fall on the ground and whether any part of the vehicle will block it.
Good wiring habits protect a flush mounted light. Keep the flying leads away from heat, moving suspension and sharp edges, and use a fused circuit sized for the light. If you use a plug-in harness, check the connector seal each time the light is cleaned. Lenses are polycarbonate and can be cleaned with mild soap and water. Inspect the mounting surface for cracks or loose fixings after rough trail use.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 53223 |
| Series | SR-L Series Spreader, flush mount |
| Halo color | Amber |
| Mounting location | Flush |
| Bulb type | LED |
| Watts | 14 |
| Lumens | 1452 |
| Horizontal beam angle | 120 degrees |
| Lux at 10 m | 8.40 |
| Beam distance at 0.25 lux | 57.90 |
| Beam distance at 1 lux | 29 |
| Voltage max | 36 volts |
| Amp draw | 1 amp |
| Quantity | Single light |
Vehicle fitment
This is a universal accessory light with no vehicle, year or model tied to it. The flush mount and halo backlight suit many spots, so the spot you pick on your vehicle determines the fit. Confirm fit for your vehicle’s year, model and trim before ordering any bracket or harness.
Confirm your vehicle’s year, model and trim before ordering any bracket or harness.
Installation notes
The light has flying leads and can be wired straight into the vehicle’s electrical system, or fitted with the RIGID wiring harness, part 40300, which is sold separately. Fuse the circuit and check local rules for auxiliary lighting before road use.
What’s included
One SR-L Series flush mount spreader light with amber halo and flying leads wiring.
Not included: the RIGID wiring harness, part 40300.
