Overview

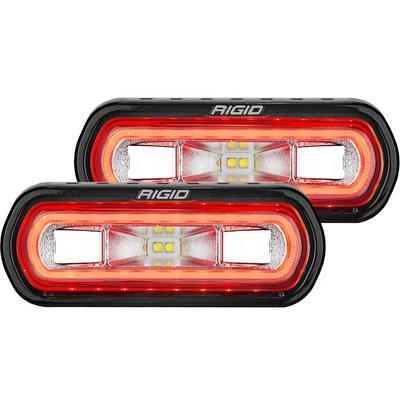

Part number 53122 is the red halo version of the SR-L Series surface mount spreader light. It mounts on the surface of a vehicle, and its 120-degree beam lights the wide area around the vehicle while the red halo adds accent backlighting.
The light is rated at 14 watts and 1452 lumens, with a maximum voltage of 36 and an amp draw of 1. It reads 8.40 lux at 10 m, with beam distances of 57.90 at 0.25 lux and 29 at 1 lux.
A red halo is a backlight that glows red around the lens. Some areas restrict red lighting on vehicles, so check local rules before using it.
Rigid offers this series in four halo colors, and red is one of them.
Key features
- Surface mount design
- Red halo backlight
- 120-degree horizontal beam
- Spread beam pattern
- Impact resistant polycarbonate lens and high-grade aluminum housing
Keeping the light in good shape
Surface mount lights take more weather and debris than flush lights, so regular checks help. Look for loose mounting hardware, cracked lens edges and worn cable jackets after each trip. A clean lens keeps the beam even and the halo glow consistent.
Red halo lighting may draw attention on the road, and some areas limit red lighting on vehicles, so check local rules before fitting it to a vehicle used on public roads. For off-road use, a red halo can suit a camp or trail setting where accent lighting is wanted. Route the leads away from heat and moving parts, fuse the supply, and seal any wire joints. If the halo dims or flickers, inspect the connections first before assuming a fault in the light itself.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 53122 |
| Series | SR-L Series Spreader, surface mount |
| Halo color | Red |
| Mounting location | Surface |
| Bulb type | LED |
| Watts | 14 |
| Lumens | 1452 |
| Horizontal beam angle | 120 degrees |
| Beam pattern | Spread |
| Lux at 10 m | 8.40 |
| Beam distance at 0.25 lux | 57.90 |
| Beam distance at 1 lux | 29 |
| Voltage max | 36 volts |
| Amp draw | 1 amp |
| Quantity | Single light |
Vehicle fitment
This universal light is not made for one vehicle, year or model, and none is listed. The fit depends on the surface and the position you choose, so check the spot before fixing the housing in place.
Confirm your vehicle’s year, model and trim before ordering any bracket or harness.
Installation notes
Seal any wire joints against weather, whichever wiring route is chosen. Flying leads are the wiring for this light, and the RIGID harness, part 40300, is the separate option for a plug-in setup. Fuse the supply and check local rules before using a red halo light on public roads, since some areas limit red lighting.
What’s included
One SR-L Series surface mount spreader light with red halo and flying leads.
Not included: the RIGID wiring harness, part 40300.
