Overview
The Revtek 2-inch rear lift block kit, part number 730BK, raises a spring-over rear axle without changing the spring rates. Blocks of this type give rear height while the original springs stay in service.
The kit is meant only for rear axles with a spring-over design. No vehicles are named, so confirm your axle design before buying.
Key features
- 2-inch rear height increase with spring rates left unchanged
- Intended for spring-over rear axle designs only
- Revtek part number 730BK with UPC 811323011297
- U-bolt kits with four U-bolts and nuts are sold in various diameters and lengths
Choosing U-bolts and blocks
Block kits sit between the leaf springs and the axle, so the height gained is set by the block thickness. Measure the new height before choosing U-bolts, because the old U-bolts may be too short to wrap the axle at the higher position. Spring rates stay where they were, which keeps the ride close to the original feel, though the axle path will change.
Because the rear is raised, check the shock absorbers for full extension and compression. Driveline angles, brake lines and the parking brake cable may need inspection after installation. Look at the U-bolts and nuts during the first few drives and retighten as needed.
- Measure U-bolt length against the new height
- Inspect shock extension and compression
- Check driveline angles after installation
- Re-torque nuts after the first drives
Specifications
| Brand | Revtek |
|---|---|
| Part number | 730BK |
| UPC | 811323011297 |
| Lift height | 2 inches |
| Axle design | Rear, spring-over |
| Spring rates | Not increased by the blocks |
Vehicle fitment
No vehicles are named for this kit, so fitment is not confirmed for any vehicle. It is intended only for rear axles with a spring-over design.
Front axles and other rear axle designs fall outside the intended use. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Blocks sit between the springs and the axle, so measure the U-bolts needed for the new height before installing.

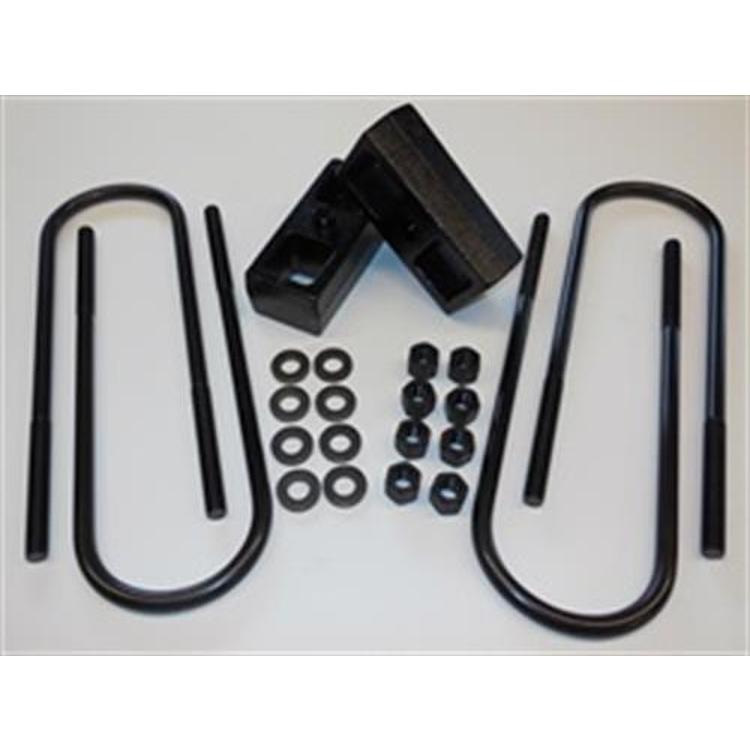

What’s included
Count the blocks, bolts and U-bolts against your installation plan before starting. Confirm whether U-bolts are part of your order.
