Overview
The Revtek 840R is a lift kit for the 2005–2015 Nissan Xterra 4WD and is a direct fit for the Off-Road, PRO-4X, S, SE and X models. The lift height is 2.5 inch. Confirm the lift height for your build before ordering.
The front uses coil spring spacers and the rear uses lift blocks with add-a-leafs. The kit is installer friendly, needs no cutting or welding, and can be installed in under 4 hours.
Key features
- Coil spring spacers at the front
- Lift blocks and U-bolts with add-a-leafs at the rear
- Alignment cam bolts included
- No steering correction required
- Installs in under 4 hours with no cutting or welding
Alignment and shock planning
Once a lift raises the front and rear, the alignment is the first thing to check. Caster and camber change with the new height, and alignment cam bolts give some room to bring them back in line. Set the alignment after the lift is fully installed and the truck has settled, rather than after the first few tire changes.
Shocks are not included with this kit, so plan for them before the install. Choose shocks sized for the listed lift height and check that they clear the coil springs and the new mounting positions. Worn shocks kept with a lift tend to make the ride feel loose, so inspect them at the same time.
Rear lift blocks and U-bolts should be retorqued after the first few drives. Look for loose bolts, a bounce at the rear, and any binding in the add-a-leafs.
Specifications
| Brand | Revtek |
|---|---|
| Part number | 840R |
| UPC | 70000597143 |
| Lift height | 2.5 inch (listed) |
| Suspension type | Coil spring kit |
| Front lift method | Coil spring spacers |
| Rear lift method | Lift blocks, U-bolts and add-a-leaf |
| Steering correction | None required |
| Shocks | Not included |
Vehicle fitment
It fits the 2005–2015 Nissan Xterra, including Off-Road, PRO-4X, S, SE and X models.
Xterra model years outside 2005–2015 are not covered. Check that your Xterra’s year, model and trim are covered before buying.
Installation notes
The kit includes alignment cam bolts, and no steering correction is required. Check the alignment after installation, as with any lift.

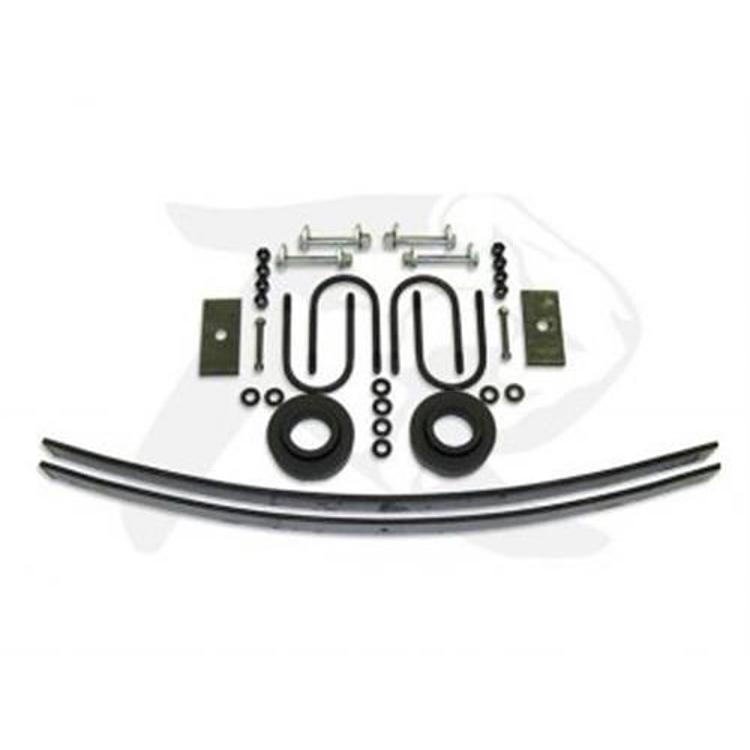

What’s included
The kit includes alignment cam bolts, all necessary hardware and installation instructions, plus the coil spring spacers and lift blocks with add-a-leafs.
Not included: Shocks.
