  • An 8-inch Stage II kit for the 2008–2010 Ford F-250 and F-350 Super Duty
  • Front coil springs with spacers, radius arms and bump stop extensions
  • Pitman arm steering correction and front sway bar links
  • Rear springs with U-bolts and ES9000 front and rear shocks

Description

Overview

The Pro Comp K4157B is an 8-inch Stage II lift kit with ES9000 shocks for the 2008–2010 Ford F-250 and F-350 Super Duty. Front coil springs and spacers raise the nose, radius arms take over the front control, and the rear is lifted with springs and U-bolts.

A Pitman arm corrects the steering at the new height. Bump stop extensions and front sway bar links are part of the front package, and brake line extension brackets allow the brake lines to reach the raised components. The product name and the spec table both give the lift as 8 inches.

Key features

  • 8-inch lift height, Stage II
  • Front coil springs with spacers
  • Radius arms
  • Pitman arm steering correction
  • Bump stop extensions and front sway bar links
  • Rear springs with U-bolts

Brake lines at full travel

Brake line extension brackets give the lines room to move as the suspension travels through its range. Before driving, flex the front end by hand and watch the hoses for tension, rubbing or kinks. A hose under strain should be rerouted or replaced before it fails.

Bump stop extensions and front sway bar links also limit travel and control body roll, so they affect where the brake lines sit at full compression. A Stage II lift often changes the geometry more than a basic lift, so check clearance at the steering linkage and tires too. Replace any cracked rubber boots at the same time.

  • Flex the suspension by hand before the first drive
  • Check hoses for rubbing or kinks
  • Inspect bump stops for cracks or deformation

Specifications

Brand Pro Comp Suspension
Part number K4157B
UPC 614901206913
Lift height 8 inch (lift height range 7 inches and up)
Lift kit stage Stage 2
Suspension type Radius arm or radius arm brackets
Front lift Coil springs and coil spring spacers
Steering correction Pitman arm
Rear lift Lift blocks and U-bolts with leaf springs
Front shocks ES9000
Rear shocks ES9000

Vehicle fitment

It fits the 2008–2010 Ford F-250 Super Duty and F-350 Super Duty in the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT versions.

Only the 2008 through 2010 Super Duty years are on the list. The 2011 and newer trucks are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

An 8-inch Stage II lift moves the front and rear geometry significantly, so the alignment and driveline angles need to be checked and the brake lines inspected at full travel.

What’s included

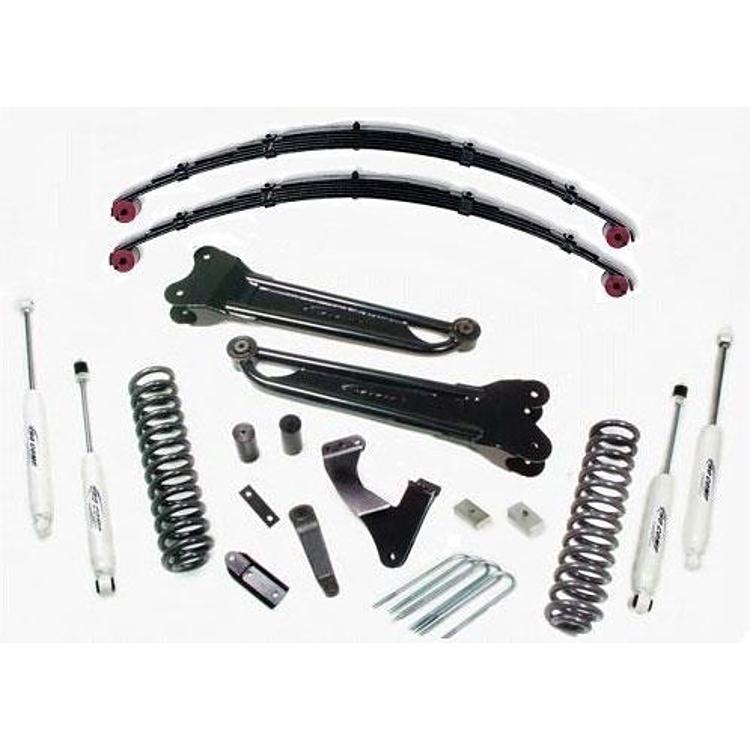

The kit includes front coil springs and spacers, radius arms, the Pitman arm steering correction, bump stop extensions, front sway bar links, brake line extension brackets, rear springs and U-bolts, and ES9000 front and rear shocks.

SKU: EXPK4157B Category:

Specification

Shipping weight 438.48 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2008–2010Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT
Ford F-350 Super Duty2008–2010Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the K4157B an 8-inch lift?

Yes. The product name and specifications table both give an 8-inch lift height, with a lift height range of 7 inches and up.

Which Super Duty years fit this kit?

It fits the 2008 through 2010 Ford F-250 and F-350 Super Duty, including the Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL and XLT versions.

What steering correction is used?

The steering correction is a Pitman arm, which is listed in the specifications table and is included with the front components.

How can I tell if the brake lines need replacing?

Look for cracked or swollen rubber, leaks at the fittings, and hoses that rub against the frame or suspension. Flex the front end by hand and inspect the hoses at full travel. Replace any hose showing damage before driving.
