Pro Comp 6 Inch Stage I Lift Kit with Rear Pro Runner Shocks – K2101BP

Pro Comp Suspension

Shop Ram 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch lift kit for 2014–2017 Ram 1500 4WD with Eco diesel engines
  • Rear Pro Runner shock absorbers included, front OEM shocks reused
  • Crossmembers, steering knuckles and differential drop brackets
  • Max tire size up to 35×12.50R17 on 18×9 or 20×9 wheels

Description

Overview

The Pro Comp K2101BP is a 6-inch lift kit for 2014–2017 Ram 1500 trucks with 4WD and Eco diesel engines. It suits Big Horn, Laramie, Limited, Lone Star, Outdoorsman, SLT and Tradesman trims.

The kit is the Pro Runner shock version of the K2101B. It uses the same crossmembers, steering knuckles and drop brackets, and it adds Pro Runner shock absorbers at the rear. The front shocks are the original units, which are reused.

The K2101BP keeps the K2101B package and swaps the rear shocks for Pro Runner shock absorbers. The front alignment and driveline checks that apply to the K2101B apply to this kit as well.

Key features

  • 6-inch lift kit with a listed lift height range of 5 to 6.99 inches
  • Rear Pro Runner shock absorbers
  • Crossmembers and steering knuckles
  • Front strut extensions and compression strut with mount
  • Skid plate and wiring harness

Pro Runner shock choice

Shock choice is one of the few differences between the K2101BP and the K2101B, so it is worth understanding what changes. Rear damping affects how the truck settles over bumps and how it handles weight in the bed. Because the crossmembers and knuckles stay the same, the front setup and the driveline plan carry over unchanged from the other kit.

Rear shock selection also matters for towing and payload. A heavier load compresses the rear springs further, and the shock must control that movement without bottoming out. Inspect rear shock mounts and eyelets at each service, and replace a worn unit before it affects tire wear or steering feel on the highway.

  • Confirm rear shock mount clearance
  • Check rear spacers for wear
  • Test the ride after the first tow

Specifications

Brand Pro Comp Suspension
Part number K2101BP
UPC 70000702756
Lift 6 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Knuckle
Front shocks Reuse OEM
Rear shocks Pro Runner
Rear lift method Spacers
Max tire size 35×12.50R17-20, 315/70R17, 305/70R18, 325/65R18, 295/60R20
Wheel size 18×9 with 5″ backspacing, or 20×9 with 5″ backspacing

Vehicle fitment

It is designed for 2014–2017 Ram 1500 trucks with the same trim range as the K2101B. Ram 2500 trucks and 2018 models fall outside its coverage.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the knuckles and crossmembers are replaced, the front alignment must be set after installation. The rear coil spring spacers change the rear geometry, so check the driveline angles as well.

What’s included

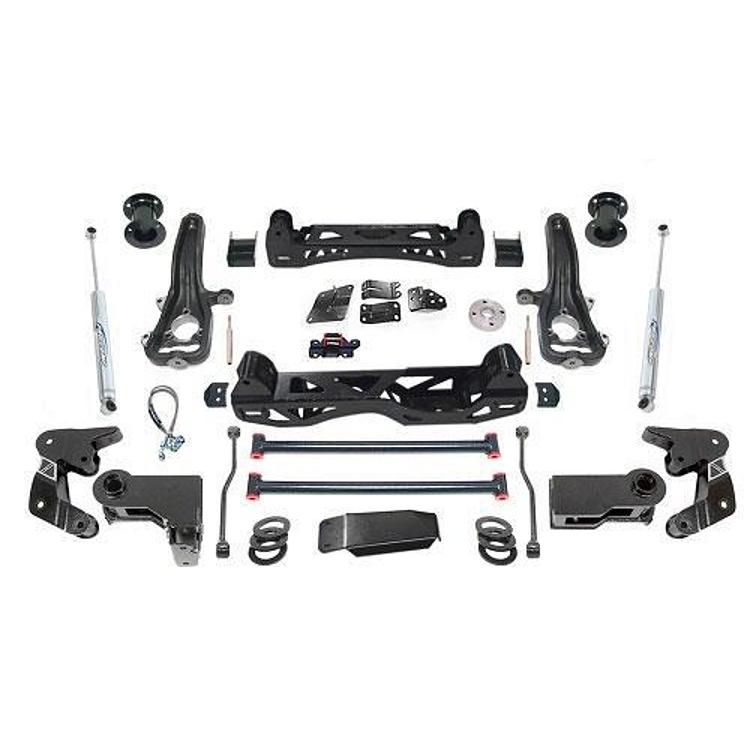

The box includes crossmembers, differential drop brackets, front strut extensions, a driveshaft spacer, front sway bar end link extensions, a wiring harness, front brake lines, steering knuckles, a compression strut and mount, a skid plate, rear control arm drop brackets, rear sway bar end links, rear coil spring spacers, a rear brake line drop bracket, a rear track bar bracket, rear Pro Runner shock absorbers and hardware.

SKU: EXPK2101BP Category:

Specification

Shipping weight 278.10 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Ram 15002014–2017Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, SLT, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How is the K2101BP different from the K2101B?

The K2101BP uses Pro Runner shock absorbers at the rear, while the K2101B uses ES9000 shocks at the rear. The rest of the kit is the same, so comparing shock types before ordering is worthwhile.

Does the K2101BP fit a Ram 1500 with a gas engine?

The kit is designed for 4WD Ram 1500 trucks with Eco diesel engines. Confirm your engine type and drive configuration against your vehicle before ordering.

What is the lift height?

The kit is a 6-inch lift, and the listed lift height range is 5 to 6.99 inches. The rear uses Pro Runner shock absorbers, and the front keeps the original shocks, so the shock setup differs from the ES9000 rear on the K2101B.

How do I know when the rear shocks need replacing?

Watch for fluid seeping down the shaft, a bouncy rear end after dips, or cupped tire wear. Inspect the shocks at every service and after rough trail use, since worn units reduce control on a raised truck.
