Overview

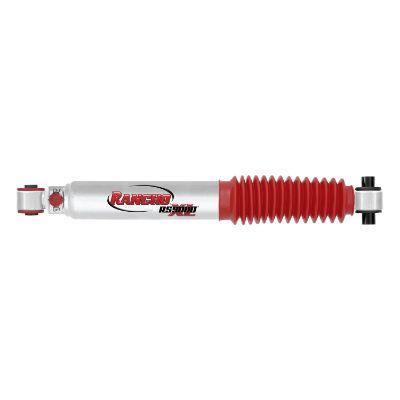

The Rancho RS999066 is a tri-tube RS9000XL shock for the 2018 and 2019 Jeep Wrangler (JL) and the 2020 Jeep Gladiator Rubicon. Lift settings of 3.5 inches for Rubicon and 4.5 inches for non-Rubicon models apply to a front setup, so confirm the position before ordering.

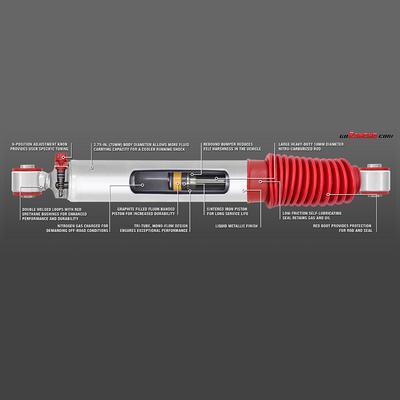

Its compressed length is 19.89 inches, its extended length is 28.59 inches, and travel is 8.70 inches. The large 2.75-inch (70 mm) tri-tube body uses nine-position tuning technology, and a protective boot is included.
The RS9000XL is engineered and manufactured in the U.S. and carries a 90-day free ride offer and a limited lifetime warranty.
Key features
- Tri-tube shock with a large 2.75-inch (70 mm) body
- Nine-position tuning technology
- Lift notes: 3.5 inches for Rubicon, 4.5 inches for non-Rubicon
- Protective boot
Checking travel before ordering
Travel is the distance between a shock’s compressed and extended lengths, and it sets how much wheel movement the damper can follow. A shock with more travel suits trucks that run large suspension movement, but it also needs room in the mounts and clearance from nearby parts. Before buying, measure the old unit and compare its lengths with the new one.
Clearance matters most at full droop, when hoses, brake lines and the driveline move closer to the shock body. Inspect these lines after installation and again after trail use. Look for chafing marks and make sure the shock does not bind at either end of its stroke.
- Measure the old unit before ordering
- Check hoses and lines for clearance
- Inspect mounts after the first trail run
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS999066 |
| Series | RS9000XL |
| Position | Rear |
| Shock type | Tri-tube |
| Lift notes | 3.5 inches for Rubicon, 4.5 inches for non-Rubicon |
| Compressed length | 19.89 inches |
| Extended length | 28.59 inches |
| Travel | 8.70 inches |
| Charge | Gas charged |
Vehicle fitment
It fits the 2020 Jeep Gladiator Rubicon and the 2018 and 2019 Jeep Wrangler (JL) in the Rubicon, Sport, Sport S, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport and Unlimited Sport S versions.
The list does not include the Wrangler JK, Gladiator model years other than 2020, or Wrangler JL years after 2019. Confirm your vehicle’s year, model, position and trim before ordering.
Installation notes
Confirm the mounting position on your truck before installing, because the lift settings given for this shock apply to front lifts.
What’s included
A protective boot comes with the shock.
