Overview

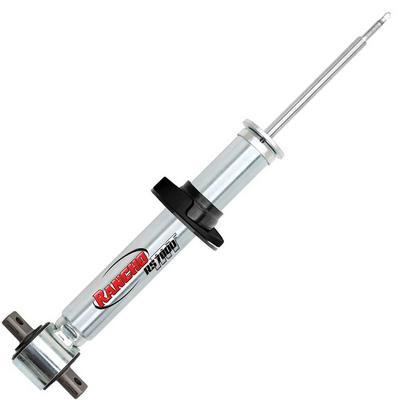

The Rancho RS7837 is a front RS7000MT monotube strut for 2014 through 2019 Ford F-150 4WD models with a 2-inch lift. It fits the FX4, King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, STX, XL and XLT versions.

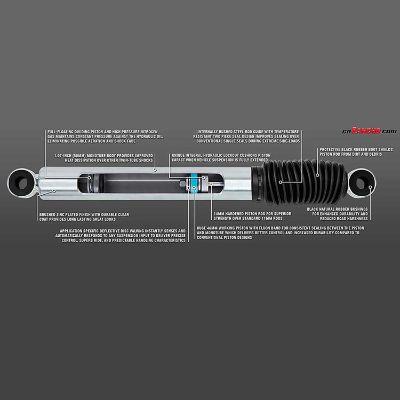

It uses a high pressure nitrogen gas charge and a free-floating dividing piston, with application-specific deflective disc valving. The monotube body is 1.97 inches in diameter with a 46 mm bore, and the piston is an Off-Road inspired Fluon banded design.
The RS7000MT monotube design dissipates heat effectively, which suits extreme off-road use and larger wheel and tire packages. It is engineered and manufactured in North America and carries a 90-day Free Ride Offer and a Limited Lifetime Warranty.
Key features
- Front monotube strut with a 2-inch lift
- Application-specific deflective disc valving
- Free-floating dividing piston
- High pressure nitrogen gas charge
- Off-Road inspired Fluon banded piston
- Brushed, zinc-plated liquid silver finish and protective boot
- Covered by a Limited Lifetime Warranty and 90-day Free Ride Offer
Lift and drivetrain matching
A front strut is tuned to a specific lift height and ride geometry. When a lift is added, the strut must extend to a longer position, and the upper and lower mounts need to suit the new angles. A strut matched to the wrong lift can bottom out, run short or put extra stress on the suspension.
Four-wheel drive trucks carry the drivetrain in a different layout from two-wheel drive, so front parts are not always interchangeable across drive types. Before buying, confirm the drive type, lift height and wheel and tire size. Larger tires add weight and leverage, so the strut matters more on heavier builds.
- Measure lift height at the front axle
- Confirm drive type on the truck
- Check tire diameter against the setup
- Plan an alignment after installation
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS7837 |
| Series | RS7000MT |
| Position | Front |
| Shock type | Monotube |
| Lift | 2 inch |
| Monotube body | 1.97 inches |
| Bore | 46 mm monotube construction |
| Charge | High pressure nitrogen gas |
| Drive | 4WD models |
Vehicle fitment
It fits 2014 through 2019 Ford F-150 4WD models in the FX4, King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, STX, XL and XLT versions.
The list does not include 2013 and earlier F-150 models, 2020 and later models, or 2WD trucks. Confirm your vehicle’s year, model, drive type and trim before ordering.
Installation notes
The strut is built for a 2-inch front lift. Confirm the lift on your truck before ordering. It is for 4WD models only.
What’s included
The strut comes with its protective boot.
