Rancho 4 Inch Lift Kit – RS6564B

Rancho

Shop GMC Sierra 2500 HD Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS6564B 4-inch torsion bar drop and knuckle lift kit for Silverado and Sierra 2500 HD
  • Impact struts, bump stop relocation brackets and skid plate included
  • Keeps factory steering geometry

Description

Overview

The Rancho 4-inch Lift Kit, part number RS6564B, is a torsion bar drop, crossmember and knuckle suspension for the Chevrolet Silverado 2500 HD and GMC Sierra 2500 HD. It lifts the front by dropping the torsion bars, using extended length steering knuckles and a one-piece subframe. The rear is lifted with lift blocks and U-bolts.

The kit keeps the factory rack and pinion location, so the factory steering and alignment geometry stay as designed and no steering correction is needed.

Rancho’s torsion bar drop uses extended length steering knuckles and a one-piece subframe, and the rear is lifted with blocks and U-bolts. Impact struts and bump stop relocation brackets are part of the kit, along with a skid plate.

Key features

  • Torsion bar drop front lift
  • Extended length steering knuckles

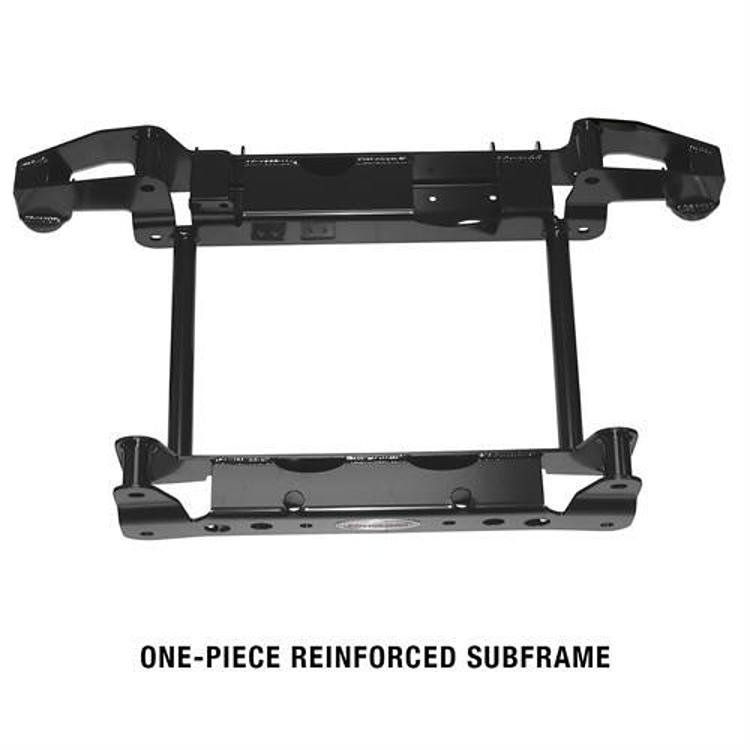

  • Heavy duty one-piece subframe
  • Impact struts and bump stop relocation brackets
  • Skid plate
  • Lift blocks and U-bolts for the rear

Drop knuckle front geometry

A drop style front lift lowers the torsion bars and uses longer knuckles to raise the truck, which changes where the front suspension pivots. The crossmembers and subframe carry the load through that new position, so the front end works as a single unit. Trucks used for towing or hard off-road work put more stress on these joints, and it helps to inspect them more often.

Check the front differential mounting, the skid plate fasteners and the bump stop brackets after the first drives. Shock clearance also deserves a look because the front arrangement changes at full compression. Old bushings and worn ball joints should be replaced before they start to affect steering.

  • Inspect subframe bolts for proper torque
  • Look for clearance between tires and the skid plate
  • Confirm shock length before ordering

Specifications

Brand Rancho
Part number RS6564B
UPC 39703065641
Lift height range 3 to 4.99 inches
Suspension type Knuckle
Rear lift method Coil springs with lift blocks and U-bolts
Steering correction None required
Maximum tire size 35 inches
Shocks Not included

Vehicle fitment

It fits these trucks:

  • 2011 to 2018 Chevrolet Silverado 2500 HD
  • 2011 to 2018 GMC Sierra 2500 HD

This kit is for 2500 HD models. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The kit requires longer shocks, which are not included. Plan the shock package before the install and check the alignment after the front lift is set.

What’s included

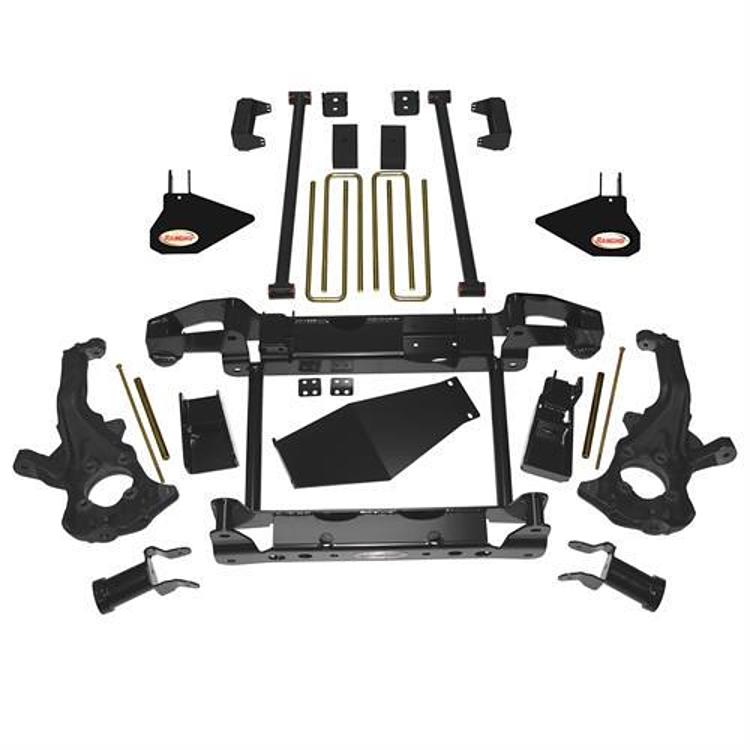

Impact struts, bump stop relocation brackets, a skid plate, extended length steering knuckles, torsion bar drop brackets, crossmembers, the subframe, and rear lift blocks with U-bolts. Not included: shocks.

SKU: RANRS6564B Category:

Specification

Shipping weight 272.50 lbs
Package dimensions 48.00 × 48.00 × 36.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2011–2018High Country, LT, LTZ, WT
GMC Sierra 2500 HD2011–2018Base, Denali, SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this 2500 HD kit fit a 2015 Chevrolet Silverado 2500 HD?

Yes. The kit covers 2011 to 2018 Silverado 2500 HD trucks, which includes 2015. Check your year and model before installing the kit.

Are shocks included with the RS6564B?

No. The kit does not come with shocks, and longer shocks are needed for the new front and rear heights.

Does the RS6564B keep the steering geometry?

Yes. The kit keeps the factory rack and pinion location, so steering correction is not required and the factory steering and alignment geometry are left intact.

What should I check after a front drop lift?

Check the alignment, ball joint boots, tie rod ends and driveline angles. Look for uneven tire wear, a pull under braking and loose hardware at the knuckles and subframe bolts, then re-torque fasteners after the first drives.
