Overview

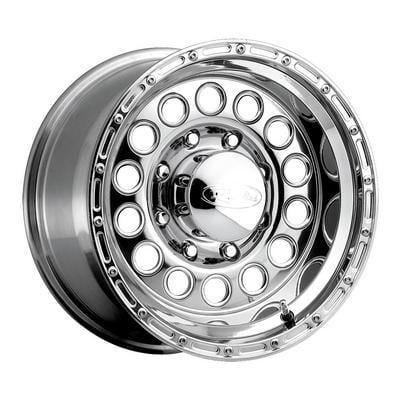

The Raceline Wheels Rock Crusher 16×8 is a 16-inch wheel, 8 inches wide, with a holes-style face and part number RLW887-68081. It is aluminum with a polished finish and an 8 on 170 bolt pattern, and it is a universal fit wheel rather than one built for a named vehicle.
The Rock Crusher name belongs to the 887 series. Raceline describes its performance wheel engineering as rooted in off-road racing, and this model is part of that range. The offset of -20 and backspacing of 3.7 place the wheel outward on the hub, so the mounting face and inner clearance both matter.
Key features
- 16 inch diameter and 8 inch width
- Holes-style face with a polished aluminum finish
- 8 on 170 bolt pattern and a center bore of 131
- Negative offset of -20 and backspacing of 3.7
- Part of the 887 Rock Crusher series
- Universal Fit, so the hub decides the match
Backspacing and inner clearance
Backspacing measures from the mounting face to the inner edge of the wheel, so it shows how much room sits behind the mount for calipers, brake lines and suspension arms. A wheel with less backspacing and negative offset sits farther outward, which can reach fender lips and make inner clearance tighter. Mount the wheel with the tire you plan to run and check clearance before final torque.
Holes-style faces let road debris and moisture into the wheel, so inspect the openings and lug holes after rough use. Check for cracks around the holes and the spoke areas. Aluminum wheels can be refinished, but grinding or stripping the face can thin the material, so ask a shop that works with aluminum before any refinishing.
- Check clearance at full steering lock
- Look for contact with calipers and brake lines
- Inspect holes and lug seats after rough trail use
- Recheck lug torque after the first few runs
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW887-68081 |
| Series | 887 Rock Crusher |
| Style | Holes |
| Finish | Polished |
| Construction | Aluminum |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Offset | -20 |
| Backspacing | 3.7 |
| Center bore | 131 |
| Bolt pattern | 8 on 170 |
Vehicle fitment
No specific vehicle is attached to this wheel, so its Universal Fit status means you must confirm the fit yourself. Check the 8 on 170 bolt pattern, center bore of 131, offset of -20 and backspacing of 3.7 against your hub, then verify brake and suspension clearance.
No specific vehicle is attached to this wheel, so fit has to be confirmed by you. Check the 8 on 170 bolt pattern, center bore of 131, offset of -20 and backspacing of 3.7 against your hub, then verify brake and suspension clearance. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A backspacing of 3.7 leaves less room behind the mounting face than a wheel with more backspacing, so check caliper and suspension clearance on the vehicle before mounting. The offset of -20 moves the tire outboard, which can reach fender lips on some setups. Hub-centric rings may be needed if your hub bore differs from the center bore of 131.
What’s included
The wheel is supplied alone, with no hardware, valve stems or center caps included. Tires are not part of this product.
Not included: tires.
