Raceline Wheels Monster, 17x9 with 5x5 Bolt Pattern – Satin Black – 928B-79050-12

Raceline Wheels

Shop Raceline Wheels 17x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17 x 9-inch aluminum windowed spoke wheel in satin black
  • 5 on 5 bolt pattern, -12 offset, 84 center bore, 4.5 backspacing
  • Part number RLW928B-79050-12 from the 928 Monster series
  • Universal fit design, so match the hub before choosing

Description

Overview

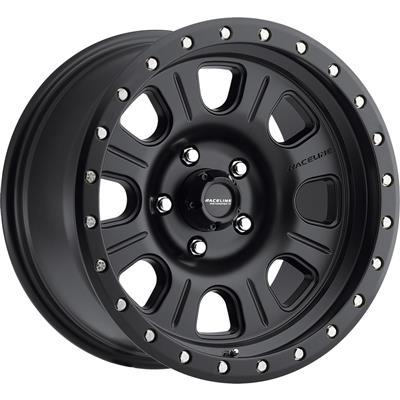

The Raceline Wheels Monster RLW928B-79050-12 is a 17 x 9-inch aluminum windowed spoke wheel in satin black, with a 5 on 5 bolt pattern. It is part of Raceline’s 928 Monster series.

The windowed style shows openings between the spokes, and the 84 center bore centers the wheel on the hub. A -12 offset places the mounting face outward, and 4.5 backspacing describes how far the rear of the wheel sits behind that face.

Raceline & Allied Wheel ties its consumer wheels to its off-road racing background, and the Monster is one of the lines that comes from that work. The 9-inch width matters when choosing tires for this wheel.

Key features

  • 17-inch diameter and 9-inch width
  • 5 on 5 bolt pattern
  • Windowed spoke design
  • Satin black finish
  • Aluminum construction
  • Part of the 928 Monster series
  • 84 center bore, -12 offset and 4.5 backspacing

Choosing the right setup

Wheel choice starts with hub geometry. The bolt pattern and center bore set how the wheel mounts and centers, while offset and backspacing decide how far the face sits inside the fender. A wheel can share a bolt pattern with another part and still rub, so measure inner clearance with the wheel and tire mounted.

Tire width needs thought at this rim size. A wider rim changes where the sidewall sits and how much room is left at full steering lock, so match the tire to the rim’s recommended width range. Lug seat style also matters, since a mismatched seat can loosen under load.

After mounting, inspect the lip and spokes after trail use, especially following rock contact. Look for cracks, bends or air loss, and recheck lug torque after the first few drives.

Specifications

Brand Raceline Wheels
Part number RLW928B-79050-12
Series 928 Monster
Wheel diameter 17 inches
Wheel width 9 inches
Bolt pattern 5 on 5
Center bore 84
Offset -12
Backspacing 4.5
Style Windowed
Finish Satin Black
Construction Aluminum

Vehicle fitment

This wheel is a universal fit design with no specific vehicle attached. Match the 5 on 5 bolt pattern and 84 center bore to your hub before choosing it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Lug seat style must match the wheel. Check the 5 on 5 pattern and the 84 center bore against the hub before mounting. A mismatched center bore will stop the wheel from centering on the hub.

What’s included

The package is the wheel only, with no lug nuts, caps or valve stems included.

SKU: RLW928B-79050-12 Categories: ,

Questions & Answers

Will RLW928B-79050-12 fit my vehicle?

No vehicle is named for this wheel, so fitment is not confirmed. Its Universal Fit label is a general design tag. Check your hub's 5 on 5 bolt pattern and 84 center bore, along with the -12 offset and 9-inch width.

What is the style and size of this satin black Monster?

It is a windowed spoke design, 17 inches in diameter and 9 inches wide. The finish is satin black, the construction is aluminum, and the center bore is 84. Offset is -12 and backspacing is 4.5.

What is the bolt pattern of the Raceline 928 Monster RLW928B-79050-12?

The bolt pattern is 5 on 5, meaning five studs on a 5 bolt circle. Confirm the load rating and weight rating with the seller before mounting, since those figures are needed for your application.

Do I need hub-centric rings with this wheel?

It depends on the hub. Hub-centric rings are needed only when the hub's pilot diameter is larger than the wheel's center bore. A ring can fill the gap so the wheel centers on the hub rather than the lug nuts. Check the hub size before ordering.
