Overview

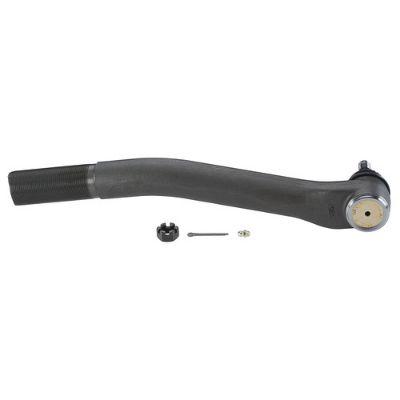

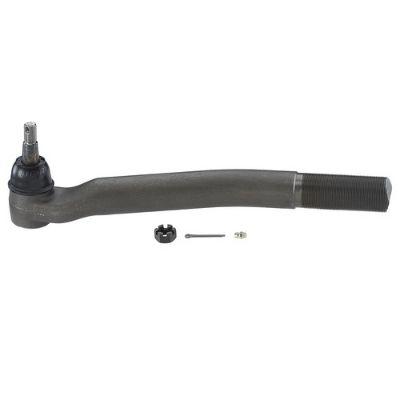

The Moog ES800881 is a left outer tie rod end for 4WD 2011–2016 Ford F-250 and 2008–2016 Ford F-350 Super Duty trucks. It is an OE-replacement part sold individually.
Moog gives it an exclusive cover plate that protects against contaminants leaking into the bearing surface, and a greaseable socket so fresh lubricant can flush out contaminants, reducing corrosion and wear. A powdered metal gusher bearing lets grease flow through to the stud for less friction and more strength, a patented cover plate allows tighter tolerances for a more durable part, and patent-pending Sunoloy-coated metal bearings provide smooth stud swing. Moog also warns that loose or worn chassis parts can cause early tire wear.
Key features
- Left outer tie rod end
- For 4WD models
- Exclusive cover plate keeps contaminants out of the bearing surface
- Greaseable socket
- Powdered metal gusher bearing
- Sunoloy-coated metal bearings, patent pending
- Sold individually
Keeping tie rod ends in service
Outer tie rod ends connect the steering knuckle to the steering linkage and take steering and road shock on every drive. Because they are at the wheel end, they are exposed to water, grit and road salt. Checking the joint for play and torn boots helps catch wear before the alignment drifts or the tires start to scallop.
When one tie rod end is replaced, the opposite side is often inspected at the same time, and the inner tie rod ends and any adjusting sleeve should be checked for play and damage. After installation, a front-end alignment is needed to set toe correctly. Greasing a greaseable socket at regular service intervals helps keep the joint working freely.
- Check for play by hand at the stud
- Inspect the boot and seal for cracks
- Re-check alignment after any replacement
Specifications
| Brand | Moog |
|---|---|
| Part number | ES800881 |
| Product | Left outer tie rod end |
| Drivetrain | 4WD models |
| Replacement type | OE replacement |
| Socket | Greaseable |
| Bearing | Powdered metal gusher design |
| Quantity | Sold individually |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2011–2016 Ford F-250 Super Duty and the 2008–2016 Ford F-350 Super Duty, in the Cabela’s, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, XL and XLT trims.
This is the left side for 4WD trucks, so the right side tie rod end and 2WD trucks are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the socket is greaseable, it can be lubricated to push old grease and contaminants out of the joint, which Moog says reduces corrosion and wear.
