Overview

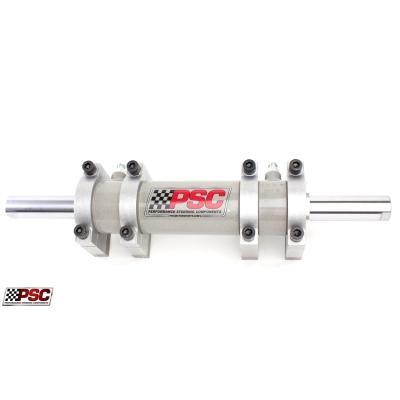

The PSC Steering double ended XD steering cylinder kit, part number PSMSC2227K1 and model SC2227K1, is a steering assist kit for full hydraulic steering systems. A double-ended cylinder has its rod extending out both ends. Approximate turning ratios apply to three Eaton Char-Lynn steering control units.
The turning ratios depend on the control unit used, so pair the kit with the unit you plan to run. No vehicles are named for this kit, so the fitment section below explains what can and cannot be confirmed.
Key features
- Double ended XD design, with the rod extending out both ends
- Steering assist for full hydraulic steering systems
- Approximate turning ratios given for three Eaton Char-Lynn control units
- Model number SC2227K1 and part number PSMSC2227K1
Choosing a control unit
The control unit sets how much fluid reaches the cylinder for each turn of the steering wheel, so it shapes how the steering feels. A larger unit moves more fluid per revolution, which gives a slower, firmer ratio, while a smaller unit gives quicker steering. Pick the unit based on how responsive you want the steering to be and how much effort you are prepared to put into turning.
A double ended cylinder is often used where the steering needs more assist or a balanced feel. Check that the hoses, fittings and pump capacity match the system before installation. Full hydraulic systems depend on steady pressure, so a leak or air in the lines shows up quickly as wandering or slow response.
- Match control unit displacement to the desired ratio
- Confirm hose sizes and fittings before installation
- Bleed air from the lines after the install
- Check the pump capacity for the system
Specifications
| Brand | PSC Steering |
|---|---|
| Part number | PSMSC2227K1 |
| Model number | SC2227K1 |
| Kit type | Double ended XD steering cylinder kit |
| System | Full hydraulic steering |
| Approximate turns lock-to-lock with FHV-CE160 | 3.4 |
| Approximate turns lock-to-lock with FHV-CE185 | 3.0 |
| Approximate turns lock-to-lock with FHV-CE230 | 2.4 |
Vehicle fitment
It is a Universal Fit kit. Confirm fit for your vehicle’s year, model and trim before ordering, and check that your steering system is full hydraulic.
The turn ratios apply only to the Eaton Char-Lynn control units named above; other control units will produce different ratios.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Larger displacement control units give a firmer steering feel and need more driver steering effort. Hydraulic steering work is best handled by a qualified installer, because the cylinders and control unit must work together.
What’s included
No hoses, fittings, brackets or other hardware are named for the kit.
