Overview
The K4201B is a 4-inch Stage 1 coil spring lift kit with ES9000 front and rear shocks for the 2017–2018 Ford F-250 and F-350 Super Duty. It is made for 4WD diesel models and is a completely redesigned system for those trucks.

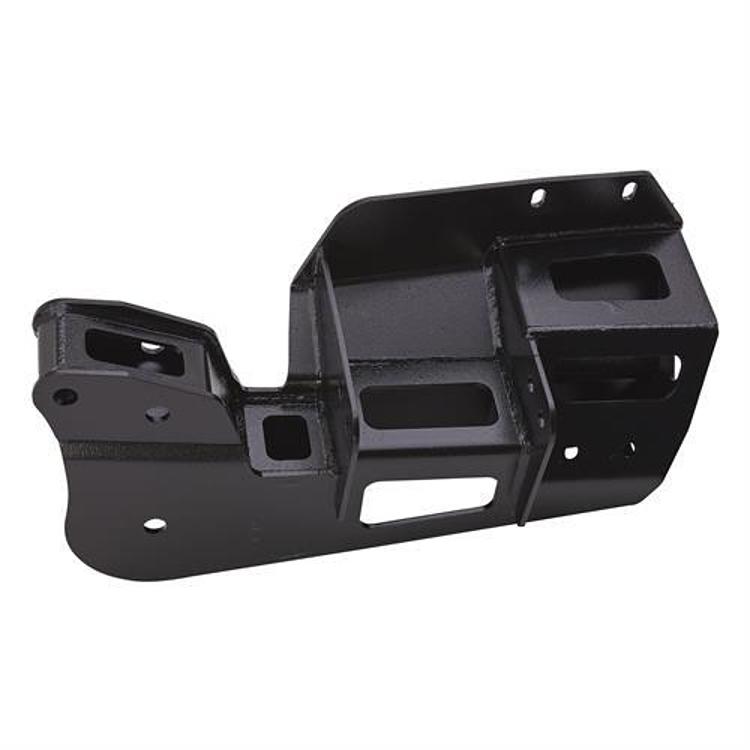

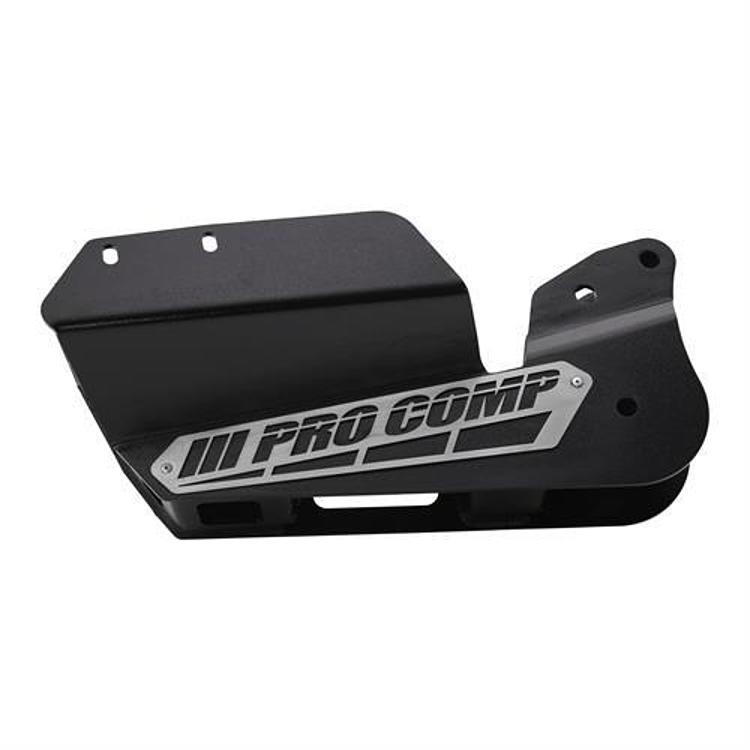

Precision laser cut radius arm drop brackets correct the steering geometry and keep the ride comfortable. The rear lift uses lift blocks and U-bolts, and the kit is a coil spring design with a lift height range of 3 to 4.99 inches.
Key features
- 4-inch lift height from a Stage 1 kit
- ES9000 front and rear shocks
- Precision laser cut radius arm drop brackets
- Steering geometry correction
- Rear lift with blocks and U-bolts
- It is made for 4WD diesel models.
Diesel drivetrain notes
Diesel Super Duty trucks carry heavier front and rear axle loads than gas versions, so the coil springs, shocks and drop brackets all see more work over time. Coil spring lifts keep the factory spring seats and rely on the new hardware to carry the change in height, which makes the mounting points worth checking after the first drives. The driveline is also affected by any change in ride height, so the angles should be confirmed on the truck as it sits after installation.
Radius arm drop brackets change the position of the axle, so bushings and bolts on the arms should be inspected at routine service. Check the brake lines and any cables for stretch once the truck is raised. Over time, shock mounts and bump stops are worth a quick look during tire rotation, particularly after towing or heavy use.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4201B |
| UPC | 70000792319 |
| Lift height | 4 inch (lift height range 3 to 4.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Coil spring kit |

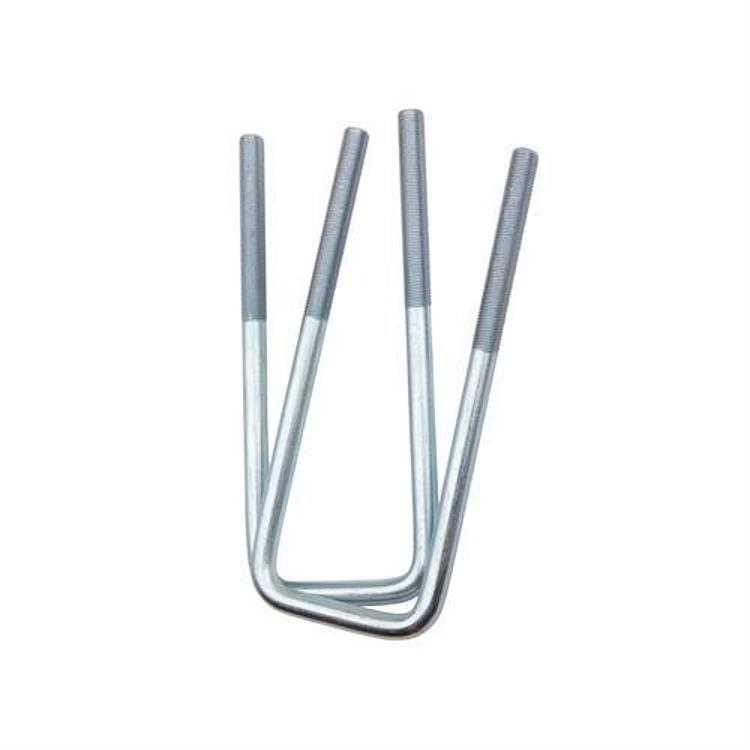

| Rear lift | Lift blocks and U-bolts |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Applies to | 4WD diesel models |
Vehicle fitment

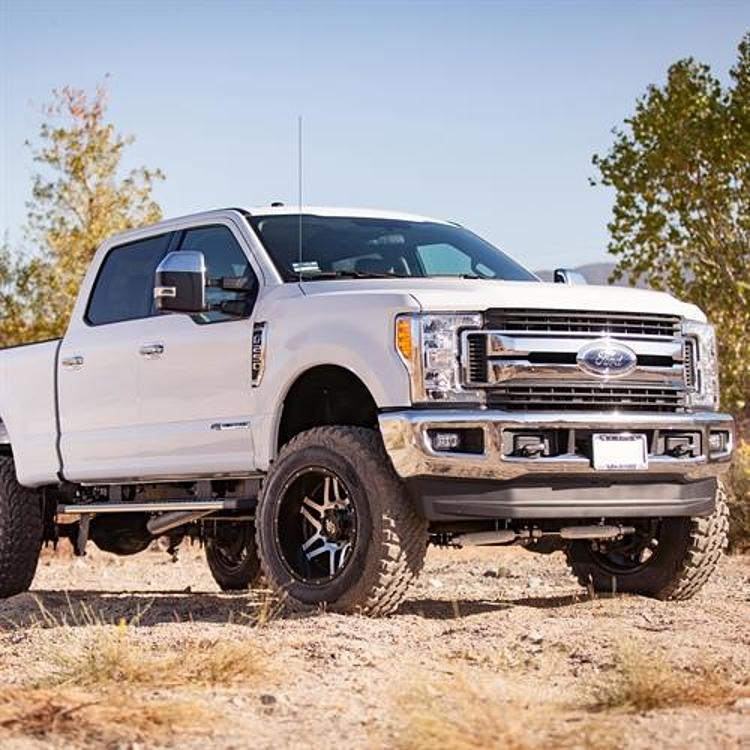

It fits the 2017–2018 Ford F-250 Super Duty and F-350 Super Duty in the King Ranch, Lariat, Limited, Platinum, XL and XLT versions.
Only the 2017 and 2018 model years are on the list, so the 2016 and earlier trucks and the 2019 and later generation are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arm drop brackets change the steering geometry, so have the alignment checked after the install, and confirm the driveline angles on a 4WD diesel truck at the new height.
What’s included

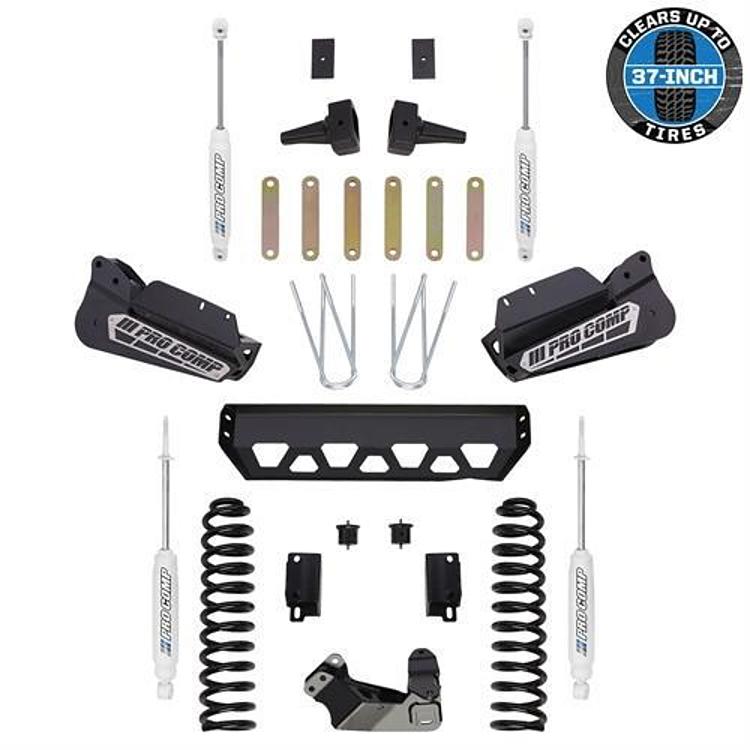

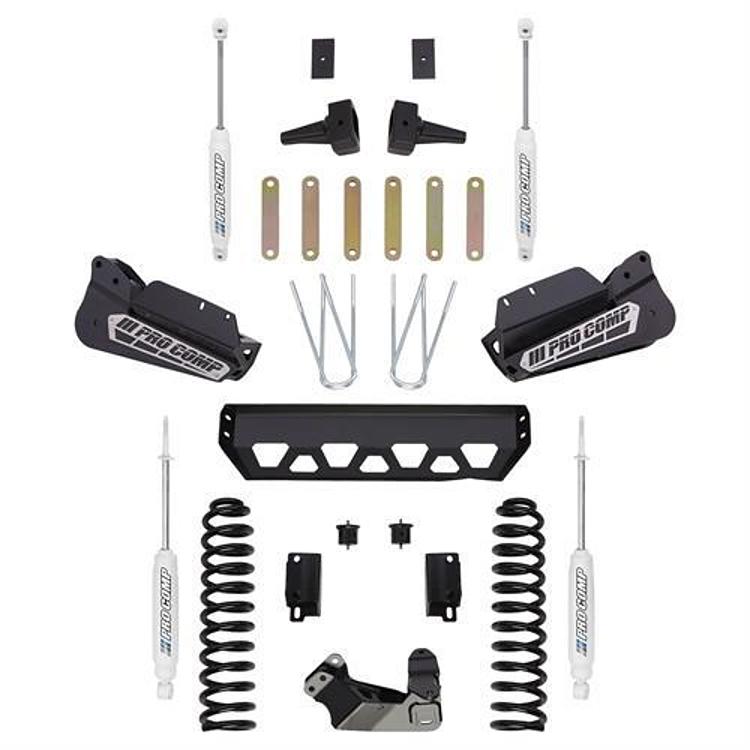

The kit includes the coil spring components, precision laser cut radius arm drop brackets, the block and U-bolt rear lift, and ES9000 front and rear shocks.
