Pro Comp 6 Inch Stage II Lift Kit with ES9000 Shocks – K2065B

Pro Comp Suspension

Shop Dodge Ram 3500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6 inch Stage II lift kit for 2003–2005 Dodge Ram 2500 and 3500
  • Coil spring and short arm front, block and U-bolt rear
  • ES9000 shocks included
  • Includes pitman arm and brake line extension brackets

Description

Overview

The Pro Comp K2065B is a 6 inch Stage II lift kit with ES9000 shocks for the 2003-2005 Dodge Ram 2500 and Ram 3500.

The kit is a coil spring and short arm suspension. The front is lifted with coil springs and upper and lower control arms, and the rear with lift blocks and U-bolts. It includes front sway bar links, bump stop extensions, a pitman arm for steering correction and brake line extension brackets. Its lift height range is 5 to 6.99 inches.

The K2065B is a complete lift system rather than a single component. It pairs a front lift on coil springs and upper and lower control arms with a rear lift using blocks and a U-bolt kit, plus parts for steering, braking and the sway bar.

The kit is rated at 6 inches of lift. Catalog number EXPK2065B and UPC 614901122824.

Key features

  • 6 inch lift, with a lift height range of 5 to 6.99 inches
  • Front lift: coil springs and upper and lower control arms
  • Rear lift: block and U-bolt kit
  • Front sway bar links
  • Bump stop extensions
  • Pitman arm for steering correction
  • Brake line extension brackets
  • ES9000 shocks included

Full lift kit considerations

A full lift kit changes steering, braking and sway control, so the parts in this kit work as a system. Front control arms and coil springs change the suspension angles, while rear blocks and U-bolts change the axle position. Bump stop extensions and sway bar links help control travel and body roll once the truck is raised. Professional installation helps ensure every step is done correctly.

Before driving, plan for an alignment, a check of the brake lines and the driveline, and a torque recheck of all fasteners after the first drive. Look at the shock mounts and bushings for movement, and confirm the steering moves freely from lock to lock. Local rules on lift height and lighting may also apply, so check them before the truck is used on public roads.

Specifications

Brand Pro Comp Suspension
Part number K2065B
Catalog number EXPK2065B
UPC 614901122824
Part type Suspension lift kit
Suspension type Coil spring and short arm
Lift height 6 inches
Lift height range 5 to 6.99 inches
Front lift Coil springs, upper and lower control arms
Rear lift method Lift blocks and U-bolts
Shocks ES9000 shocks included
Steering correction Pitman arm
Fit type Direct fit

Vehicle fitment

The manufacturer fitment list for the Pro Comp K2065B covers the 2003–2005 Dodge Ram 2500 and 2003–2005 Dodge Ram 3500, in the Laramie, SLT and ST trims.

The list does not include Ram 2500 or 3500 model years before 2003 or after 2005, or the Ram 1500. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A full lift kit alters steering geometry, braking and sway control, so have it fitted by a professional shop. Torque each bolt as specified, retighten after the first drive, and get an alignment. Check the height against local rules for your area.

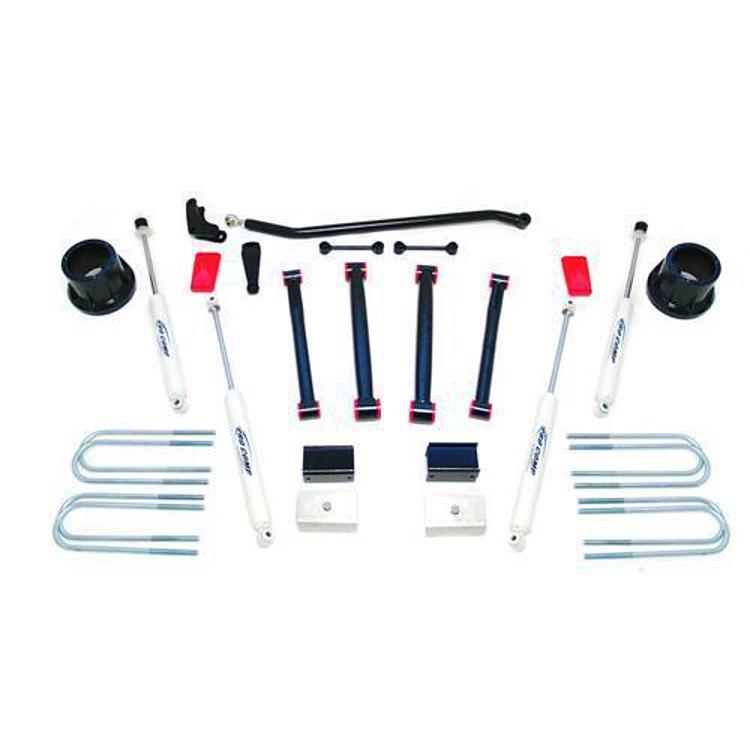

What’s included

Front lift components, rear lift blocks and U-bolts, front sway bar links, bump stop extensions, a pitman arm, brake line extension brackets and ES9000 shocks.

SKU: EXPK2065B Category:

Specification

Shipping weight 208.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Dodge Ram 25002003–2005Laramie, SLT, ST
Dodge Ram 35002003–2005Laramie, SLT, ST

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which trucks does the Pro Comp K2065B fit?

The K2065B fits 2003-2005 Dodge Ram 2500 and Ram 3500 trucks in the Laramie, SLT and ST trims. Confirm your year, model and trim before ordering.

How is the Pro Comp K2065B lifted?

The front uses coil springs with upper and lower control arms, and the rear uses lift blocks and a U-bolt kit, for a 6 inch lift.

Does the K2065B include shocks?

Yes. The kit includes ES9000 shocks. Front shocks are Pro Comp ES9000, and the kit provides them with the lift, so check shock lengths against your truck during installation.

What steering and brake parts come with the K2065B?

The kit includes a pitman arm for steering correction, brake line extension brackets, bump stop extensions and front sway bar links. Together they support steering, braking and sway control after the lift.

How do I check lift kit parts after the first drive?

Check torque on all suspension fasteners, look at the U-bolts and shock mounts for movement, and confirm the brake lines have no strain. Get an alignment once the kit has settled, as the new geometry can change tracking.
