Overview

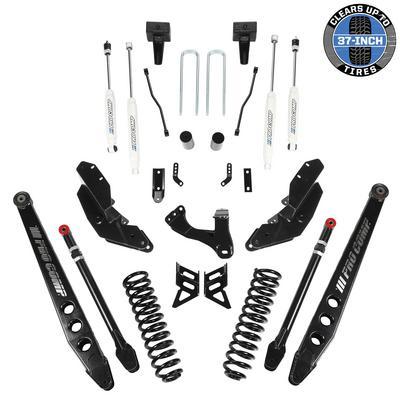

The Pro Comp K4212B is a Stage III 4-link suspension kit with ES9000 shocks for the Ford F-250 Super Duty from 2017 to 2022 and the F-350 Super Duty in the 2017–2018 and 2020–2021 model years. It is rated for up to 4 inches of lift, and the specifications list a lift height range of 4 to 5.5 inches.

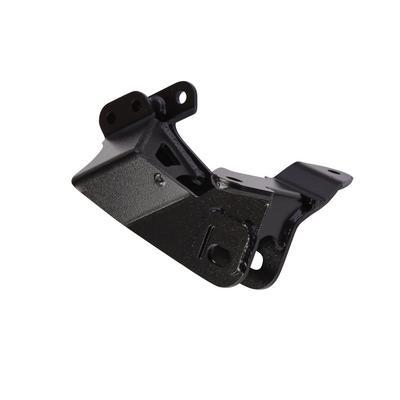

The kit replaces the factory control arm geometry with extended-length control arms in a 4-link arrangement. The brackets hold the roll center in its intended place, increase wheel travel and keep caster and pinion angle change small, which is why the 4-link layout is used.
The front and rear shocks are ES9000 units, and the rear lift uses a block and U-bolt component. The lower arms are custom-stamped steel and clear 37-inch tires at full steer. Read the lift and shock details together when planning the install.
Key features
- Extended-length control arms in 4-link geometry

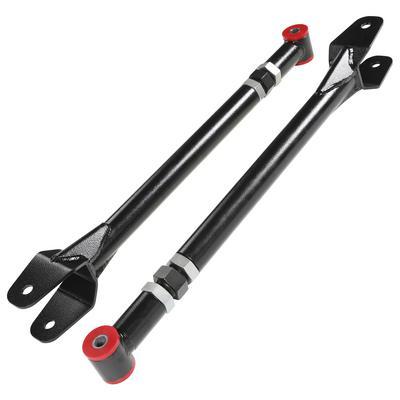

- Upper control arms adjustable on the vehicle for caster
- Crossmember between the 4-link brackets for transfer case protection

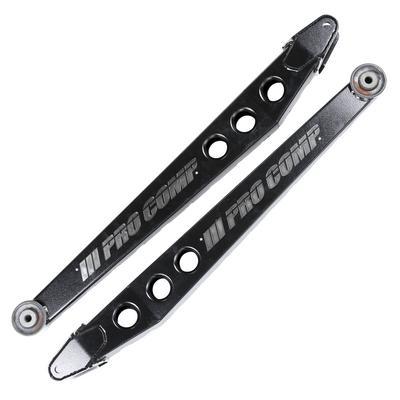

- Custom-stamped steel lower arms

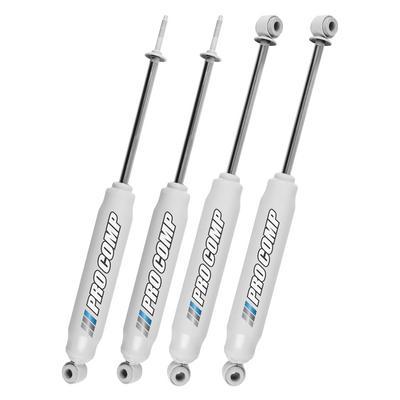

- ES9000 front and rear shocks
Caster and alignment after install
A 4-link system sets axle location with the control arms rather than the factory arms, so caster and pinion angle depend on how the brackets and arms are set. Because the upper arms adjust on the vehicle, the caster setting should be finished during alignment and then rechecked after the first few weeks of driving.
Bushings, bracket bolts and the transfer case crossmember are worth inspecting on a regular schedule, especially on a truck that sees rough trails. Worn bushings can cause wander or uneven tire wear, and a loose bracket can shift the geometry over time. Address any clunks or vibration before they spread to other joints.
- Check bracket bolts for torque after the first drives
- Inspect control arm bushings for cracks or play
- Look for uneven tire wear at the front axle
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4212B |
| Suspension type | 4-link suspension kit |
| Kit | Stage III, 4 inches |
| Shock series | ES9000 |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |

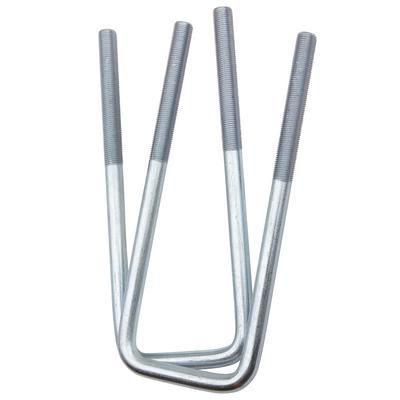

| Rear lift component | Block and U-bolt |
| Lift height range | 4 to 5.5 in |
Vehicle fitment
It fits the 2017–2022 Ford F-250 Super Duty in the King Ranch, Lariat, Limited, Platinum, XL and XLT trims, and the 2017–2018 and 2020–2021 Ford F-350 Super Duty in the same trims.
The F-350 Super Duty for 2019 and the F-450 are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 4-link kit changes the control arm geometry, so it needs a professional alignment and a driveline angle check after installation. The upper control arms are adjusted on the vehicle for caster, so set the caster during the alignment.
What’s included
The kit includes ES9000 front and rear shocks.
Not included: tires and wheels.
