Pro Comp 8 Inch Stage I Lift Kit with ES9000 Shocks – K4156B

Pro Comp Suspension

Shop Ford F-350 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • An 8-inch Stage I kit for the 2008–2010 Ford F-250 and F-350 Super Duty
  • Coil springs with spacers at the front and radius arm brackets
  • Leaf springs and U-bolts at the rear with a Pitman arm correction
  • ES9000 shocks at both ends, plus front track bar bracket and sway bar links

Description

Overview

The Pro Comp K4156B is an 8-inch Stage I lift kit with ES9000 shocks for the 2008–2010 Ford F-250 and F-350 Super Duty. It uses front coil springs with coil spring spacers and radius arm brackets, and the rear uses leaf springs and U-bolts.

The K4156B is the companion part to the K4155B in the same 8-inch Stage I family. The steering is corrected with a Pitman arm, and a front track bar bracket is part of the front components so the track bar can be relocated at the new height.

Key features

  • 8-inch lift height, Stage I
  • Coil springs and coil spring spacers at the front
  • Radius arm brackets
  • Front track bar bracket
  • Pitman arm steering correction
  • Leaf springs and U-bolts at the rear

Working with an 8-inch lift

An 8-inch lift changes the truck’s geometry more than a smaller kit. Drivelines run at steeper angles, and the radius arms and coil spacers move the axle further from the frame. Driveshaft length and U-joint angles should be checked after installation, especially if the truck tows regularly.

Leaf springs and U-bolts at the rear need periodic inspection because the taller stance puts more load on the spring pack during articulation. Keep an eye on spring eye bushings and shackle play. The Pitman arm and track bar bracket carry the steering load at this height, so inspect both on a regular schedule.

  • Check driveline angles after the first drives
  • Inspect U-bolts for tightness at each service
  • Look for bushing wear in the track bar bracket

Specifications

Brand Pro Comp Suspension
Part number K4156B
UPC 614901206883
Lift height 8 inch (lift height range 7 inches and up)
Lift kit stage Stage 1
Suspension type Radius arm or radius arm brackets
Front lift Coil springs and coil spring spacers
Steering correction Pitman arm
Rear lift Leaf springs and U-bolts
Front shocks ES9000
Rear shocks ES9000

Vehicle fitment

The fit covers 2008–2010 Ford F-250 and F-350 Super Duty trucks across XL, XLT, Lariat, King Ranch, FX4, Cabela’s and Harley-Davidson Edition trims.

The list stops at the 2010 model year, so the 2011 Super Duty and later are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Coil spacers, radius arm brackets and a Pitman arm all affect the front geometry, so the alignment and the driveline angles should be checked after installation.

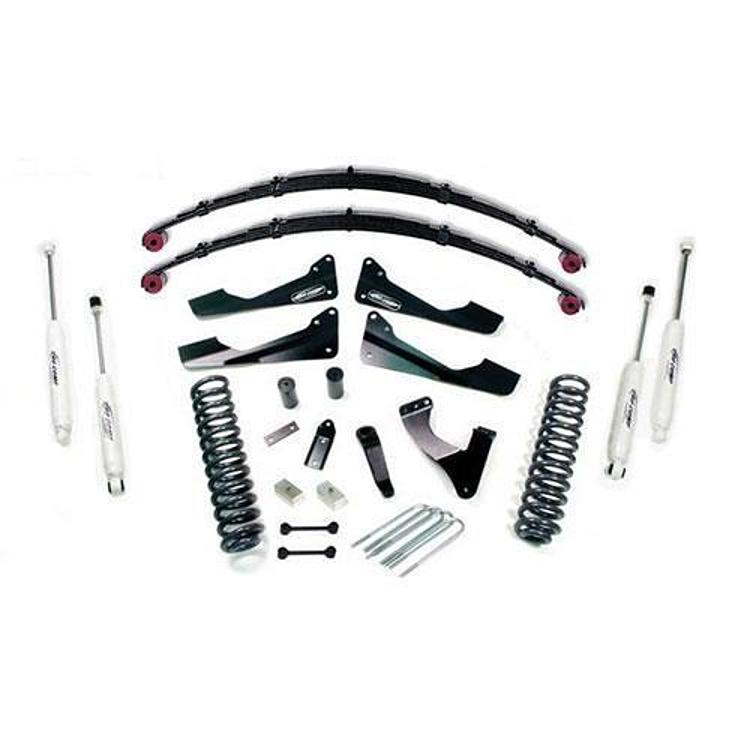

What’s included

The kit includes front coil springs and spacers, radius arm brackets, the front track bar bracket, the Pitman arm steering correction, rear leaf springs and U-bolts, and ES9000 front and rear shocks.

SKU: EXPK4156B Category:

Specification

Shipping weight 401.33 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2008–2010Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT
Ford F-350 Super Duty2008–2010Cabela's, FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the K4156B the same kit as the K4155B?

They share the 8-inch Stage I design and ES9000 shocks at both ends. Compare the two part numbers side by side, looking at the front and rear components, before choosing between them.

Does this 8-inch kit fit a 2010 F-350 Super Duty?

Yes. The kit fits the 2008 through 2010 Ford F-350 Super Duty, so a 2010 F-350 Super Duty falls within that range. Confirm your vehicle's year, model and trim before ordering.

What front track bar bracket comes with it?

The kit includes a front track bar bracket among the front components, which lets the track bar be relocated for the taller suspension.

Do taller lifts need extra brake line length?

Often, yes. Raising the front end stretches the brake hose path, so the hoses should be checked for tension at full suspension travel. Inspect hose ends and fittings after installation to confirm there is no strain.
