Overview

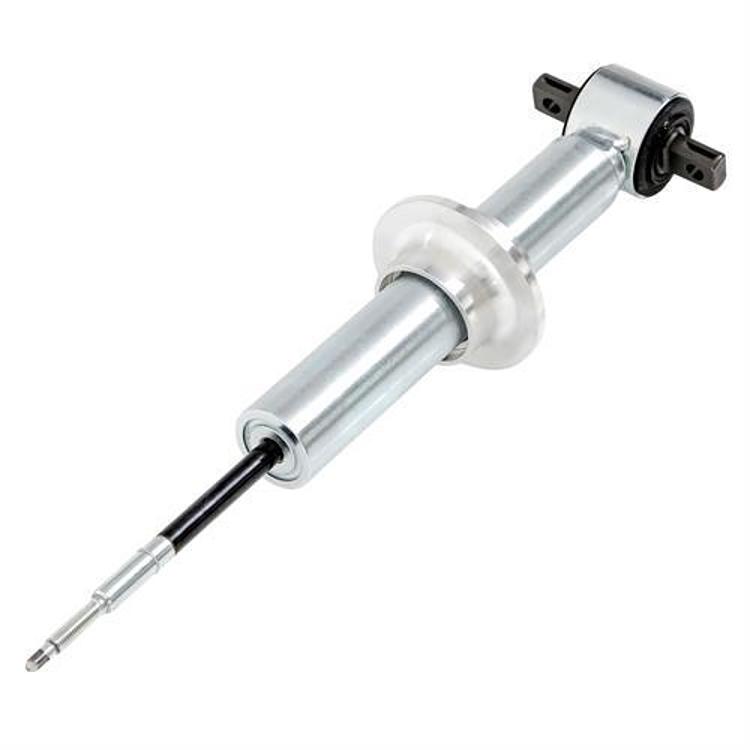

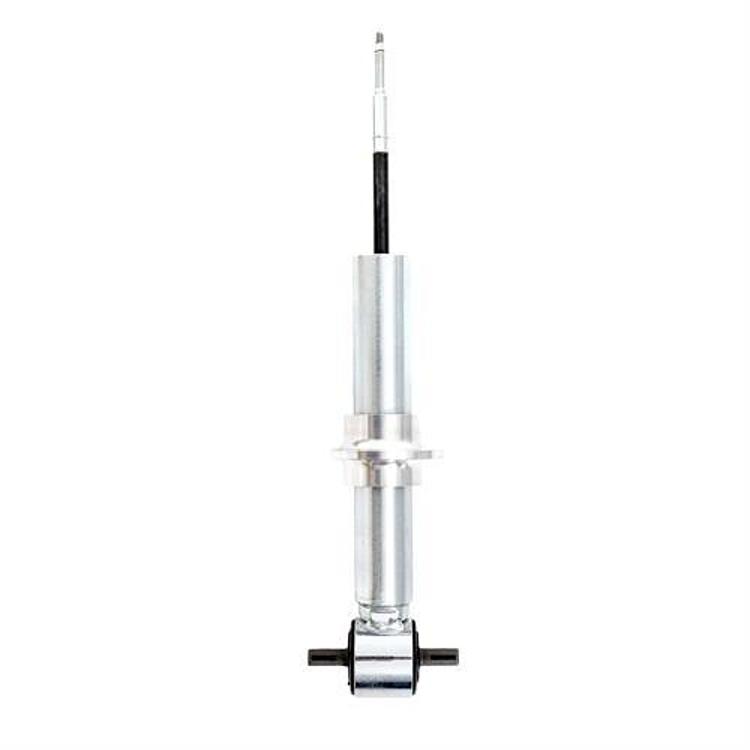

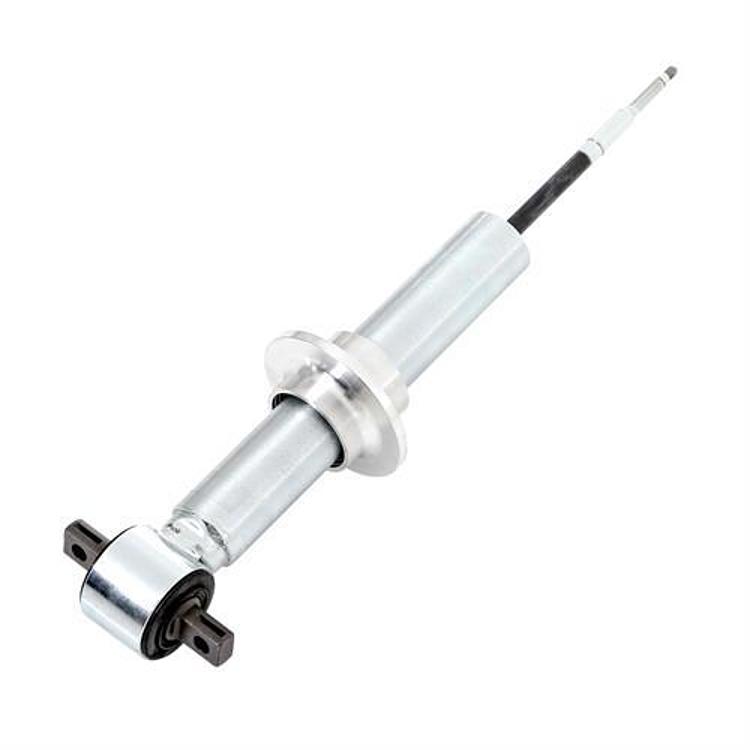

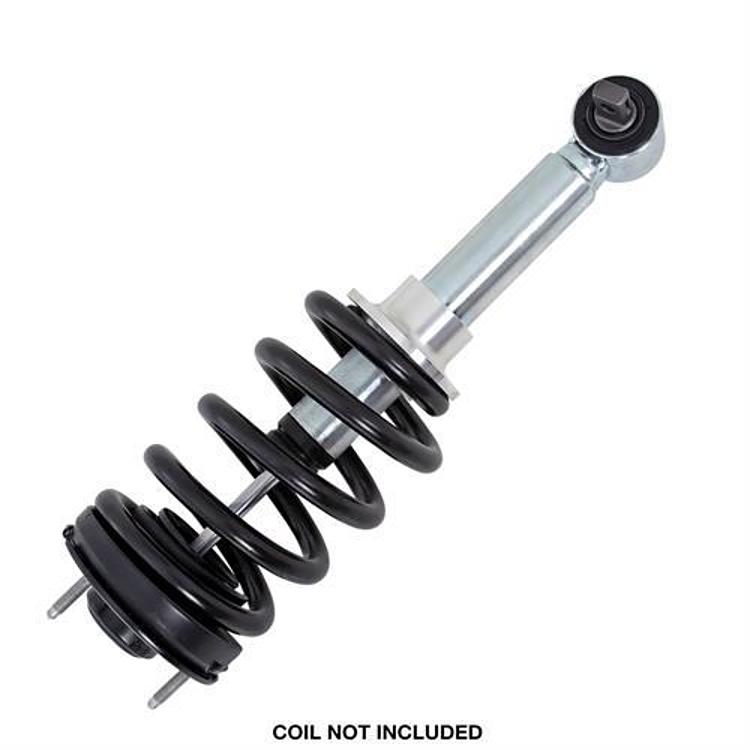

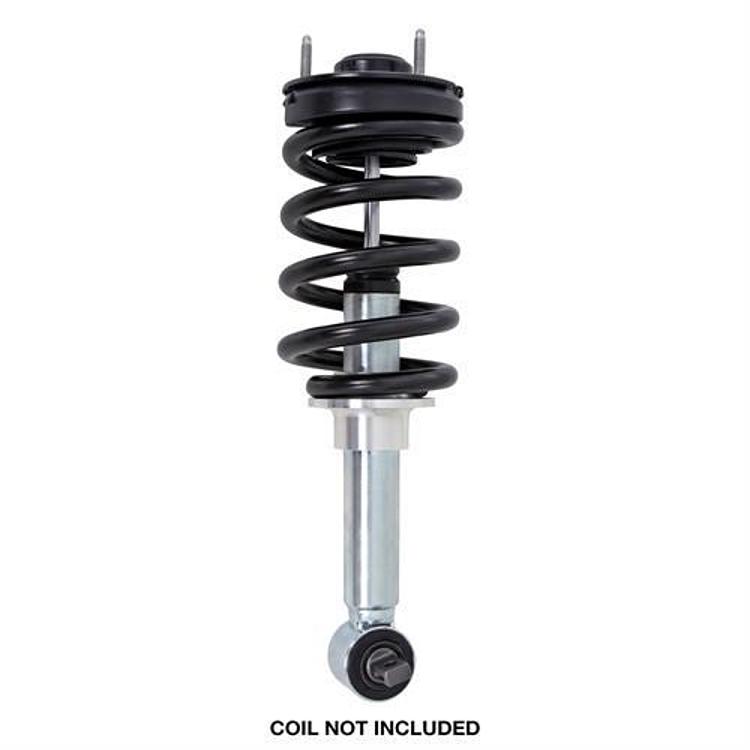

The Pro Comp ZX2078 is a front Pro Runner SS shock absorber for the 2007–2013 Toyota Tundra. It is built for trucks with coil-over, strut-style independent front suspensions and uses the factory upper and lower mounts. The coil spring is not included.

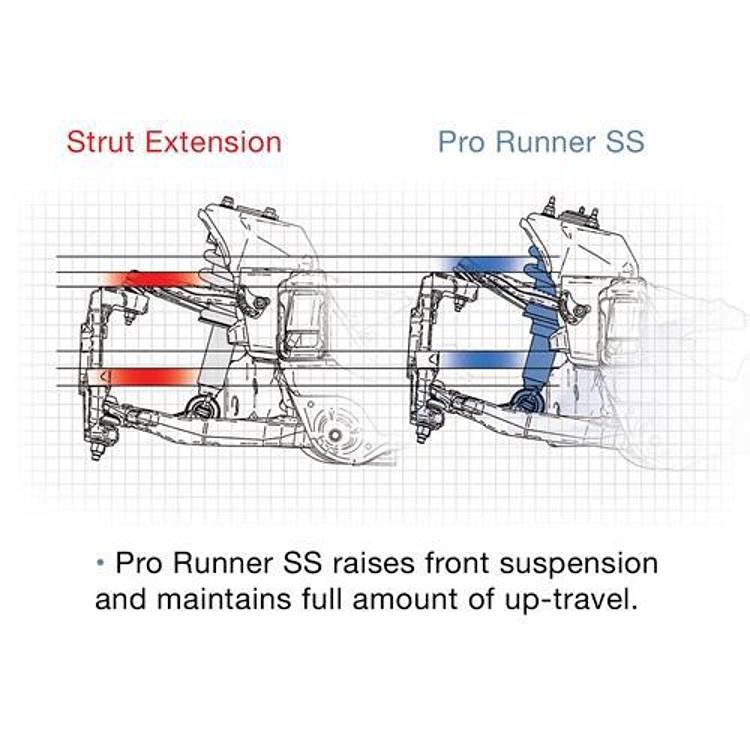

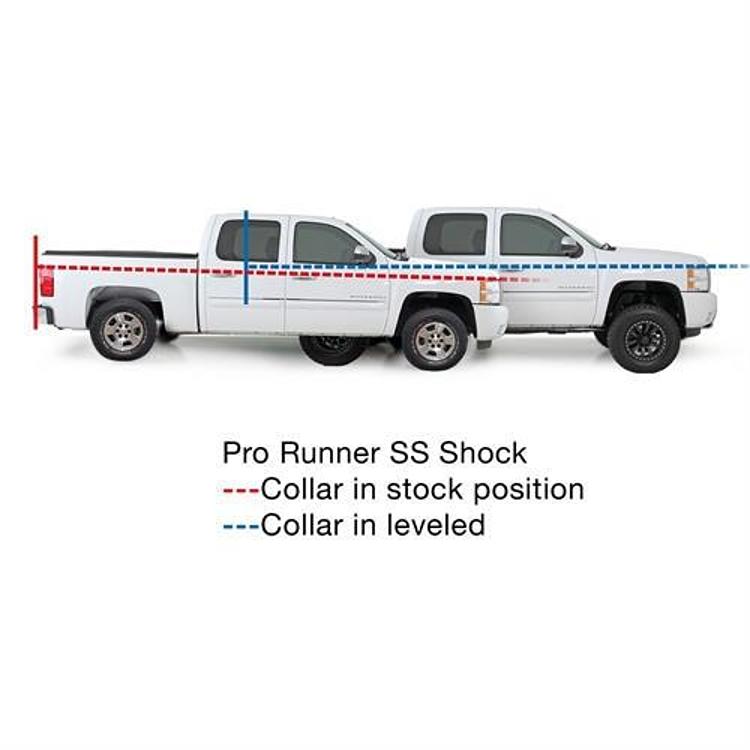

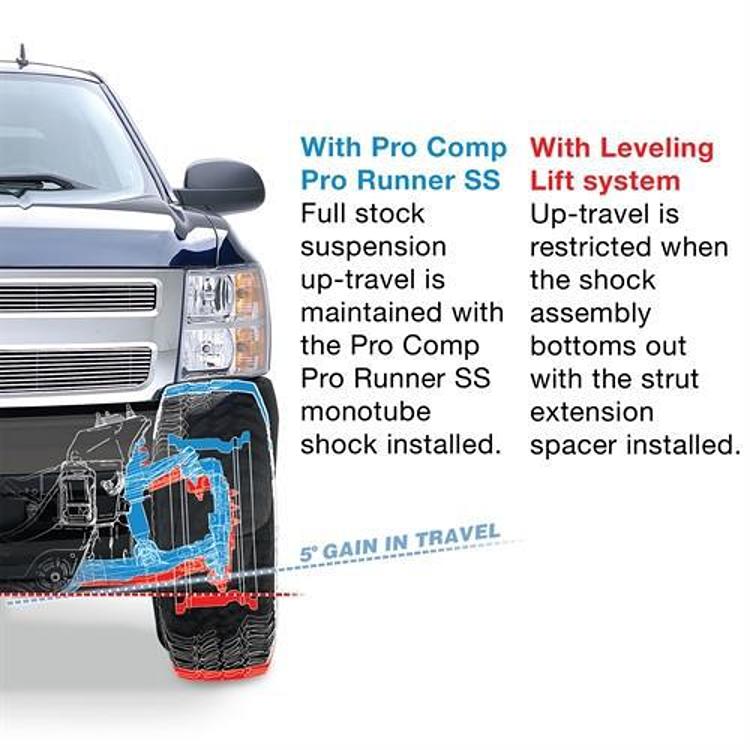

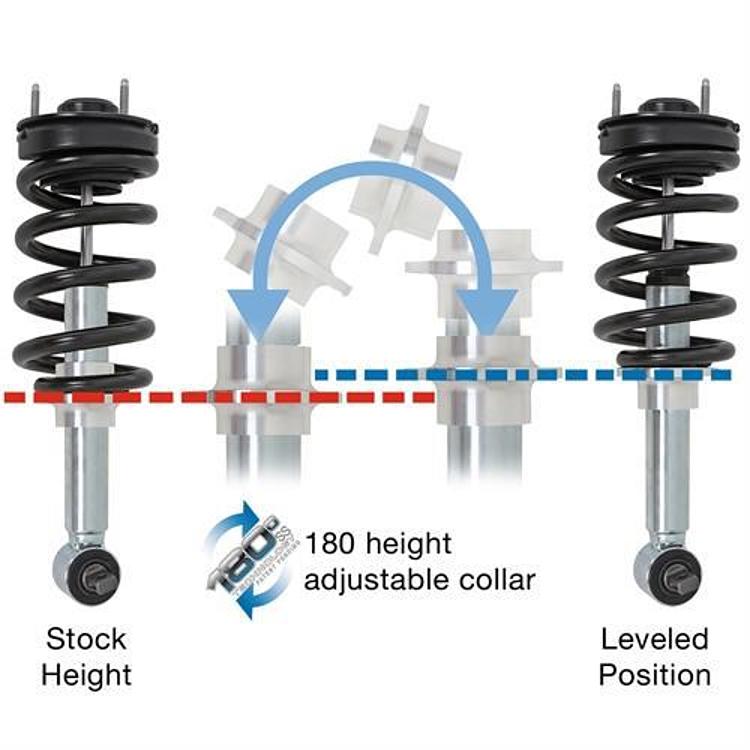

The defining feature is a height-adjustable collar. The collar is patent pending and rotates through 180 degrees, raising the front of the Tundra up to 2.75 inches for larger tires or leaving the truck at factory ride height. The shock is adjustable and uses zinc plated, gas charged construction.
Key features
- Height-adjustable collar, patent pending, rotates 180 degrees
- Raises the front up to 2.75 in for larger tires
- Keeps factory ride height as an option
- Factory upper and lower mounts
- Gas charged body with zinc plated finish
Setting front height
A height-adjustable collar changes how the front suspension sits, which affects tire clearance, steering geometry and how the truck handles on the road. Raising the front can make a larger tire fit under the fender, but it also moves the wheels relative to the fender liner and steering linkage. Set the height in small steps and check each change.
After adjusting, look at tire clearance at full lock and during a slow turn with a load in the bed. Check the boot for twists or pinching, since a boot that binds can wear quickly. Schedule an alignment after any height change, and retighten the collar lock once the truck has been driven a short distance.
- Check tire clearance at full lock
- Inspect the boot for pinching or twisting
- Get an alignment after changing height
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | ZX2078 |
| UPC | 614901082296 |
| Shock series | Pro Runner SS |
| Position | Front |
| Lift height | 0 to 6 in. |
| Extended length | Vehicle specific |
| Collapsed length | Vehicle specific |
| Travel length | Vehicle specific |
| Upper mount | Factory |
| Lower mount | Factory |
| Adjustable | Yes, height-adjustable collar |
| Remote reservoir | No |
| Finish | Zinc plated |
| Boot | Included |
| Lift adjustment | Up to 2.75 in |
Vehicle fitment
It is a direct fit for the 2007–2013 Toyota Tundra.
The list covers the Tundra only, not the 4Runner, Tacoma or FJ Cruiser, which are in other Pro Comp listings. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The collar sets the front height, so measure your ride height before and after adjusting it. Set the height with the collar within its 2.75 inch range and check tire clearance at full lock.

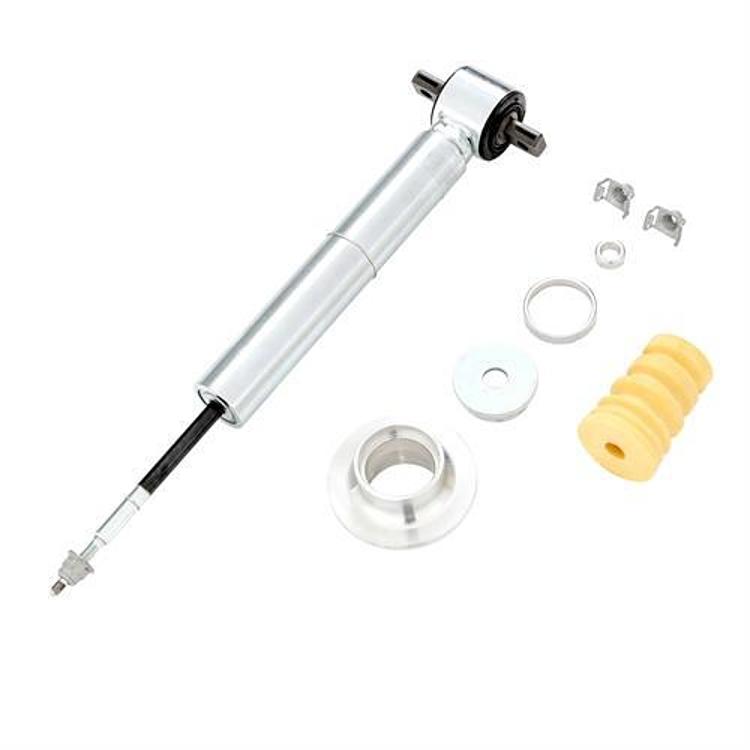

What’s included

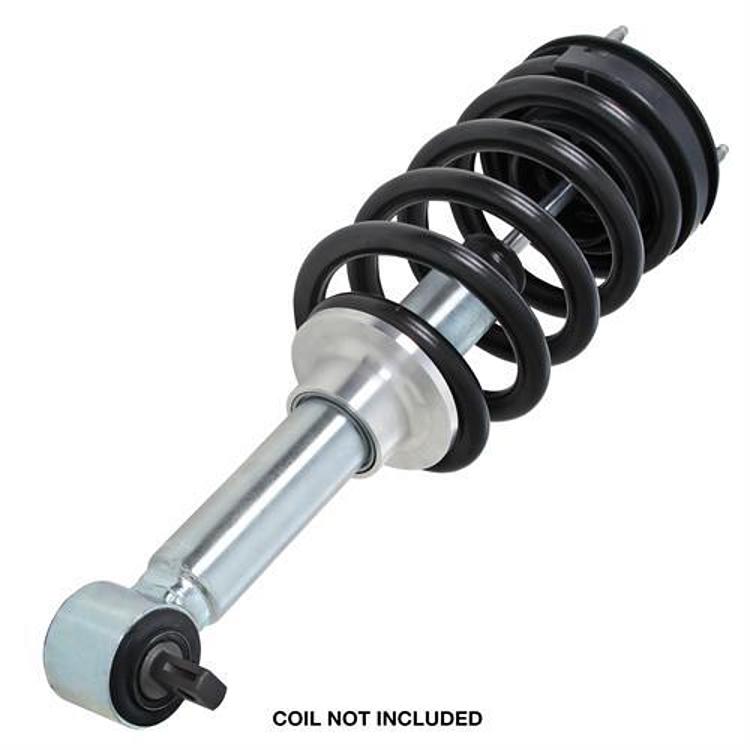

One Pro Runner SS front shock with adjustable collar and boot. The coil spring is not included.
