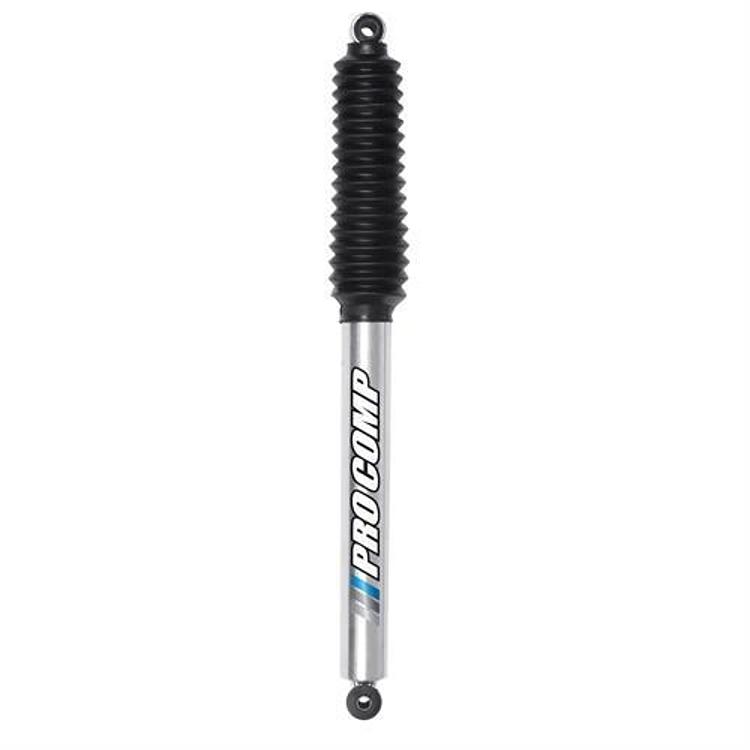

Pro Comp Pro Runner Monotube Shock Absorber – ZX2004

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Runner monotube shock, part number ZX2004, with loop upper and lower mounts
  • Extended 32.40 in., collapsed 19.55 in., travel 12.85 in.
  • Not adjustable; boot included
  • Nitrogen gas charged, zinc finish

Description

Overview

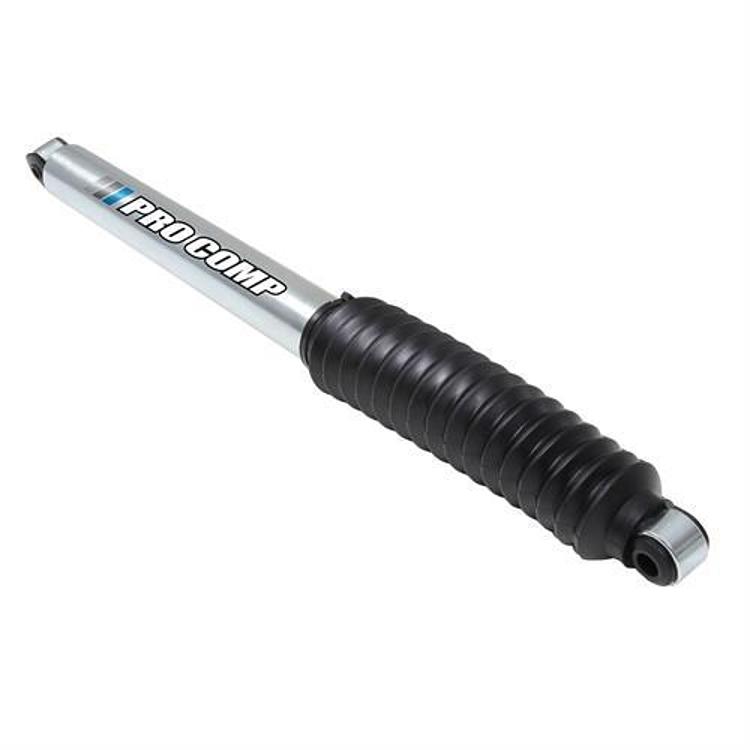

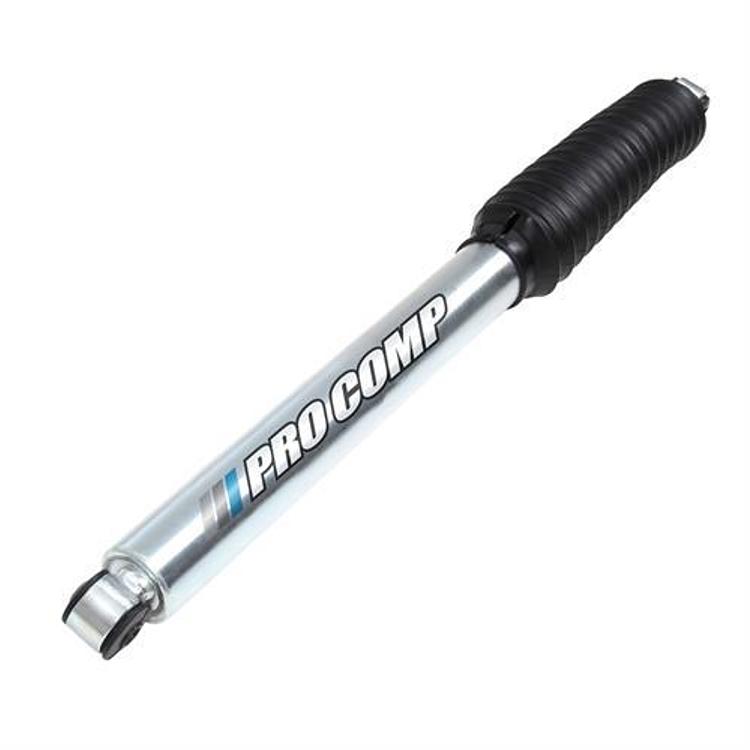

The Pro Comp Pro Runner part ZX2004 is a gas-charged monotube shock absorber with loop-style upper and lower mounts. It measures 32.40 inches extended, 19.55 inches collapsed and 12.85 inches of travel, and the specification entry marks it as not adjustable.

The Pro Runner line is designed for late-model trucks, Jeeps and SUVs. The shock body is brushed, zinc plated and clear coated, and it is nitrogen gas charged. The nitrogen charge is designed to limit cavitation during compression and rebound and to help the shock shed heat, which reduces shock fade.

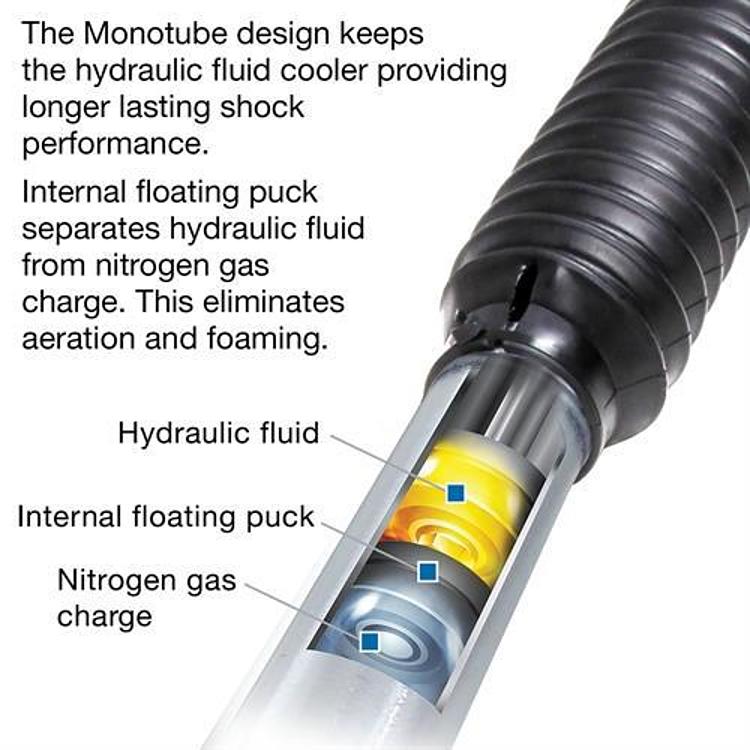

A monotube shock keeps the damping piston and its gas charge in one tube, rather than the two tubes of a twin-tube design. The gas section is pressurized with nitrogen, which is designed to limit cavitation during compression and rebound. The lengths, mounts and fit details for part ZX2004 are set out below.

Key features

  • Monotube body with a nitrogen gas charge
  • Multi-stage valving tuned for the application

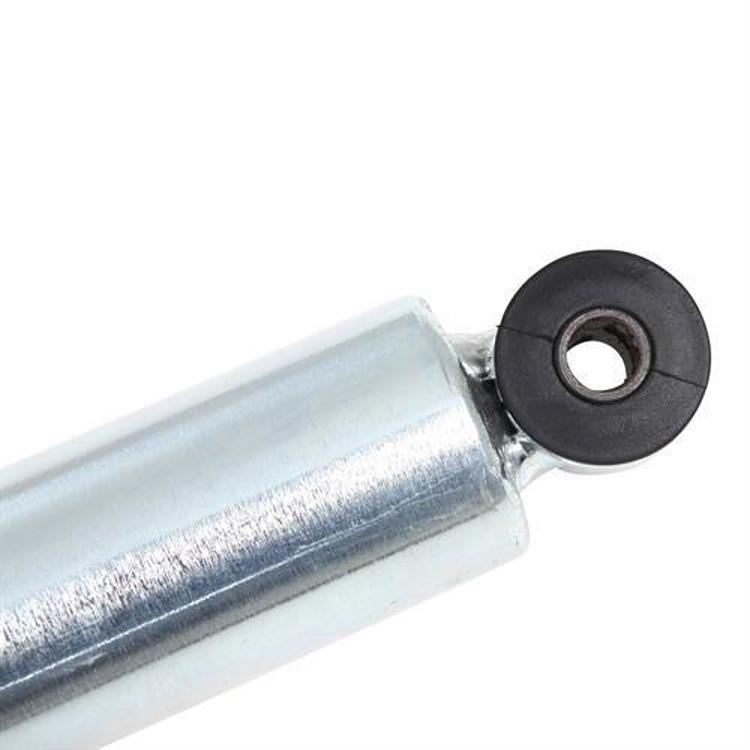

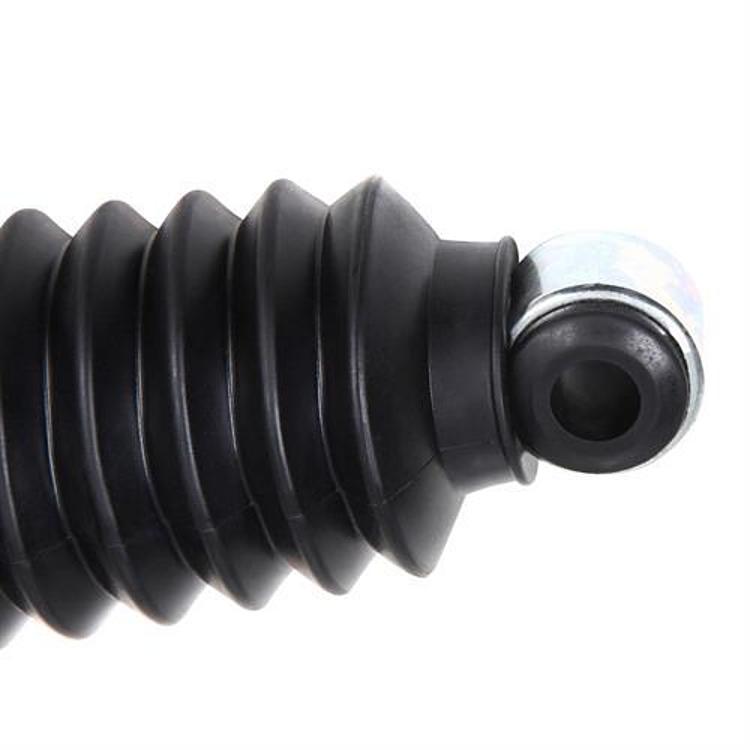

  • Loop-style upper and lower mounts
  • Zinc plated, clear-coated finish
  • Boot included

Monotube shock basics

A monotube body is sealed under pressure, and the gas section keeps the oil from foaming as the piston moves. That steadier pressure helps the damper respond the same way on a long grade as it does on a short bump. Because the piston and gas share one tube, the body is also less prone to losing damping when it gets hot, which is why these units are common on trucks that see steady highway use and trail work.

Choosing a replacement means matching the length and mount style first, then considering how the truck is used. A shock that is too short can bottom out early, while one that is too long can limit steering and suspension travel. Mounts and bushings wear over time, so they are worth inspecting at the same time as the shock.

  • Measure the old shock extended and collapsed before ordering
  • Look for leaking oil on the body as a sign of wear
  • Replace shocks in pairs for even damping

Specifications

Brand Pro Comp Suspension
Part number ZX2004
UPC 614901024036
Shock series Pro Runner
Extended length 32.40 in.
Collapsed length 19.55 in.
Travel 12.85 in.
Upper and lower mounts Loop
Adjustable No
Remote reservoir No
Gas charged Yes, nitrogen
Finish Zinc plated, clear coated
Boot included Yes

Vehicle fitment

Confirm fit for the year, model and trim of your vehicle before ordering, and check the loop mounts against the shock being replaced.

Installation notes

Compare the 32.40 in. extended and 19.55 in. collapsed lengths with the shock being replaced, and confirm that the loop mounts suit your vehicle.

What’s included

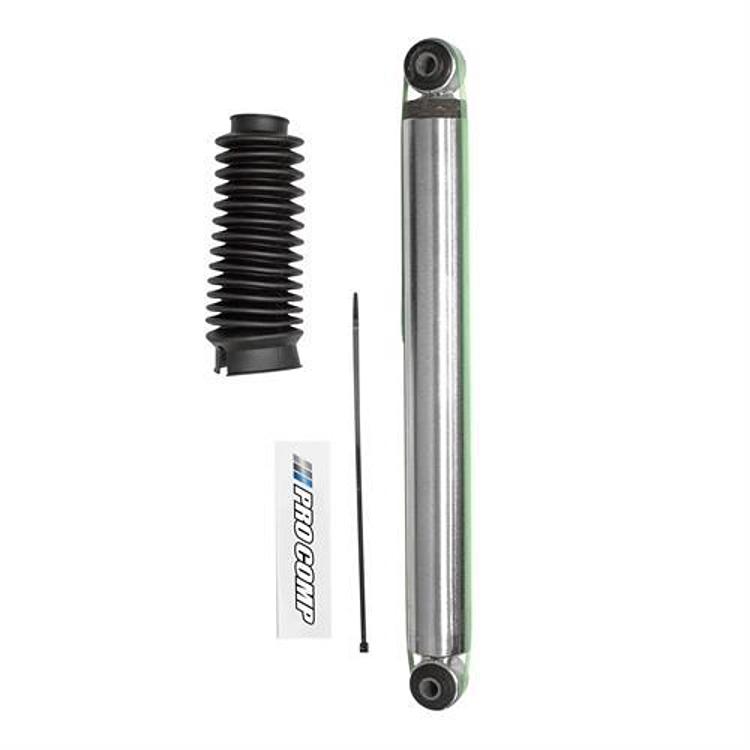

One zinc-finished monotube shock, with a boot.

SKU: EXPZX2004 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 25.00 × 3.00 × 3.00 in
brands

Questions & Answers

What are the lengths of the Pro Comp ZX2004?

It measures 32.40 in. extended, 19.55 in. collapsed and 12.85 in. of travel. These are the figures given in the specification entry for part ZX2004.

Is the ZX2004 adjustable?

No. The specification entry marks the ZX2004 as not adjustable. It has loop-style upper and lower mounts and a zinc finish.

Does the ZX2004 come with a boot?

Yes. The shock includes a boot. It is nitrogen gas charged in a monotube body, which Pro Comp says helps reduce cavitation.

Do the shock mounts need inspection when replacing this shock?

Yes. Inspect the loop mounts, bushings and hardware for cracking or looseness before fitting. Worn mounts can change how the shock loads and shorten its service life.
