Overview

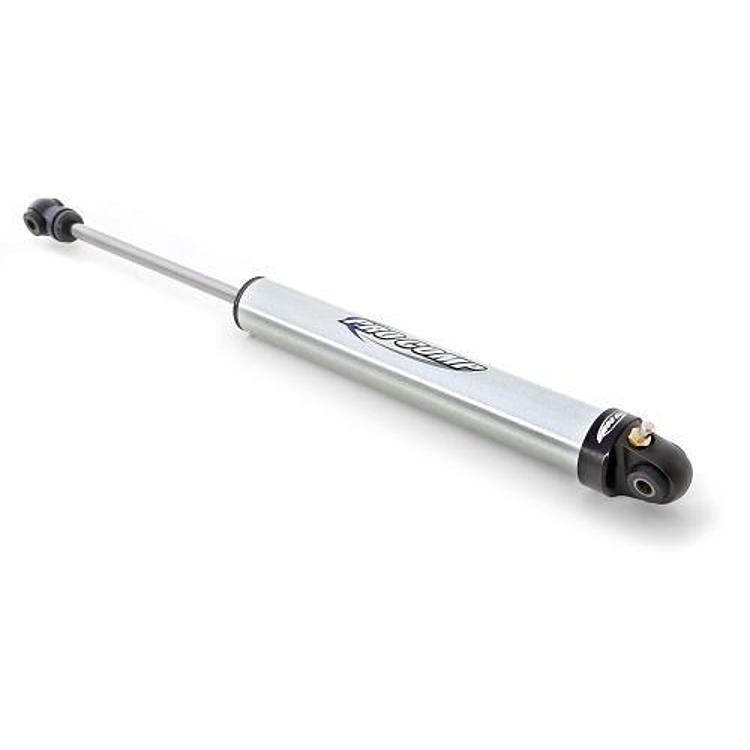

The Pro Comp ZX3023 is a rear Black Series 2.0 smooth shock absorber for the 2007–2014 Ford F-150, designed for 0 to 1.5 inches of lift. It is one of the rear shocks Pro Comp sells to pair with its Pro Runner 2.0C front coilovers, and it is sold individually.
The shock is a nitrogen gas charged monotube with a clear coated zinc finish. The nitrogen charge reduces cavitation during compression and rebound, and the design dissipates heat more efficiently than a conventional twin tube hydraulic shock. Each unit is hand assembled and tuned for the application it is sold for.

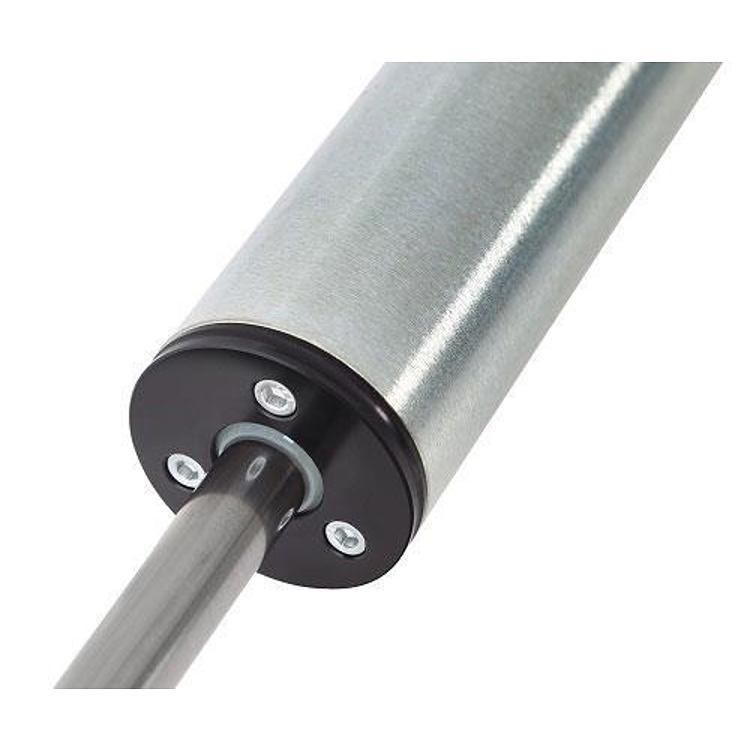

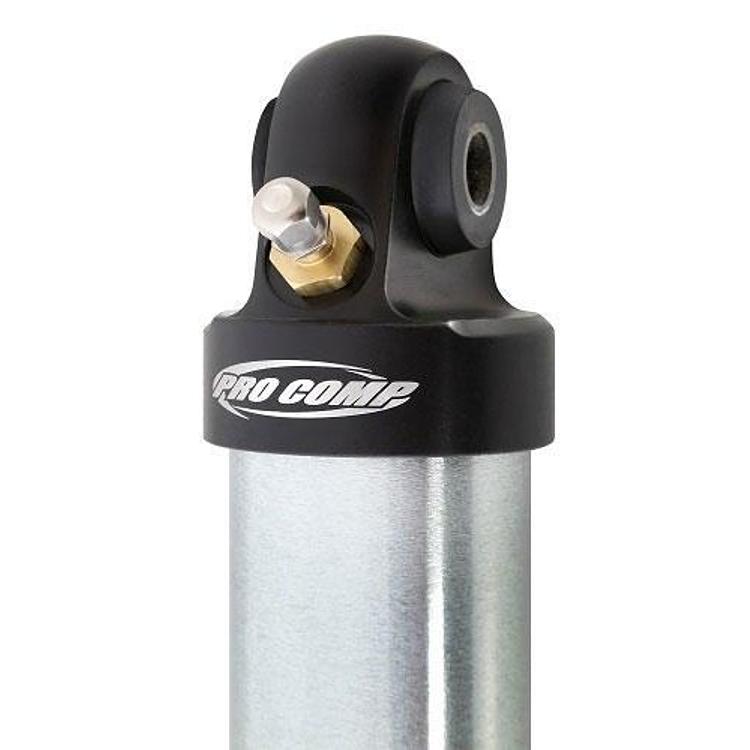

The 2 inch diameter body is zinc plated and capped with black anodized ends. Pro Comp says Viton seals guard against leaks.
Key features
- Rear position, direct fit
- Nitrogen gas charged monotube
- Designed for 0 to 1.5 inches of lift
- Viton seals
- Clear coated zinc finish with black anodized ends
Rear shock replacement
Rear shocks on a half-ton pickup absorb the motion of the axle as the bed loads and unloads, and they help keep the tires planted over bumps. A shock that has lost damping can allow the rear to bounce, which is most noticeable on rough roads. Replacing a worn unit restores control without changing the overall suspension design.
Before installing a new rear shock, inspect the bushings and mounting hardware. Worn bushings can feel like a bad shock and can make a new unit noisy. Keep the shaft clean and free of dents, since damage there can quickly wear the seals. Shocks on the same axle are usually changed as a matched set.
- Inspect bushings before reinstalling
- Check mounting hardware for wear
- Keep the shaft clean and undamaged
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | ZX3023 |
| UPC | 614901140644 |
| Shock series | 2.0 Black Series |
| Position | Rear |
| Lift height | 0 to 1.5 in. |
| Body diameter | 2 in |
| Charge | Nitrogen, gas charged |
| Design | Monotube, smooth |
| Finish | Clear coated zinc |
| Sold as | Individually |
Vehicle fitment
It is a direct fit for the 2007–2014 Ford F-150, in the rear position at 0 to 1.5 inches of lift. It fits the FX4, Harley-Davidson Edition, King Ranch, Lariat, Limited, Platinum, STX, XL and XLT models.
The 2015 and later F-150 are not included in this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear Black Series 2.0 smooth shock, sold individually.
