Overview

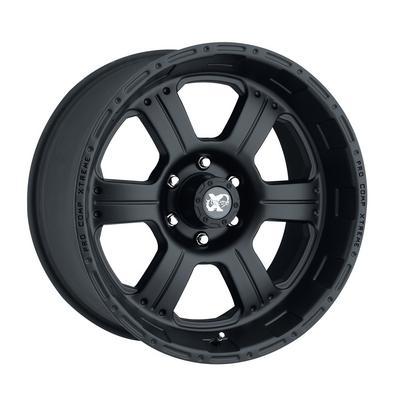

The Pro Comp 89 Series Kore in 17×8 inches is a cast aluminum spoke wheel in flat black with a 6 on 4.5 bolt pattern. Part number PXA7089-7868 identifies this version, which Pro Comp Alloy Wheels offers in its 89 Series for trucks and SUVs that need a deep-dish, high-offset clearance design.
The -12 offset places the mounting face behind the centerline on the brake side of the rim, which matters when checking inner fender and suspension clearance. The 4 backspacing measures how far the back of the wheel reaches behind the mounting face, so it sets how much room the wheel needs toward the brake and axle side. The wheel is a low-pressure cast aluminum design.
Key features
- Cast aluminum spoke wheel in a flat black finish
- 17 inch diameter with an 8 inch width
- 6 on 4.5 bolt pattern
- Negative offset of -12 for a wheel that sits farther out
- 4 inch backspacing listed
- 83 center bore
Working with a negative offset
A negative offset pushes the wheel outward, so the tire and wheel sit farther from the brake and suspension side of the hub. That position can make fender clearance tighter at full steering lock and under body roll. It also changes how the tire loads the wheel bearings and axle, which is why the backspacing matters when you check room behind the wheel.
Many owners ask whether a wheel needs a spacer after a change in offset. A spacer moves the wheel out further and adds load on the studs, so it should be used only when clearance requires it, and longer studs may be needed. Inspect the bolt holes and studs for wear each time the wheel comes off.
- Measure clearance at full lock and full compression
- Inspect studs and bolt holes for wear
- Re-check torque after the first drive
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7089-7868 |
| Series | 89 Series Kore |
| Construction | Aluminum |
| Style | Spoke |
| Finish | Flat black |
| Diameter | 17 inches |
| Width | 8 inches |
| Bolt pattern | 6 on 4.5 |
| Center bore | 83 |
| Offset | -12 |
| Backspacing | 4 |
Vehicle fitment
A 6 on 4.5 bolt pattern is a different hub layout from the 5 on 5 and 6 on 5.5 versions in this series, so match the pattern first. Then compare the -12 offset and 4 backspacing with your vehicle’s wheel specifications. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the offset is negative, the wheel sits farther toward the outside of the vehicle than a zero-offset wheel would at the same hub position, which can change how the tire clears fenders and steering components. Test fit with the final tire before a trail trip.
What’s included
One 17×8 aluminum wheel, part number PXA7089-7868. Confirm you have a center cap and lug nuts before mounting.
