Overview

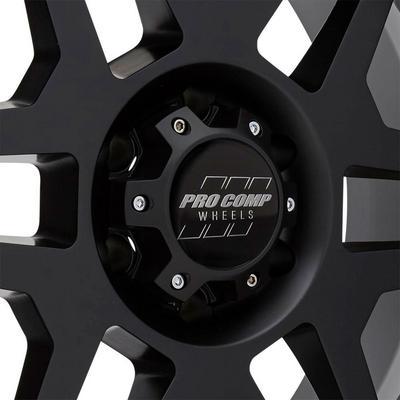

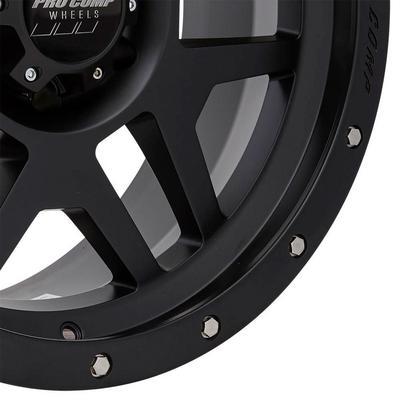

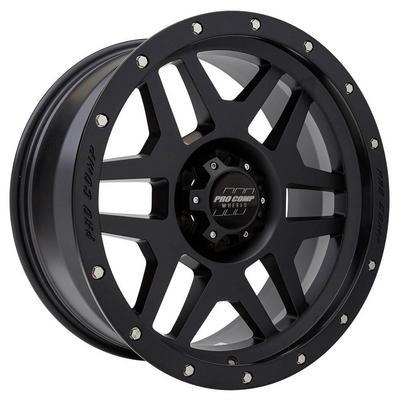

The Pro Comp 41 Series Phaser 18×9 wheel, part number PXA5041-893650, is an 18-inch aluminum split spoke wheel that is 9 inches wide. It has a 6 on 135 bolt pattern and a satin black finish, named in the series as 41 Series Phaser satin black.
The wheel has a 108 center bore, a 0 offset and a backspacing of 5, so its mounting face sits centered on the width. It is low-pressure cast aluminum and a universal fit design.
Key features
- Low-pressure cast aluminum
- 18-inch diameter and 9-inch width
- 6 on 135 bolt pattern
- Center bore 108
- Offset 0 and backspacing 5
- Satin black split spoke finish
Six-lug hubs and spacers
Six-lug hubs with a 135 bolt circle are less common than five-lug layouts, so the bolt pattern, center bore and stud length all need matching. Confirm the stud length will engage the nut properly with the wheel seated. Wheel spacers change the effective hub position and can add stress to studs, so they should be used only when rated for the load.
Clearance on a centered wheel depends on the caliper and suspension design. Test-fit with the tire mounted and turn the steering from side to side. Check the stud threads once the wheel is installed and recheck torque after the first drive.
- Confirm stud length for engagement
- Use spacers only if rated for the load
- Test-fit with the steering turned
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5041-893650 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 5 |
| Style | Split spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 41 Series Phaser |
Vehicle fitment
No vehicle list applies to this 18×9 Phaser. Universal fit means the 6 on 135 pattern and 108 center bore must be confirmed against the hub before ordering, and the 18-inch size should clear the brake caliper.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Six-lug 135 hubs need matching bolt holes and a center bore that seats the wheel, so measure both. Test-fit the wheel with the caliper installed before driving.
The 6 on 135 pattern and 108 center bore define hub fit for this wheel. Its zero offset places the mounting face at the center, so brake caliper and fender clearance are the remaining checks before mounting.
What’s included
Supplied: one 18×9 wheel in satin black. Compare the contents, including center caps and lug nuts, with your installation plan before starting.
