Pro Comp 75 Series Trilogy Race Beadlock Wheel, 17x9 with 6x5.5 Bolt Pattern – Super Machined – 1175-798337

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

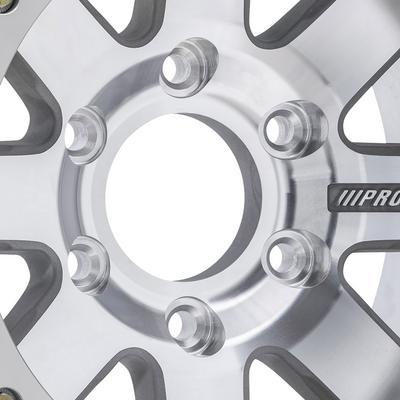

  • 17 x 9 super machined beadlock wheel for a 6 on 5.5 bolt pattern
  • Center bore 108, offset -30, backspacing 3.75
  • Forged aluminum beadlock ring with NORDLOCK washers
  • Grade 8 countersunk bolts

Description

Overview

The Pro Comp PXA1175-798337 is a 17 x 9 inch aluminum beadlock wheel with a super machined finish. It fits a 6 on 5.5 bolt pattern, with a center bore of 108, an offset of -30 and a backspacing of 3.75. A beadlock ring holds the tire bead against the rim, which is useful when the tire is run at low pressure over rough ground.

The -30 offset and 3.75 backspacing place the wheel further outward than the -6 offset version. Check tire and fender clearance with the tire you plan to use. This is a universal-fit wheel, so the vehicle match is up to the buyer.

Key features

  • Super machined face
  • Eight-spoke Trilogy Race design

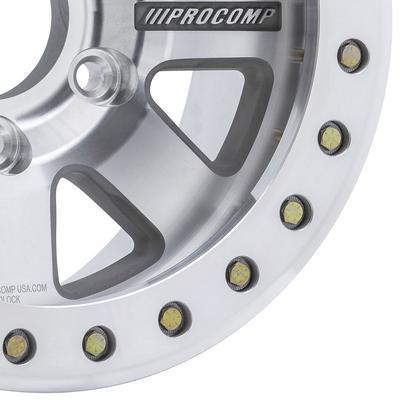

  • Beadlock ring forged from 6061 aluminum
  • Countersunk Grade 8 bolts
  • NORDLOCK washers on the ring hardware
  • 45 degree diamond knurl on the ring
  • Infini-Grip figure eight pattern on the bead area

Offset, clearance and bead care

A -30 offset moves the tire outward compared with a -6 wheel, which changes how the tire sits against the fender and the suspension at full travel. Measure clearance at full lock and at full compression before running the tire off-road.

Beadlock rings are fitted with the tire mounted, so the bead must seat before the ring is installed. A bead that is not seated well can slip under low pressure, so check the seal before each outing.

Wheel bearing load, steering feel and brake clearance can all shift when offset changes, so spacers or a different offset should be considered as part of the whole setup.

  • Check full-lock clearance with the chosen tire
  • Inspect the bead seal before each trail run
  • Confirm brake caliper clearance after mounting

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA1175-798337
Wheel size 17 x 9 inch
Style Trilogy Race beadlock, 75 Series
Finish Super machined (machined)
Construction Aluminum
Bolt pattern 6 on 5.5
Center bore 108
Offset -30
Backspacing 3.75

Vehicle fitment

This is a universal-fit wheel and does not confirm a hub match. Compare the 6 on 5.5 bolt pattern, the 108 center bore and the -30 offset with your vehicle’s wheel specifications.

Check the tire clearance at full lock and at full suspension travel, since the offset changes where the tire sits. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Set the bead with the ring fitted, then check the ring hardware and retorque the bolts with the washers in place. Confirm that the valve stem clears the brake parts before the first trip off-road. The super machined face is the only visible difference from the satin black 6 on 5.5 version, so the same clearance checks apply to both.

What’s included

Beadlock ring hardware, Grade 8 countersunk bolts and NORDLOCK washers come with the wheel. No tire is supplied.

SKU: PXA1175-798337 Categories: ,

Questions & Answers

What finish is the PXA1175-798337?

The finish is super machined, which is the machined face of the 75 Series wheel. It is not the satin black version. Choose the finish you prefer; the bolt pattern and offset decide fit.

Does the PXA1175-798337 fit a 6 on 5.5 truck?

The bolt pattern is 6 on 5.5, with a 108 center bore and a -30 offset. Because the wheel is a universal-fit part, confirm that the hub and center bore match your vehicle before buying.

Is a tire included?

No. The wheel is sold with its beadlock ring hardware and Grade 8 bolts, and no tire is included. Pick a tire that suits the 17 x 9 size and your clearance.

Does a beadlock wheel need special tire handling?

Yes. The bead must be seated with the ring fitted, so use a tire mounting process that handles beadlocks. Check the bead seal and ring bolts before low-pressure running.
