Pro Comp 4 Inch Lift Kit with ES9000 Shocks – K1158B

Pro Comp Suspension

Shop Chevrolet Silverado 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch lift with factory steel knuckles and rear lift blocks
  • Rear ES9000 shocks; factory front shocks reused
  • Brake line extension brackets; maximum tire size 33×12.50 (listed)
  • Fits 2014-2016 Chevrolet Silverado 1500 and GMC Sierra 1500

Description

Overview

The Pro Comp 4 Inch Lift Kit with ES9000 Shocks, part number K1158B, is a 4-inch lift for the 2014-2016 Chevrolet Silverado 1500 and GMC Sierra 1500. The kit is built to work with the factory steel knuckles.

At the rear, the kit uses a block and U-bolt kit with add-a-leaf components, and it includes rear ES9000 shocks. The front shocks are reused from the truck. Brake line extension brackets are included, and shock boots are not included. The lift height range is 3 to 4.99 inches.

Key features

  • 4-inch stage 1 lift

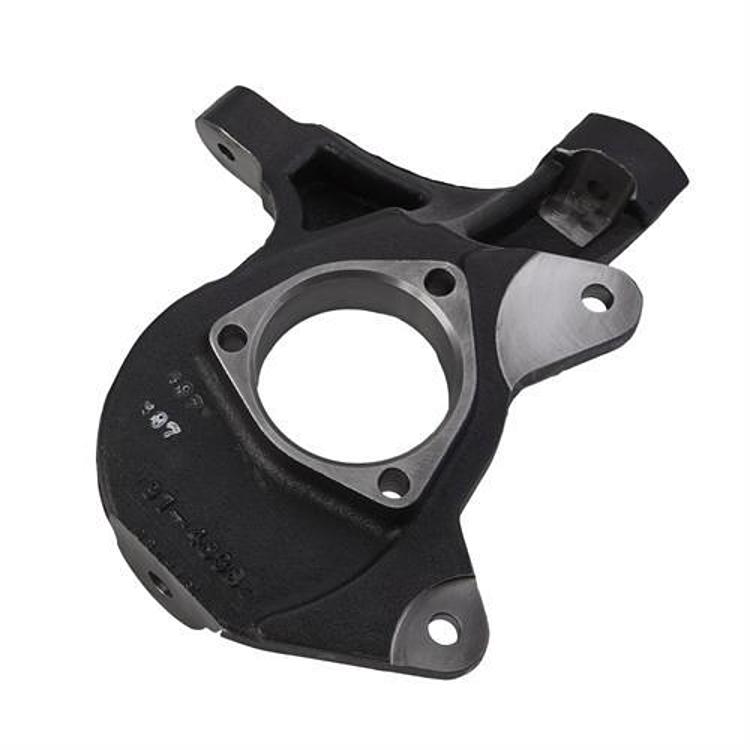

  • Designed for the factory steel OE knuckles
  • Rear block and U-bolt kit with add-a-leafs

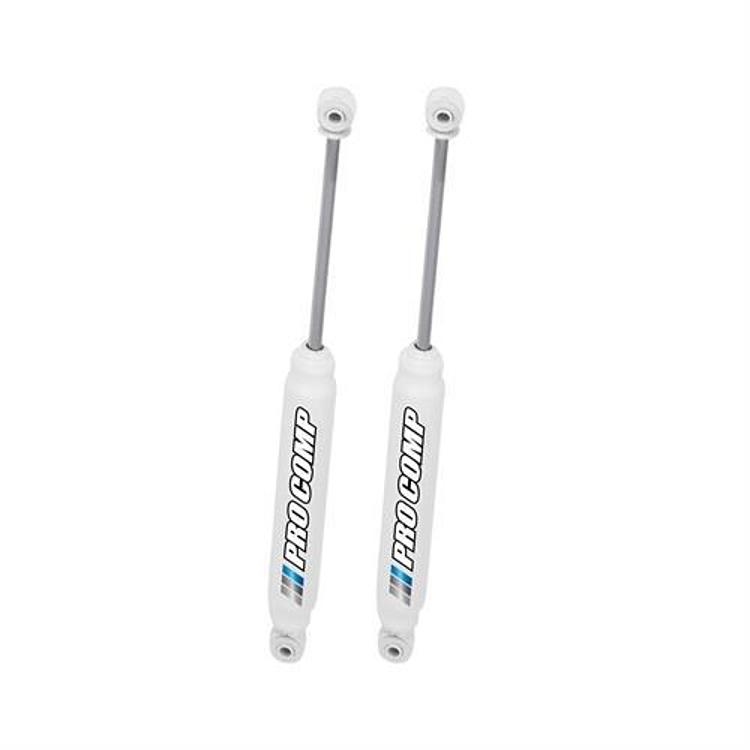

  • Rear ES9000 shocks
  • Front shocks reused from the truck
  • Brake line extension brackets

Driveline and alignment after lifting

Raising the rear with blocks and U-bolts changes the angle of the driveshaft, which can cause vibration at highway speed if the angle grows too large. Measuring the driveline after installation shows whether the pinion and transfer case angles still work together. Brake lines and the emergency brake cable may also need attention, since the extended brackets change their routing slightly.

A lift can also change steering and tire clearance, so check for rubbing at full turns and over bumps. Have the alignment set after the install, and look at the steering components for extra travel. Re-check the U-bolts and shock mounts after the first few drives.

  • Measure driveline angles after install
  • Check brake line routing and length
  • Look for tire rub at full lock

Specifications

Brand Pro Comp Suspension
Part number K1158B
UPC 70000699338
Lift height 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Knuckle
Knuckles Factory steel
Rear lift Block and U-bolt kit with add-a-leafs
Rear shocks ES9000
Front shocks Reuse OEM
Maximum tire size 33×12.50
Fitment Direct fit

Vehicle fitment

It fits the 2014-2016 Chevrolet Silverado 1500 in the Custom, High Country, LS, LT, LTZ, SSV and WT trims, and the 2014-2016 GMC Sierra 1500 in the Base, Denali, SLE and SLT trims.

Trucks from 2013 and earlier and from 2017 on are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because this kit is matched to the factory steel knuckles, confirm the knuckle type on your truck before installing. The rear lift and the 3 to 4.99 inch range will also change driveline angles, so check them after installation.

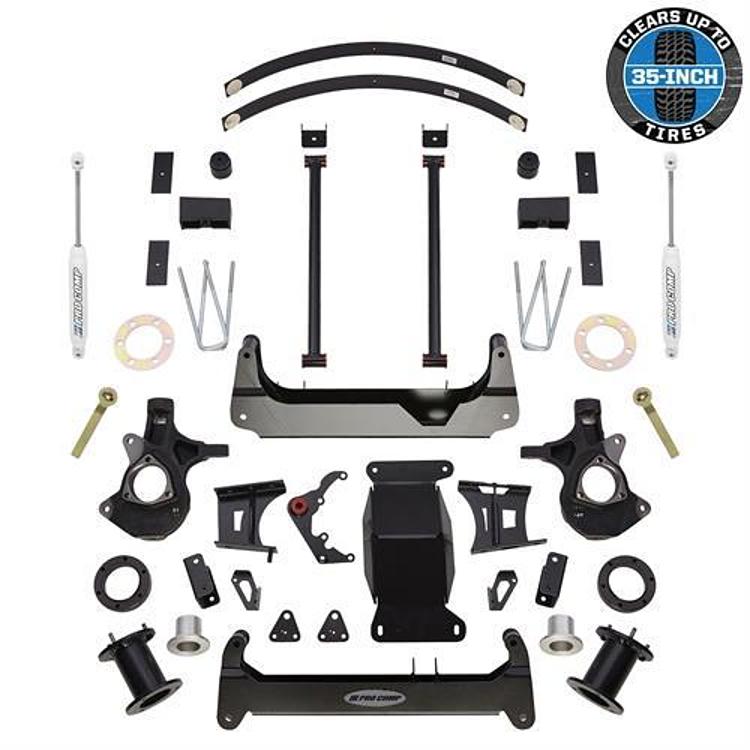

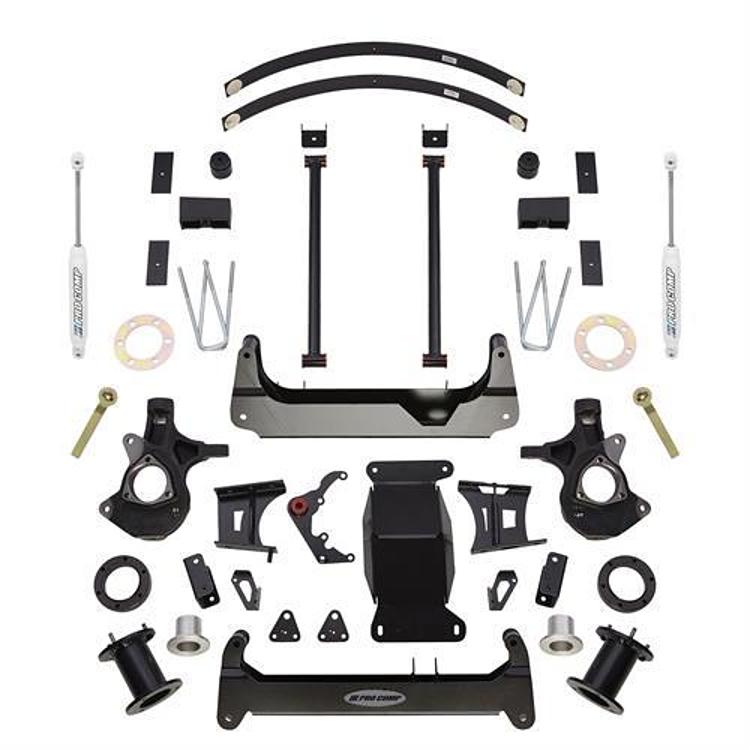

What’s included

The kit includes a block and U-bolt rear kit with add-a-leafs, brake line extension brackets, and ES9000 rear shocks. Shock boots are not included.

SKU: EXPK1158B Category:

Specification

Shipping weight 273.65 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002014–2016Custom, High Country, LS, LT, LTZ, SSV, WT
GMC Sierra 15002014–2016Base, Denali, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K1158B fit a 2015 GMC Sierra 1500?

Yes. The 2014-2016 GMC Sierra 1500 is covered, and 2015 falls within that range. It applies to the Base, Denali, SLE and SLT trims.

Does the K1158B come with front shocks?

The front shocks are reused OEM units from the truck, so no new front shocks come in the kit. The ES9000 shocks are fitted at the rear only.

What tire size does the K1158B allow?

The maximum tire size is 33x12.50 for this kit. Tires larger than 33x12.50 would need clearance checks at full suspension travel before buying.

Is a driveshaft change needed after a 4-inch lift?

It depends on the vehicle and the angle after the lift. A lift can change driveline angles, so measure after installation and check for vibration at highway speed. Address any excess angle before driving far.

How should the ES9000 rear shocks be checked?

Look for oil on the body, a bent shaft or eye, and worn bushings. Check that the shocks clear the brake lines and the frame at full travel after the install.
