Pro Comp 4 Inch Stage I Lift Kit with ES3000 Shocks – K1008

Pro Comp Suspension

Shop GMC K15 Suburban Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage I lift with leaf springs and U-bolts at the front
  • ES3000 front and rear shocks
  • Steering arm correction and brake line extension brackets
  • Fits 1973-1978 Chevrolet and GMC C/K trucks, Blazer and Jimmy models

Description

Overview

The Pro Comp 4 Inch Stage I Lift Kit with ES3000 Shocks, part number K1008, is a 4-inch lift for 1973-1978 Chevrolet and GMC C/K trucks and the Blazer, Jimmy and Suburban versions of those trucks. The front uses leaf springs and U-bolts, and the rear uses a block and U-bolt kit. The kit includes ES3000 shocks front and rear.

Steering correction is handled with a steering arm, and the kit includes brake line extension brackets. The lift height range is 3 to 4.99 inches, and the shocks come with the boots left off.

Key features

  • 4-inch stage I lift
  • Front leaf springs and U-bolts
  • Steering arm steering correction
  • Brake line extension brackets
  • Rear block and U-bolt kit
  • ES3000 front and rear shocks

Steering arm and brake lines

A steering arm correction changes the angle of the front steering linkage, so the tie rod and drag link should be checked for wear before installation. Worn parts can make the new geometry feel loose and speed up tire wear. Replacing worn joints while the front end is apart is often less work than doing it later.

Brake line extension brackets allow the hoses to reach the raised axle without stretching. Look at the hoses after the install and again after the first trail outings, since movement at full suspension travel can rub or pull them tight. Keep the lines clear of the exhaust and suspension components, and check the fluid level after the first few stops.

  • Check tie rod ends and drag link joints before installation
  • Inspect brake hoses for tension at full travel
  • Have the front alignment checked after the work
  • Look for play in steering joints by hand

Specifications

Brand Pro Comp Suspension
Part number K1008
UPC 614901122060
Lift height 4 inches, stage I
Lift height range 3 to 4.99 inches
Front suspension Leaf springs and U-bolts
Steering correction Steering arm
Rear lift Block and U-bolt kit
Shocks ES3000, front and rear (shock boots not included)
Maximum tire size 33×12.5
Fitment Direct fit

Vehicle fitment

The kit fits the 1973-1974 Chevrolet Blazer, the 1973-1976 Chevrolet K10 and K10 Suburban, the 1975-1976 Chevrolet K5 Blazer, the 1973-1976 GMC Jimmy, the 1975-1976 GMC K15 and 1975-1978 GMC K15 Suburban, and the 1973-1974 GMC K15/K1500 pickup and Suburban.

Most 1977-and-later trucks are not on this list; the only 1977-1978 entry is the GMC K15 Suburban. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The leaf spring front end and steering arm change alignment, so have the front alignment checked after the kit is installed.

What’s included

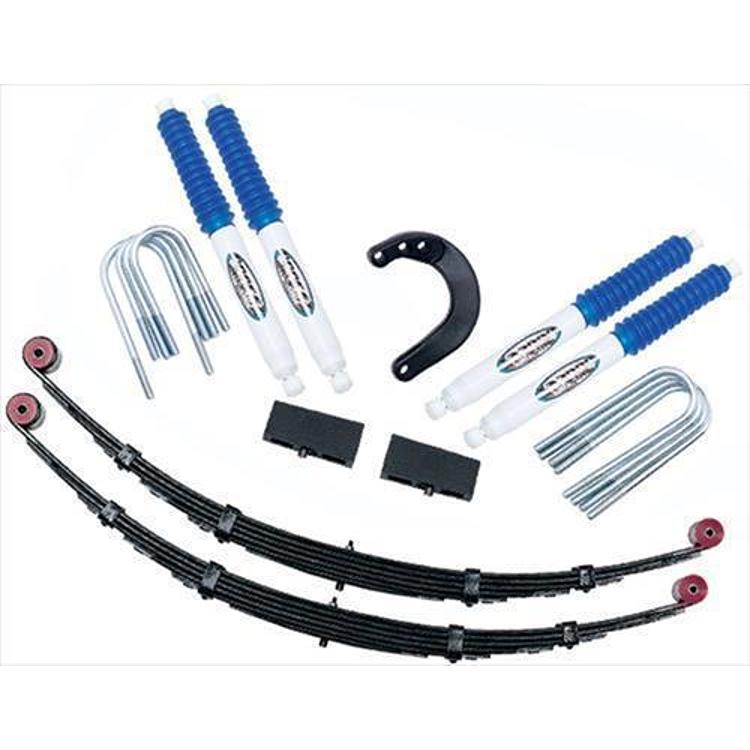

The kit includes front leaf springs and U-bolts, a steering arm, brake line extension brackets, a rear block and U-bolt kit, and ES3000 shocks. Shock boots are not included.

SKU: EXPK1008 Category:

Specification

Shipping weight 161.64 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Blazer1973–1974Base
Chevrolet K101973–1976Cheyenne, Custom Deluxe, Pickup Base, Scottsdale, Silverado
Chevrolet K10 Suburban1973–1976Base, Custom Deluxe, Scottsdale, Silverado
Chevrolet K5 Blazer1975–1976Base, Cheyenne, Custom Deluxe
GMC Jimmy1973–1976Base, High Sierra, Sierra Classic, Sierra Grande
GMC K151975–1976Base, High Sierra, Sierra Classic, Sierra Grande
GMC K15 Suburban1975–1978Base, High Sierra, Sierra Classic, Sierra Grande
GMC K15/K15001973–1974Pickup Base
GMC K15/K1500 Suburban1973–1974Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K1008 fit a 1975 GMC K15 Suburban?

Yes. The kit fits the 1975-1978 GMC K15 Suburban, and a 1975 model falls within that range. The fit covers the K15 Suburban in its Base, High Sierra, Sierra Classic and Sierra Grande versions.

Are shock boots included with the K1008?

No. Shock boots are not included with the K1008, so the shocks arrive without them. Check whether your shock setup needs boots, and order them separately if it does.

What is the lift height of the K1008?

It is a 4-inch stage I lift with a lift height range of 3 to 4.99 inches. The front leaf springs and block rear set the ride height, so measure before and after the install to confirm the change.

Can a steering arm lift be driven without an alignment?

It is not advisable. A steering arm and leaf spring front end change the angles of the steering and axle, so the tires can wear unevenly if the alignment is skipped. Have the front alignment checked soon after installation and keep an eye on tire wear.
