Pro Comp 6 Inch Lift Kit with Pro Runner Shocks – K1085BP

Pro Comp Suspension

Shop Pro Comp Suspension Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch front and 3.5-inch rear lift with a crossmember and knuckle system
  • Clears 35-inch tires with no trimming
  • Pro Runner front shocks
  • Part number K1085BP

Description

Overview

The Pro Comp 6 Inch Lift Kit with Pro Runner Shocks, part number K1085BP, is a crossmember and knuckle lift system for 2500 HD Chevrolet and GMC trucks. The front lift is 6 inches and the rear lift is 3.5 inches, with lift blocks and U-bolts at the rear.

The front uses a heavy-duty, laser-cut crossmember and steering knuckles that are quarter-inch thick. The kit clears 35-inch tires with no trimming. It is a bolt-on install that needs no welding or drilling and no cutting of the differential. The front shock is a Pro Runner unit rather than the ES9000 used in the K1085B.

Key features

  • 6-inch front lift and 3.5-inch rear lift
  • Crossmember and steering knuckle system
  • Clearance for 35-inch tires with no trimming
  • Heavy-duty, laser-cut crossmember
  • Driveline spacers, bump stop extensions and skid plate included
  • Pro Runner front shock

Crossmember lift considerations

Crossmember and knuckle front systems change the geometry of the front axle, so the steering and brake components deserve a closer look after installation. Brake lines, steering linkage and the bump stops all shift when the front rises. Inspect each one at full steering lock and under suspension compression before the truck sees hard use.

The skid plate and driveline spacers that come with the kit protect parts that sit lower once the lift is in. A skid plate is only useful when it is fastened securely, so check its bolts after rough trail sections. Keeping a basic toolkit with spare fasteners makes those checks easier on the trail.

  • Inspect brake lines for stretch or chafing
  • Check steering stop clearance at full lock
  • Torque all fasteners after the first drive

Specifications

Brand Pro Comp Suspension
Part number K1085BP
UPC 70000637806
Lift height 6 inches front, 3.5 inches rear
Lift height range 5 to 6.99 inches
Front lift Crossmembers and steering knuckles
Steering correction None
Rear lift Lift blocks and U-bolts
Front shocks Pro Runner
Shocks included Yes
Fitment Direct fit

Vehicle fitment

Match your truck’s year, model and trim to the fitment before ordering. The kit is built for 2500 HD Chevrolet and GMC trucks.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the front crossmember and knuckles replace factory parts, have the alignment and driveline angles checked after installation.

What’s included

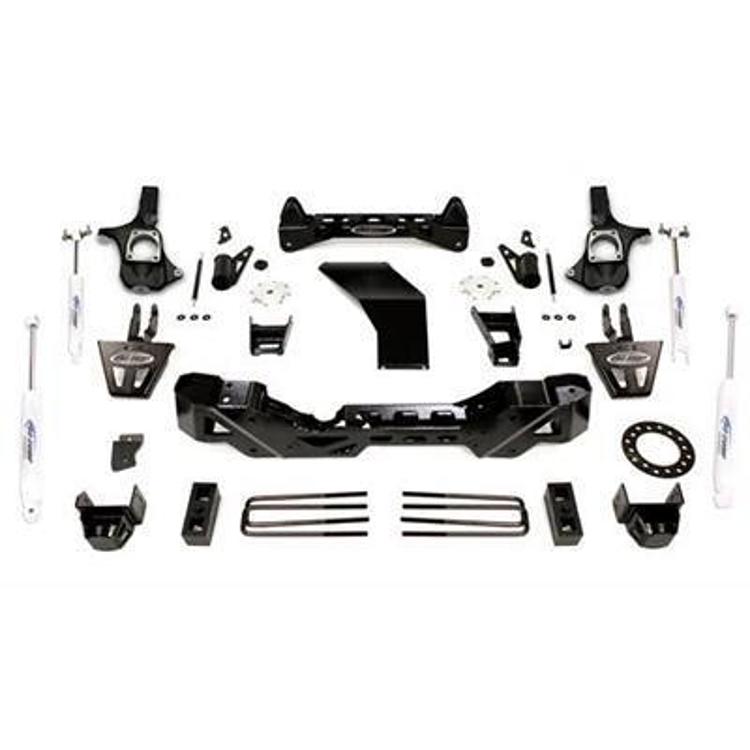

The kit includes the front crossmember and steering knuckles, rear lift blocks with U-bolts, driveline spacers, bump stop extensions, a skid plate and Pro Runner front shocks.

SKU: EXPK1085BP Category:

Specification

Shipping weight 392.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Which trucks does the K1085BP fit?

Check that your truck's year, model and trim fall within the coverage before buying. Match the crossmember, knuckles and rear blocks to the 2500 HD truck's make, model and year.

How is the K1085BP different from the K1085B?

The two kits share the same crossmember, knuckle and lift components. The K1085BP uses a Pro Runner front shock, while the K1085B uses an ES9000.

Will the K1085BP clear 35-inch tires?

Yes. The kit clears 35-inch tires with no trimming. Check for rubbing at full steering lock after the first drive to confirm clearance on your specific truck.

What maintenance do Pro Runner front shocks need?

Check the shocks at routine service for leaks, worn bushings and damaged boots. Replace a shock that leaks oil or bounces after a bump, and keep the mounting hardware tight. Keeping the shocks clean also helps the seals last longer.
