Pro Comp 4 Inch Stage I Lift Kit with ES3000 Shocks – K4110B

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 1 coil spring lift with radius arm brackets and I beam brackets
  • Extended SS brake lines and pitman arm steering correction
  • Rear block and U-bolt kit with ES3000 front and rear shocks
  • Fits 1981–1989 Ford F-150 trucks

Description

Overview

The Pro Comp K4110B is a 4-inch stage 1 coil spring lift with ES3000 front and rear shocks. It fits 1981–1989 Ford F-150 trucks and gives a lift height range of 3 to 4.99 inches.

The front uses coil springs with radius arm brackets and I beam brackets, and the rear is raised with a block and U-bolt kit. A pitman arm corrects the steering, and extended length SS brake lines are included. The shock boots are not included.

Key features

  • 4-inch lift, stage 1 design
  • Front coil springs with radius arm brackets
  • I beam brackets
  • Pitman arm steering correction
  • Extended length SS brake lines
  • Rear block and U-bolt lift

Choosing the right setup

A stage 1 coil spring lift is often the first step for a truck that sees mixed road and trail use. The front springs raise the body, while the radius arm brackets and I beam brackets hold the axle in place so it can travel without binding. Because the rear is lifted with a block and U-bolt arrangement, the rear leaf springs carry the new height, so the rear end usually rides a little differently than the front.

Before buying, think about how the truck will be driven most of the time. Shocks sized for the new height help control the extra travel, and tires that clear the new fender line are often swapped at the same time. Keep the brake hoses and steering linkage in view when you plan the job, since those parts are the ones most often disturbed by a lift like this. Re-check the U-bolts and radius arm hardware after the first short drives.

Specifications

Brand Pro Comp Suspension
Part number K4110B
UPC 614901125351
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arm and I beam brackets
Rear lift Block and U-bolt kit
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Brake lines Extended length SS
Shock boots Not included

Vehicle fitment

It fits 1981–1989 Ford F-150 trucks; Bronco models and other years fall outside that coverage.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arm and I beam brackets change the front geometry, so set the alignment after installation. Check the extended SS brake lines for routing at the new height before the wheels are fitted.

What’s included

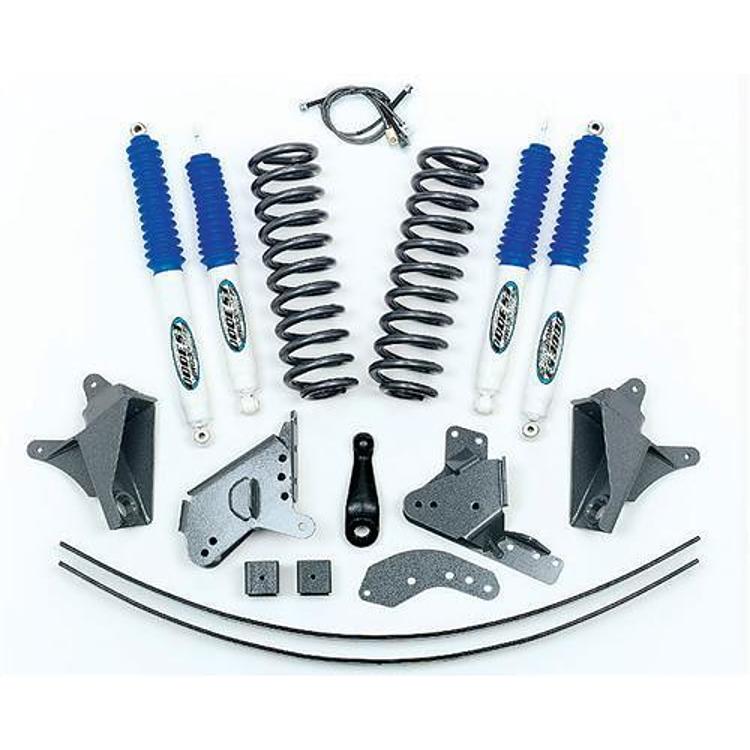

The kit includes front coil springs, radius arm brackets, I beam brackets, a pitman arm, extended length SS brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.

SKU: EXPK4110B Category:

Specification

Shipping weight 139.10 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1501981–1989Base, Custom, Ranger, Ranger Lariat, Ranger XLT, XL, XLS, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4110B fit a 1985 Ford F-150?

Yes. The 1985 model year falls inside the 1981–1989 Ford F-150 range this kit covers. Match your vehicle's year, model and trim before ordering.

Is the K4110B a 4-inch lift?

Yes. It is a 4-inch stage 1 lift with a lift height range of 3 to 4.99 inches, using coil springs at the front.

Are shock boots included with the K4110B?

No. Shock boots are not included in this 4-inch stage 1 kit, so any boots for the ES3000 shocks must be sourced separately.

How often should lift hardware be checked after installation?

Check the U-bolts, radius arm bolts and I beam bolts after the first few drives, then at regular oil changes. Look for loose nuts, cracked welds and worn bushings, and retighten each fastener to the correct torque.
