Overview
The Pro Comp 6 Inch Lift Kit with ES3000 Shocks, part number K1044B, is a 6-inch bracket-type lift. It adds drop brackets at the front, front and rear crossmembers, compression struts and upper control arm mount brackets, which makes it a bracket-type kit rather than a leaf spring lift.
At the rear, the kit uses lift blocks, U-bolts and add-a-leaf components. ES3000 front shocks are included with the kit. The lift height range is 5 to 6.99 inches, and the steering correction is a steering drop.
Key features
- 6-inch lift, stage 1
- Front drop brackets and torsion bar drop brackets
- Front and rear crossmembers
- Compression struts
- Front sway bar links
- Bump stops
- Upper control arm mount brackets
- ES3000 front shocks, included
Alignment and driveline checks
A bracket and knuckle lift changes the front geometry, the driveline angles and the steering path, so the work does not end when the parts are bolted on. Compression struts and upper control arm mounts alter how the axle and control arms move, and the new ride height can change caster and toe. Schedule an alignment after installation and check the driveline angles before taking the truck on the highway.
A rear add-a-leaf and lift block setup also changes the leaf spring pivot and U-bolt loading, so recheck the U-bolts after the first few drives. Shocks should be inspected after the lift, since a new ride height changes shock travel. Keep the brake lines and steering linkage clear of the new brackets, and look for rubbing at full steering lock.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1044B |
| UPC | 614901122169 |
| Lift height | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Bracket |
| Steering correction | Steering drop |
| Rear lift | Lift blocks, U-bolts and add-a-leaf |
| Front shocks | ES3000 |
| Shocks included | Yes |
| Fitment | Direct fit |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Check the trucks this kit was built for against your truck before installing it.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A bracket and knuckle lift with compression struts and upper control arm mounts changes the front geometry and driveline angles, so have the alignment and driveline checked after installation.

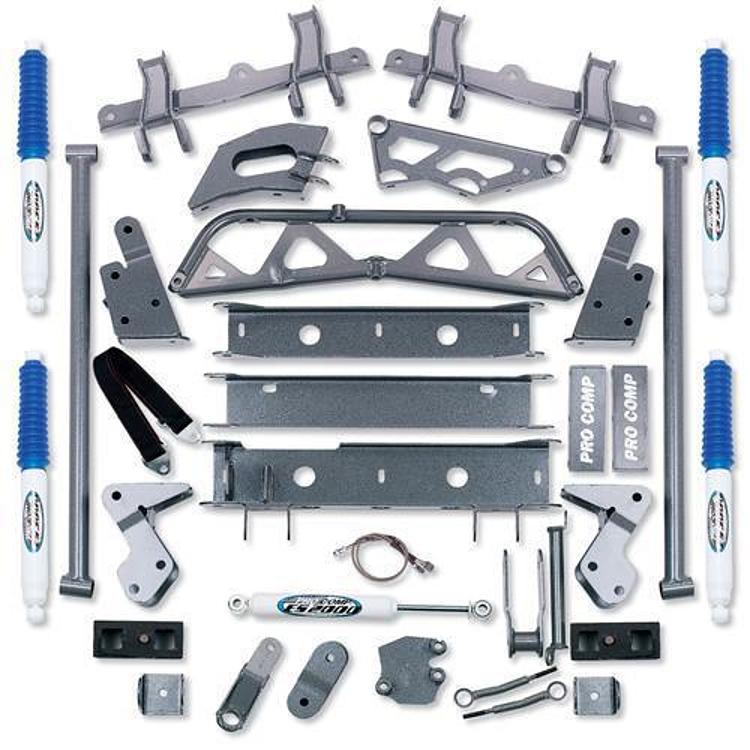

What’s included
The kit includes front drop brackets, front and rear crossmembers, compression struts, front sway bar links, bump stops, torsion bar drop brackets, upper control arm mount brackets, rear lift blocks with U-bolts and add-a-leaf components, and ES3000 front shocks.
