Pro Comp 6″ Lift Kit with PRO-VST Front Coilovers and PRO-VST Rear Shocks – K1171BX

Pro Comp Suspension

Shop Chevrolet Silverado 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 1 lift for 2014–2018 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks
  • PRO-VST front coilovers and PRO-VST rear shocks included
  • Block and U-bolt rear lift with add-a-leaf hardware; lift height range 6–7 inches
  • The 6-inch K1171B works with aluminum or stamped steel control arms.

Description

Overview

The Pro Comp K1171BX is a 6-inch lift kit with PRO-VST front coilovers and PRO-VST rear shocks for the 2014–2018 Chevrolet Silverado 1500 and GMC Sierra 1500. It is a stage 1 lift with a lift height range of 6 to 7 inches, and both shocks come with the kit.

The rear uses a block-and-U-bolt lift with add-a-leaf hardware. Pro Comp’s notes say the 6-inch K1171B kit works on GM 1500 trucks with either aluminum or stamped steel control arms. Those control arms changed on April 1, 2016: trucks built before that date had cast steel or aluminum arms, and trucks built on or after it have stamped steel upper and lower arms.

Key features

  • 6-inch stage 1 lift with a listed lift height range of 6 to 7 inches
  • PRO-VST front coilovers and PRO-VST rear shocks, both included
  • Block and U-bolt rear lift with add-a-leaf hardware
  • The 6-inch K1171B works with both aluminum and stamped steel control arms.
  • Fits the 2014–2018 Chevrolet Silverado 1500 and GMC Sierra 1500

Before you install

A front coilover and rear shock upgrade changes how the truck settles under load, so the new shocks should be checked after the first few drives. Look for leaks at the shock bodies and listen for knocking at the mounts. Lifting a truck also moves the suspension through a longer range of travel, which puts more strain on bushings, ball joints and tie rod ends. Inspecting these parts while the truck is on the lift is a sensible step before the kit goes on.

Block and U-bolt rear lifts depend on the axle staying square under the spring pack, so the U-bolts should be torqued after the first drive and checked again after a few weeks of use. Brake lines and the parking brake cable may need slack checks at the new ride height. On trucks with stamped steel control arms, the alignment shop should set caster carefully, since small changes there affect highway tracking.

  • Re-check U-bolt torque after the first few drives
  • Inspect brake lines and cables for stretch at the new height
  • Replace worn tie rod ends and ball joints before lifting
  • Keep the old shock mounting hardware for reference

Specifications

Brand Pro Comp Suspension
Part number K1171BX
Suspension type Lift kit, stage 1
Lift height 6 inches, listed range 6–7 inches

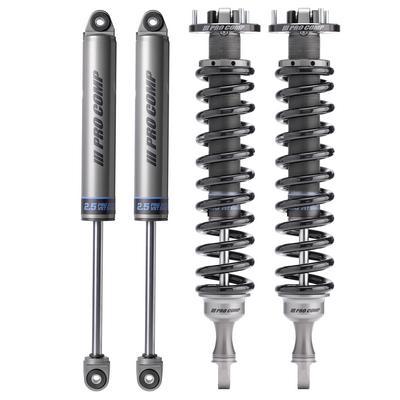

Front shocks PRO-VST coilovers
Rear shocks PRO-VST, included

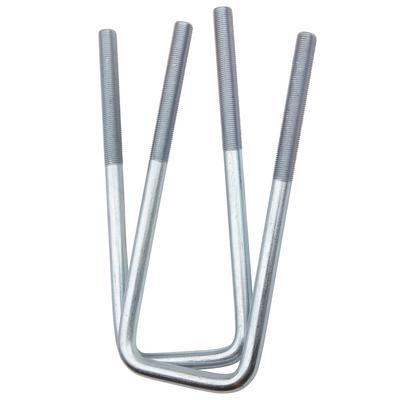

Rear lift method Block and U-bolt with add-a-leaf
Shocks included Yes

Vehicle fitment

It fits the 2014–2018 Chevrolet Silverado 1500 and the 2014–2018 GMC Sierra 1500 across the trim levels covered for each truck.

It fits 2014–2018 Silverado 1500 and Sierra 1500 trucks only. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Lifting the truck changes driveline angles and steering geometry, so have the alignment checked and the driveline angles confirmed after installation. The older 6-inch K1165B and 4-inch K1159B kits, made for aluminum control arms, can use the 90-60616B sway bar bracket kit on trucks with stamped steel control arms. The K1171B-based kit does not need that bracket.

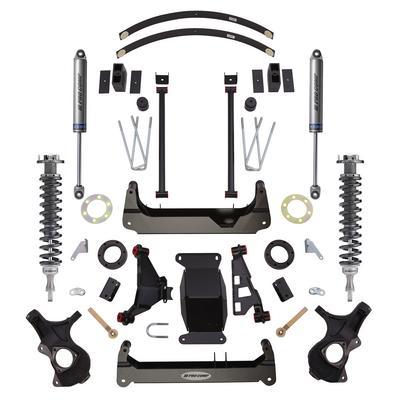

What’s included

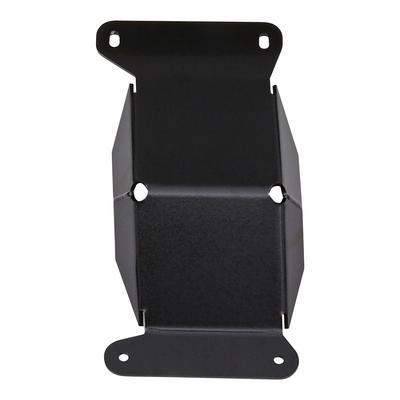

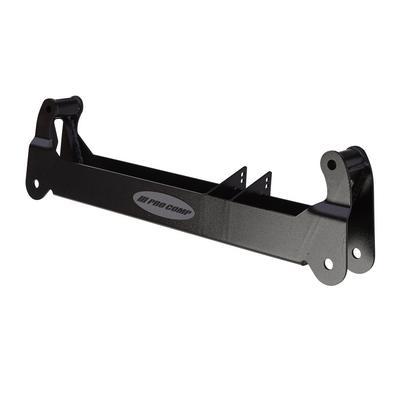

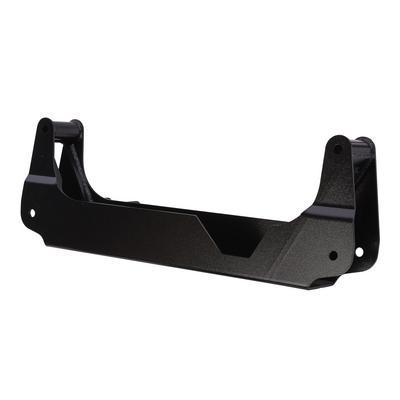

PRO-VST front coilovers, PRO-VST rear shocks, and the rear block and U-bolt lift components with add-a-leaf hardware.

SKU: EXPK1171BX Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002014–2018Custom, High Country, LS, LT, LTZ, SSV, WT
GMC Sierra 15002014–2018Base, Denali, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp K1171BX fit a 2019 Silverado 1500?

No. It fits 2014–2018 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks only. Trucks from 2019 and newer need the kits made for those years.

Does the K1171BX work with aluminum or stamped steel control arms?

Pro Comp's notes say yes. The 6-inch K1171B works on GM 1500 trucks with either aluminum or stamped steel control arms. Older aluminum-arm kits need the 90-60616B sway bar bracket kit to work on stamped steel trucks.

What lift height does the K1171BX provide?

It is a 6-inch stage 1 lift with a listed lift height range of 6 to 7 inches. PRO-VST front coilovers and PRO-VST rear shocks are included, and the rear uses a block and U-bolt lift with add-a-leaf hardware.

How do I know if my control arms are aluminum or stamped steel?

Check the build date on your truck. Trucks built before April 1, 2016 had cast steel or aluminum arms, while trucks built on or after that date have stamped steel upper and lower arms.
