Overview
The Pro Comp K1171M is a 6-inch stage 1 lift kit with PRO-M front and rear shocks for 2014–2018 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups. The lift height range is 6 to 7 inches, and the shocks are included.
The rear uses a block and U-bolt setup with add-a-leaf hardware. Control arm design matters on these trucks: GM 1500s built before April 1, 2016 had cast steel or aluminum control arms, and those built on or after that date have stamped steel upper and lower arms. The 6-inch K1171B and 4-inch K1173B kits work on both designs.
Key features
- 6-inch stage 1 lift with a listed range of 6 to 7 inches

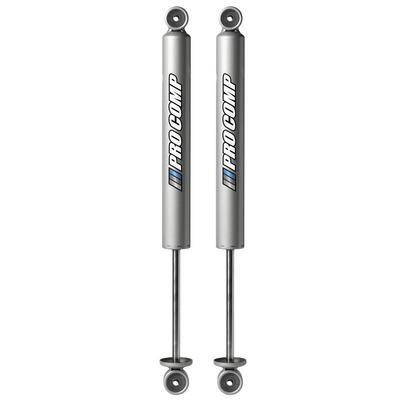

- PRO-M front and rear shocks, included

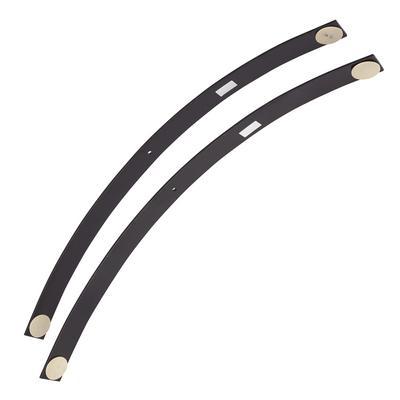

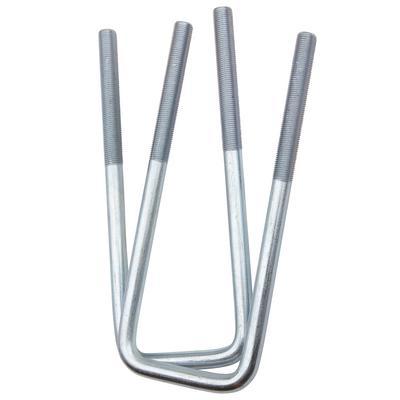

- Block and U-bolt rear lift with add-a-leaf hardware
- This 6-inch kit is designed to suit both aluminum and stamped steel control arms.
Suspension load and towing
Pickups are built to carry and tow, and a lift changes how the rear suspension handles that work. The leaf springs, shackles and mounts see new angles, and the rear axle position alters how the load transfers across the frame. A lift on a daily-driven truck often feels different when it is loaded than when it is empty.
Before towing or hauling after a lift, review the trailer ratings and brake capacity, and check that the tires are rated for the loads expected. Track bars, drag links and tie rod ends can wear faster on a raised truck, so inspecting them periodically helps catch trouble before it affects steering.
- Inspect leaf springs and shackles for wear
- Check track bar and drag link geometry
- Review tire load ratings before towing
- Recheck torque on suspension fasteners after the first tow
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1171M |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Front shocks | PRO-M |
| Rear shocks | PRO-M, included |
| Rear lift method | Block and U-bolt with add-a-leaf |
| Shocks included | Yes |
Vehicle fitment
It fits the 2014–2018 Chevrolet Silverado 1500 and the 2014–2018 GMC Sierra 1500 across the full model-year range.
Fit is set for 2014–2018 Silverado and Sierra 1500 trucks. Compare your truck’s model year and trim with this fit before buying, since the 2019 and newer 1500s, the 2500 and 3500 models and 2013 and older trucks fall outside that range.
Installation notes
Pro Comp’s notes say that older 6-inch K1165B or 4-inch K1159B kits made for aluminum control arms need the 90-60616B sway bar bracket kit to work on stamped steel trucks. Lifting a 1500 truck changes the driveline angles, so check them and the alignment after installation.

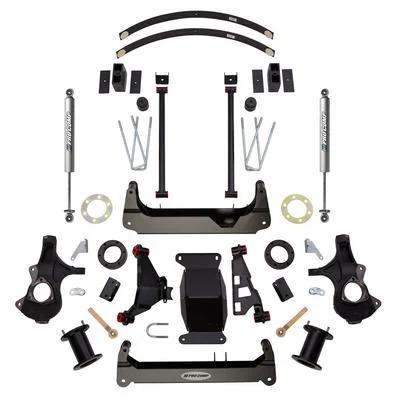

What’s included
PRO-M front and rear shocks, and the rear block and U-bolt lift components with add-a-leaf hardware.
