Overview

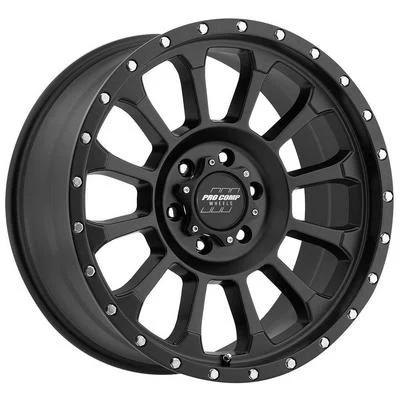

The Pro Comp 34 Series Rockwell 18×9 wheel, part number PXA5034-8936, is an 18-inch aluminum spoke wheel that is 9 inches wide. The bolt pattern is 6 on 135, also written 6×135, and the finish is satin black.
Pro Comp builds the 34 Series Rockwell with low-pressure casting. This 18×9 version has a 108 center bore, a 0 offset and a backspacing of 5. It is universal fit with no vehicle named, so measure the hub bolt pattern and center bore before buying.
Key features
- Low-pressure cast aluminum
- 18-inch diameter and 9-inch width
- 6 on 135 bolt pattern
- Center bore 108
- Offset 0 and backspacing 5
- Satin black spoke design
Hub-centric fit and lug nuts
On a six-lug 135 hub, the wheel centers on the hub through its bore, and the lug nuts pull it flat against the hub face. Hub-centric fit is the more precise method because the hub carries the load, while lug-centric designs rely on the nuts alone. If the bore is larger than the hub, a centering ring can close the gap and reduce vibration.
Wheel size changes tire and brake clearance more than the bolt pattern does. An 18-inch rim with a larger tire may need more room around the caliper and fender than the stock setup. Related parts often replaced with new wheels include lug nuts, valve stems and sensors, and it is practical to inspect them during installation.
- Use nuts matched to the seat type
- Add centering rings if the bore is larger
- Replace worn valve stems during install
- Check clearance with the tire fitted
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5034-8936 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 5 |
| Style | Spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 34 Series Rockwell |
Vehicle fitment
Pro Comp does not tie this 18×9 wheel to a vehicle. The universal fit label means the 6 on 135 hub and 108 center bore must be confirmed for each application.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
With a 6-lug 135 pattern, the bolt holes and center bore both need to match the hub. Test-fit the wheel and check brake caliper clearance before driving.
The 9-inch width and 18-inch diameter describe a larger wheel than the smaller sizes in this series, so check the caliper and tire clearance on the vehicle. The satin black spoke design is finished in the 34 Series Rockwell look.
What’s included
This item is a single 18×9 satin black wheel and nothing else.
