Overview

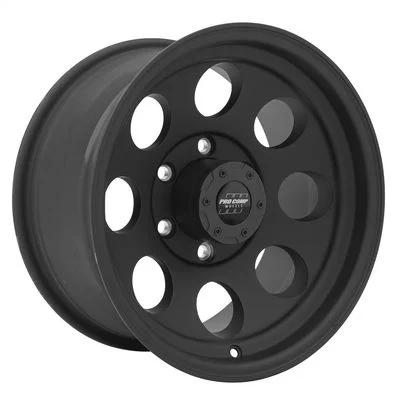

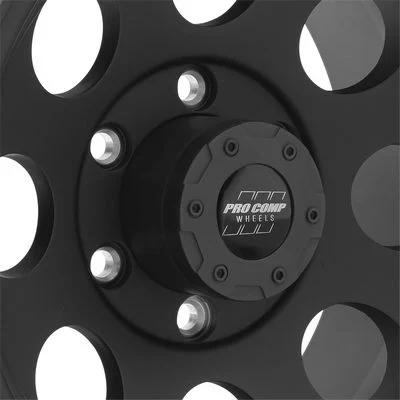

The Pro Comp PXA7069-6883 is a 16×8 flat black aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style and a 6 on 5.5 bolt pattern. It is sold as one wheel with a center bore of 108 and an offset of -12.
These 69 Series alloys are low-pressure cast aluminum with a flat black finish on this model. The line is built with high offset for brake clearance on trucks and SUVs. This wheel’s backspacing of 4 places the tire outboard of the mounting face.
Key features
- Low-pressure cast aluminum construction
- Holes style face
- 16-inch diameter, 8-inch width
- 6 on 5.5 bolt pattern
- Center bore of 108
- Offset -12 with 4 backspacing
Things to check
Six lugs on a 5.5 spacing are less common than five-lug patterns, so confirm the hub before buying any tire. A wheel with a 108 center bore needs a hub pilot that fits the bore, or the wheel may sit off-center and vibrate. Backspacing controls how far the inner lip sits behind the mounting face, which matters for tire and suspension clearance when tire width changes.
Tire width and load rating should suit the 8-inch rim width. Wider tires can rub inner fenders or contact control arms during flex, especially on a lifted suspension. Check clearance with the wheel installed and the vehicle loaded as it normally runs.
- Match the hub pilot to the 108 center bore
- Check inner clearance with suspension at full travel
- Confirm tire load rating for the wheel
- Re-check lug torque after the first drive
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7069-6883 |
| Series | 69 Series Vintage (Classic) |
| Style | Holes |
| Construction | Aluminum |
| Finish | Flat black |
| Diameter | 16 inches |
| Width | 8 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -12 |
| Backspacing | 4 |
Vehicle fitment
Check the 6 on 5.5 hub and 108 center bore against your vehicle first, then the -12 offset against the brake caliper and fender.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A six-lug hub at 5.5 is the match for this wheel, and the 108 center bore should seat on the hub pilot. Test-fit with the tire to confirm that the -12 offset clears the caliper.
What’s included
One 16×8 aluminum wheel. Review the box contents against your installation plan before starting work.
