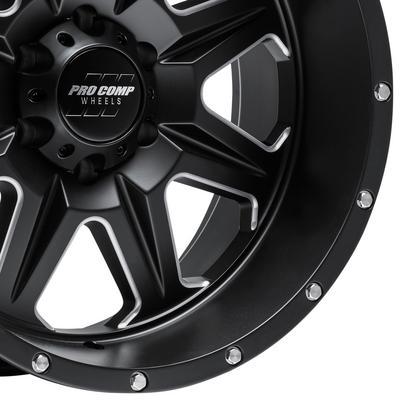

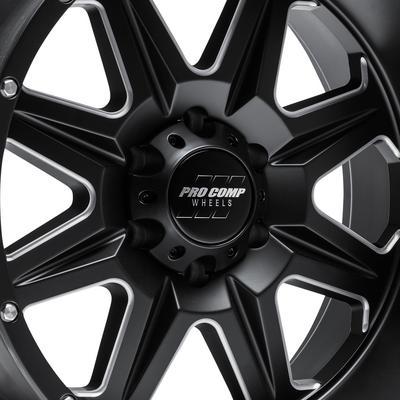

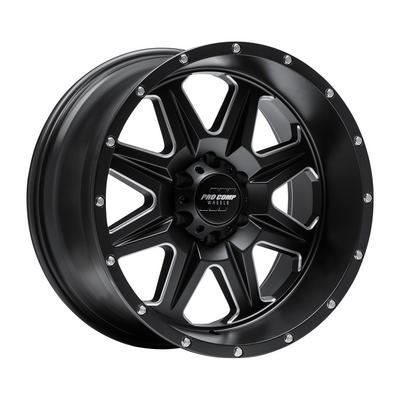

Pro Comp 63 Series Recon, 20x10 Wheel with 6x135 Bolt Pattern – Satin Black Milled – 5163-213647

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5163-213647: 20×10 aluminum spoke wheel, 63 Series Recon, satin black milled
  • 6 on 135 bolt pattern, center bore 87, offset -18, backspacing 4.75
  • Pro Comp alloy load rating of 2500 to 3650 lbs per wheel
  • No vehicle is named for this wheel

Description

Overview

The Pro Comp PXA5163-213647 is a 20×10 aluminum spoke wheel from the Pro Comp 63 Series Recon line, in satin black milled with a 6 on 135 bolt pattern. It is one wheel, with a center bore of 87 and an offset of -18.

Pro Comp built the Recon with low-pressure casting and rates its alloy range from 2500 to 3650 lbs per wheel. The 10-inch width and 4.75 backspacing position the tire relative to the fender, and the six-lug 135 pattern is the layout to match first.

Key features

  • Low-pressure cast aluminum
  • Spoke face style
  • 20-inch diameter and 10-inch width
  • 6 on 135 bolt pattern
  • Center bore of 87
  • Offset -18 with 4.75 backspacing

Caliper and hub clearance

Brake caliper clearance is one of the first things to check on a wheel with a negative offset and a wide rim. Measure the caliper body and the inner face of the spokes with the wheel on the hub. A caliper that sits close to the inner spoke area can limit how far the rim can be seated, so take the measurement before the tire goes on.

Hub-centric fit matters for vibration-free running. The 87 center bore should seat on the hub pilot so the wheel centers rather than relying only on the lug nuts. If the pilot does not match cleanly, the wheel can wobble at speed, so check the fit before the first drive.

  • Measure caliper clearance on the hub
  • Confirm the center bore seats on the pilot
  • Recheck clearance after any suspension change

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5163-213647
Series 63 Series Recon
Style Spoke
Construction Aluminum
Finish Satin black milled
Diameter 20 inches
Width 10 inches
Bolt pattern 6 on 135
Center bore 87
Offset -18
Backspacing 4.75
Load rating 2500 to 3650 lbs per wheel (Pro Comp alloy range)

Vehicle fitment

Fit is set by the hub pattern rather than a named model. The 6 on 135 hub and 87 center bore have to match, and the -18 offset needs a clearance check.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A six-lug hub at 135 is required, and the lug holes must line up exactly. A test fit with the tire helps confirm clearance at the caliper and suspension, since the 10-inch width places the tire outward. Measure the vehicle’s six lug holes and their 135 spacing before buying, because the wheel will not center on a different pattern.

What’s included

One 20×10 aluminum spoke wheel per order.

SKU: PXA5163-213647 Categories: ,

Questions & Answers

Is the PXA5163-213647 a 6 on 135 wheel?

Yes. The bolt pattern is 6 on 135 with a center bore of 87. The offset is -18 and the backspacing is 4.75, so confirm these figures before buying.

Are lug nuts included with the PXA5163-213647?

Lug nuts and a center cap are absent from the stated contents. Ask Pro Comp to confirm the hardware if your hub needs it.

What is the offset of the 20x10 Recon?

The offset is -18 with a backspacing of 4.75. The negative offset moves the rim outward, so check fender and brake clearance with the tire mounted.

What signs show a wheel is not centered on the hub?

Vibration at highway speed or a wheel that seems slightly off center on the hub are common signs. Check that the center bore seats fully on the pilot and that the lug nuts are tight and even. Address the cause before driving long distances.
