Overview

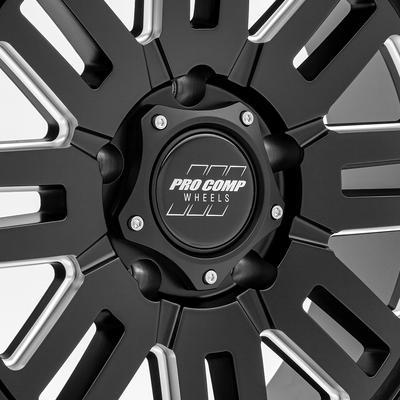

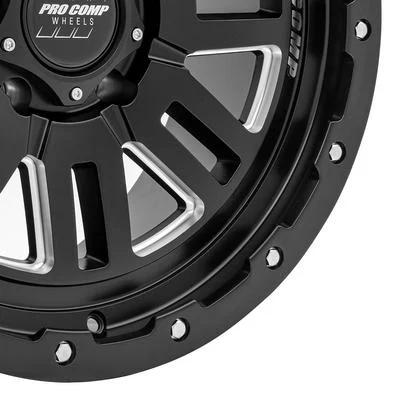

The Pro Comp 61 Series Cognos 18×9 wheel (part number PXA5161-895550) is a satin black milled aluminum split spoke wheel with a 5 on 150 bolt pattern. It measures 18 inches in diameter and 9 inches wide, with an offset of 0 and a center bore of 110.
The Cognos is made with low-pressure casting and is a lightweight wheel with a split spoke style. The alloy line it belongs to is rated from 2500 lbs to 3650 lbs per wheel.
Pro Comp says its warranty transfers to a new owner, so the coverage stays with the wheel if it is sold on. Check Pro Comp’s warranty terms for the coverage details.
Key features
- 18 inch diameter and 9 inch width in a split spoke design
- Satin black milled finish
- Aluminum construction made by low-pressure casting
- 5 on 150 bolt pattern, offset 0 and center bore 110
- Transferable warranty
Caring for a milled finish
A satin black milled finish shows road grime and brake dust more clearly than a painted face, and the milled surfaces can hold dirt in their edges. Regular washing with a mild soap and a soft brush keeps the finish clean and helps the spokes look sharp. Rinse the wheel thoroughly so no soap residue is left in the milled areas.
Split spoke wheels also need periodic inspection around the spoke joints and the lip. Look for cracks, bends or air leaks after curb strikes or rough trail use, and check the wheel’s bolt pattern and center bore if the wheel has been moved between vehicles.
- Wash with mild soap and water
- Avoid harsh acid-based wheel cleaners
- Use a soft brush in the milled areas
- Inspect the lip and spoke joints after rough use
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5161-895550 |
| Series | 61 Series Cognos |
| Diameter | 18 inches |
| Width | 9 inches |
| Style | Split spoke |
| Finish | Satin black milled |
| Construction | Aluminum, low-pressure cast |
| Bolt pattern | 5 on 150 |
| Offset | 0 |
| Backspacing | 5 |
| Center bore | 110 |
| Load rating range | 2500 lbs to 3650 lbs per wheel (Pro Comp alloy range) |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Compare the 5 on 150 bolt pattern, center bore and offset with your hub.
Installation notes
Check the 5 on 150 bolt pattern first, since it has to match the hub exactly before offset or center bore are compared. Confirm the center bore and offset match your hub before mounting. A wheel with the wrong offset can rub the fender or contact suspension and brake parts.
