Pro Comp 62 Series Apex, 20x10 Wheel with 6x5.5 Bolt Pattern – Satin Black Milled – 5162-218347

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5162-218347: 20×10 aluminum split-spoke wheel, 62 Series Apex, satin black milled
  • 6 on 5.5 bolt pattern, center bore 108, offset -18, backspacing 4.75
  • Pro Comp alloy load rating of 2500 to 3650 lbs per wheel
  • No vehicle is named for this wheel

Description

Overview

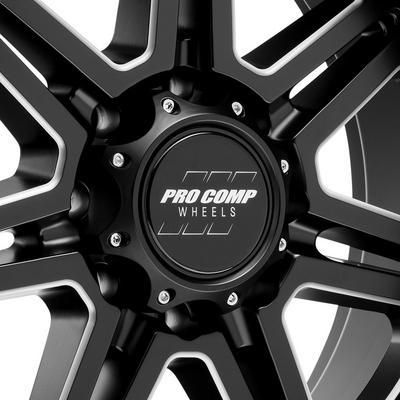

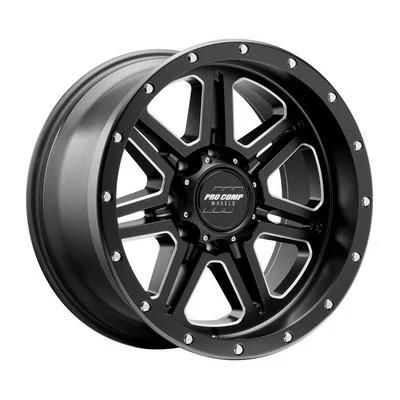

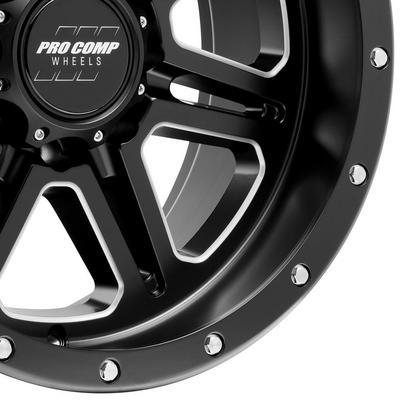

The Pro Comp PXA5162-218347 is a 20×10 aluminum split-spoke wheel from the Pro Comp 62 Series Apex line, in satin black milled with a 6 on 5.5 bolt pattern. It is one wheel, with a center bore of 108 and an offset of -18.

Low-pressure casting is used for this wheel, and its alloy range is rated from 2500 to 3650 lbs per wheel. The 10-inch width, -18 offset and 4.75 backspacing set how far the tire sits from the brake and suspension parts, so check the offset early in the build.

Key features

  • Low-pressure cast aluminum
  • Split-spoke face style
  • 20-inch diameter and 10-inch width
  • 6 on 5.5 bolt pattern
  • Center bore of 108
  • Offset -18 with 4.75 backspacing

Matching the six-lug hub

Six-lug hubs come in several patterns, and the wheel must match the exact one. A pattern with a different circle diameter can look close but will not seat correctly. Measure the hub studs or check the vehicle’s service information before buying, and compare the pattern against the wheel’s mounting holes.

The offset and backspacing decide how the wheel clears the inner and outer parts. Tire bead, brake caliper and steering knuckle are the usual contact points. Test-fit with the tire mounted, turn the steering to full lock before driving, and recheck lug torque after the first few miles on a new wheel.

  • Verify the hub pattern before ordering
  • Check caliper clearance with the tire mounted
  • Re-torque after the first trail runs

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5162-218347
Series 62 Series Apex
Style Split spoke
Construction Aluminum
Finish Satin black milled
Diameter 20 inches
Width 10 inches
Bolt pattern 6 on 5.5
Center bore 108
Offset -18
Backspacing 4.75
Load rating 2500 to 3650 lbs per wheel (Pro Comp alloy range)

Vehicle fitment

No vehicle is named for this wheel. Universal fit on the specifications does not identify a truck or Jeep. Compare the 6 on 5.5 hub and 108 center bore with the vehicle first, then check the -18 offset against the fender and caliper.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Only a six-lug hub at 5.5 accepts this wheel. A 10-inch-wide rim needs a matching tire, and a test fit at the caliper shows whether the offset clears the brake parts. Compare the 4.75 backspacing against the inner clearance you measured on the vehicle. A 6 on 5.5 hub is a different layout from 6 on 135, so match the exact pattern on the vehicle.

What’s included

One 20×10 aluminum wheel. Check fastener needs for the hub before you start installing.

SKU: PXA5162-218347 Categories: ,

Questions & Answers

What bolt pattern is the PXA5162-218347?

It is a 6 on 5.5 bolt pattern with a center bore of 108. The offset is -18 and the backspacing is 4.75. Measure the hub before buying to confirm the match.

Does the PXA5162-218347 include a center cap?

Confirm the lug nuts and center cap before ordering, since this wheel's contents are not confirmed here. Ask the seller to verify the fasteners that match your six-lug hub before you buy.

Is this wheel made for one particular vehicle?

No specific vehicle is named for this wheel. Compare the 6 on 5.5 pattern, 108 center bore and -18 offset with your truck or Jeep before ordering.

Can a wheel with a different pattern be adapted to my hub?

Adapters exist for some pattern changes, but they add parts and load to the hub. A wheel that matches the hub exactly is the simpler choice. Confirm the pattern and center bore before buying anything to adapt it.
