Overview

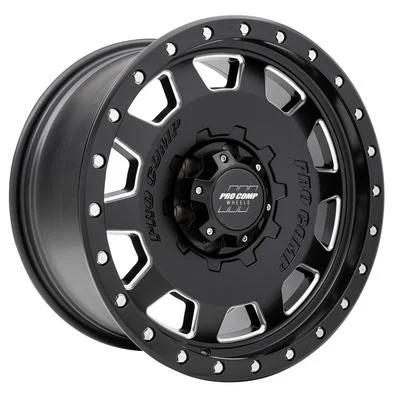

The Pro Comp PXA5160-898350 is an 18×9 aluminum wheel from the Pro Comp 60 Series Hammer line, in a satin black milled finish with a 6 on 5.5 bolt pattern. It is sold as a single wheel.
The Hammer uses low-pressure casting and is rated between 2500 and 3650 lbs per wheel across the alloy line. This model has a center bore of 108, a zero offset and a backspacing of 5. A zero offset places the mounting face at the centerline of the wheel’s width.
Key features
- Low-pressure cast aluminum
- 18-inch diameter, 9-inch width
- 6 on 5.5 bolt pattern
- Center bore of 108
- Offset 0 and backspacing 5

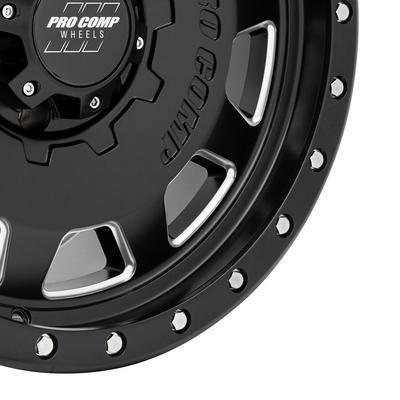

- Satin black milled windowed face
- Covered by the Pro Comp Promise, a transferable warranty.
Measure the hub first
Hub measurement comes before any other purchase decision on a wheel like this. The lug spacing, the number of holes and the center bore all have to match the hub exactly. Measuring the hub studs and pilot takes only a few minutes with a tape measure and a caliper, and it prevents returns and damaged mounting surfaces.
After confirming the hub, check the tire and rim combination. A 9-inch-wide rim needs a tire sized to suit its width, and the tire’s sidewall must clear the suspension at full travel. Test fit with the tire mounted, then torque the lug nuts in a star pattern and recheck them after the first drives.
- Measure the lug spacing across the holes
- Compare the center bore to the hub pilot
- Pair the rim width with a suitable tire
- Check steering lock with the tire mounted
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5160-898350 |
| Series | 60 Series Hammer |
| Style | Windowed |
| Construction | Aluminum |
| Finish | Satin black milled |
| Diameter | 18 inches |
| Width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 5 |
| Load rating | 2500 to 3650 lbs per wheel (Pro Comp alloy range) |
Vehicle fitment
No vehicle is named for this wheel. It is built for a 6 on 5.5 hub with a 108 center bore, so those figures must match the hub of the truck or Jeep. The zero offset also needs a clearance check.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the hub for a 6 on 5.5 layout and a 108 center bore before buying. A test fit with the tire mounted shows whether the rim clears the caliper and any steering components.
What’s included
One 18×9 aluminum wheel. Plan on buying lug nuts and a center cap separately.
