Pro Comp 31 Series Stryker, 18x9 Wheel with 5 on 5 Bolt Pattern – Matte Black – 7031-8973

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 18x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 18×9 aluminum split-spoke wheel in matte black, 31 Series Stryker
  • 5 on 5 bolt pattern, center bore 83
  • Offset 0; backspacing 5
  • Part number PXA7031-8973

Description

Overview

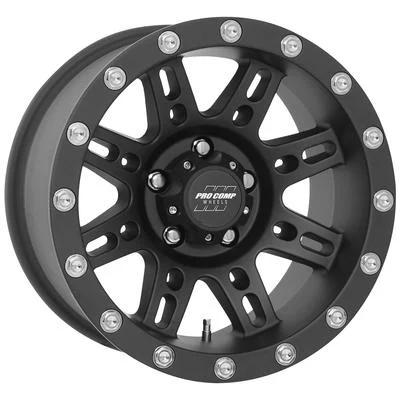

The Pro Comp PXA7031-8973 is an 18×9 split-spoke aluminum wheel in the 31 Series Stryker line, finished in matte black. It sits on a 5 on 5 bolt pattern with a center bore of 83, a 0 offset and a backspacing of 5.

This 18-inch Stryker has the 5 on 5 pattern and a smaller 83 center bore than the 5 on 150 and 6 on 5.5 versions, so the hub must be checked carefully. The wheel is low-pressure cast aluminum.

The 5 on 5 pattern and 83 center bore need to match the hub. The 0 offset and 5 backspacing place this 18-inch face near the centerline, so the inner clearance should be checked on the truck.

The face is matte black split spoke, and the body is aluminum.

Choose a tire size that suits an 18-inch rim that is 9 inches wide before mounting.

This 18×9 wheel uses a 5 on 5 bolt pattern and an 83 center bore, so the hub has to match both numbers before installation. The 0 offset and 5 backspacing place the face near the centerline, and the inner clearance should be checked against the suspension. Choose a tire rated for the wheel’s diameter and width, and check brake caliper clearance before mounting the wheel and tire assembly.

Confirm the hub bore before buying.

Key features

  • Split-spoke face
  • Matte black finish
  • 5 on 5 bolt pattern
  • Center bore 83
  • Offset 0

Hub-centric fit basics

A wheel can be centered by its bore or by its lug studs. Hub-centric wheels rely on the center bore sitting snugly over the hub, which carries the weight and reduces vibration. If the wheel bore is larger than the hub, hub-centric rings made to fill the gap can restore proper centering without changing the stud pattern.

A wheel bore smaller than the hub will not seat, so the measurement should be taken before ordering. Clean the hub face and remove any rust or paint so the wheel sits flat. Lug nuts should then be torqued in a star pattern, and the torque re-checked after the first few drives.

  • A bore smaller than the hub will not fit
  • Larger bores need hub-centric rings
  • Clean the hub face before mounting
  • Torque in a star pattern and re-check

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA7031-8973
Diameter 18 inches
Width 9 inches
Bolt pattern 5 on 5
Center bore 83
Offset 0
Backspacing 5
Style Split spoke
Finish Matte black
Construction Aluminum
Series 31 Series Stryker

Vehicle fitment

The universal fit label does not replace a hub check. Confirm the 5 on 5 pattern and the 83 center bore on the truck, then check the 0 offset against the fender.

Select tires that suit an 18-inch rim that is 9 inches wide. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One wheel. No cap is included.

SKU: PXA7031-8973 Categories: ,

Questions & Answers

Will the PXA7031-8973 fit a 5 on 5 hub?

Yes, if the hub is 5 on 5 with an 83 center bore. Confirm both on the truck before buying.

What size is this Stryker?

It is an 18-inch wheel that is 9 inches wide, with an offset of 0 and a backspacing of 5. The 83 center bore is the number to check on the hub.

Is a center cap included?

No center cap is included with the PXA7031-8973. Confirm the 5 on 5 pattern and 83 center bore on the truck, then check the contents on arrival.

Why does a wheel vibrate after installation?

Vibration often comes from an unbalanced tire and wheel, a loose lug nut, or a wheel that is not seated flat on the hub. Re-torque the nuts, confirm the wheel sits flush, and have the assembly balanced if the shake continues.
