Overview

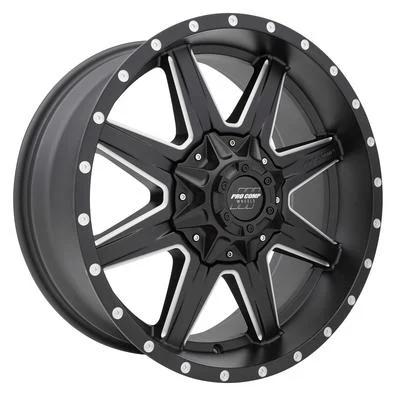

The Pro Comp 48 Series Quick 8 20×9 wheel, part number PXA5148-292650, is a 20-inch aluminum spoke wheel that is 9 inches wide. Its primary bolt pattern is 5 on 5.5, with 5 on 150 also listed, and the finish is satin black milled.
The wheel has a 72 center bore, a 0 offset and a backspacing of 5. The Quick 8 is built with low-pressure casting and rated for 2500 to 3650 lbs per wheel. It is universal fit and not matched to a vehicle.
Key features
- Low-pressure cast aluminum
- 20-inch diameter and 9-inch width
- 5 on 5.5 bolt pattern, 5 on 150 also listed
- Center bore 72
- Offset 0 and backspacing 5
- Satin black milled finish
Choosing between two five-lug layouts
Two five-lug layouts on one wheel make the hub the deciding factor. Confirm the stud pattern on the vehicle before buying, since a wheel that fits one layout will not seat on the other. The center bore should also match the hub pilot, so measure the pilot diameter and compare it with the bore before fitting.
Five-lug wheels fit a wide range of vehicles, so the bolt pattern check comes first, followed by offset and clearance. Lug seats can vary, so match the wheel’s seat to the lug nuts you use. Cleaning the hub face and the wheel mating surface removes dirt and rust that would otherwise prevent a flush seat.
- Verify stud count and spacing on the hub
- Measure pilot diameter against the center bore
- Clean mating surfaces before torquing
- Recheck torque after the first few drives
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5148-292650 |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 5.5 (also 5 on 150) |
| Center bore | 72 |
| Offset | 0 |
| Backspacing | 5 |
| Load rating | 2500 to 3650 lbs per wheel |
| Style | Spoke |
| Finish | Satin black milled |
| Construction | Aluminum |
| Series | 48 Series Quick 8 |
Vehicle fitment
This wheel has no vehicle list and is universal fit. Because two five-lug layouts are listed, compare the hub against both the 5 on 5.5 and 5 on 150 patterns and confirm the 72 center bore.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the hub’s bolt pattern against both listed layouts before mounting. A 0 offset keeps the wheel face centered, which should still be checked against caliper room.
Confirm which five-lug pattern your hub uses before mounting.
Two five-lug patterns are listed, so confirm whether the hub is 5 on 5.5 or 5 on 150. The 72 center bore must seat on the hub, and the 0 offset keeps the face centered on the 9-inch width.
What’s included
One 20×9 wheel in satin black milled. Confirm you have lug nuts and center caps that suit the hub before mounting.
