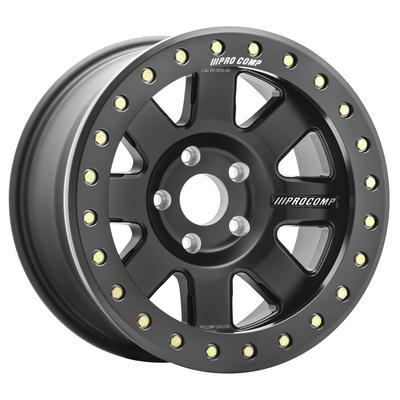

Pro Comp 75 Series Trilogy Race Beadlock Wheel, 17x9 Wheel with 5 on 5.5 Bolt Pattern – Satin Black – 5175-798547

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 5x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17 x 9 beadlock wheel, 5 on 5.5 bolt pattern, part number PXA5175-798547
  • Part of the Pro Comp 75 Series Trilogy Race line in satin black
  • Bead ring forged from 6061 aluminum and double the thickness of the earlier ring
  • Grade 8 countersunk bolts and NORDLOCK washers on the bead ring
  • Offset -6 and backspacing 4.75; fitment must be checked against your hub

Description

Overview

This is a 17 x 9 aluminum beadlock wheel in satin black, part number PXA5175-798547, with a 5 on 5.5 bolt pattern, a -6 offset and a 4.75 backspacing. It is an eight-spoke design and is offered in satin black or super machined finishes.

The Trilogy Race is engineered to be 27% stronger than the previous version. The bead ring is double the thickness of the original and is forged from 6061 aircraft-grade aluminum. The beadlock design holds the bead in place regardless of air pressure or impacts. The design has been used in the Baja 1000 and King of the Hammers.

Key features

  • Beadlock bead ring forged from 6061 aircraft-grade aluminum
  • Bead ring double the thickness of the previous ring
  • Fully countersunk Grade 8 bolts that stay protected from rocks and impacts
  • NORDLOCK washers to keep the ring hardware torqued
  • 45-degree diamond knurl on the bead ring and Infini-Grip figure-eight pattern in the bead area
  • Eight-spoke design

Running a beadlock at low pressure

A beadlock ring clamps the tire bead to the wheel so the tire stays seated when pressure is low. This matters for air-down riding on rocks and sand, where a standard wheel can let the bead roll off. The ring is held by bolts, so it should be treated as a structural part rather than a cosmetic cover.

Before each trip, check that the ring bolts are tight and that the ring sits flat around the wheel. Air up to road pressure before driving on pavement, since low pressure on hard surfaces can make the tire feel unstable. Inspect the bead area for grit or damage after rough trail use, and clean it before remounting a tire.

  • Torque ring bolts before each trip
  • Inspect the bead seat for grit and wear
  • Reinflate to road pressure for pavement

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5175-798547
Series 75 Series Trilogy Race
Style Beadlock, eight-spoke
Diameter 17 inches
Width 9 inches
Bolt pattern 5 on 5.5
Center bore 108
Offset -6
Backspacing 4.75
Construction Aluminum; bead ring 6061 aluminum
Finish Satin black
Hardware Grade 8 countersunk bolts, NORDLOCK washers

Vehicle fitment

This wheel is a universal fit. The bolt pattern, center bore, offset and backspacing decide what it mounts to, so check those against your vehicle’s hub before ordering.

A wheel with the wrong offset or backspacing can rub or sit in the wrong position, so measure the hub before you buy.

Installation notes

The bead ring is held by bolts, and NORDLOCK washers help the ring hardware stay torqued. Check the ring bolts for proper torque after mounting the tire. The beadlock design is meant for running low tire pressures, where the bead ring keeps the tire seated on the wheel.

What’s included

The wheel ships with its bead ring hardware, including the Grade 8 bolts and NORDLOCK washers.

Not included: tires, which the wheel must be mounted with before use.

SKU: PXA5175-798547 Categories: ,

Questions & Answers

What bolt pattern does the 17x9 beadlock wheel use?

It has a 5 on 5.5 bolt pattern, a 108 center bore, a -6 offset and a 4.75 backspacing. Check those measurements against your vehicle's hub before ordering.

Is this wheel built for low tire pressure?

Yes. The beadlock design holds the bead in place regardless of air pressure or impacts, and the bead area uses a diamond knurl and an Infini-Grip figure-eight pattern for grip.

What material is the bead ring made from?

The bead ring is forged from 6061 aircraft-grade aluminum and is double the thickness of the original ring. The wheel is engineered to be 27% stronger than the previous version.

Does this wheel fit a specific Jeep or truck?

It is a universal fit rather than a model-specific wheel. Match the bolt pattern, center bore and offset to your vehicle before ordering.

Can a beadlock wheel be used on pavement?

Yes, with the tire inflated to normal pressure for road use. Running low pressure on pavement can make the tire unstable at speed, so keep low pressure for trail use and air back up before returning to the road.
