Pro Comp 6″ Stage II Lift Kit with PRO-X Shocks – K4178T

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2011–2016 Ford F-250 Super Duty.
  • 6-inch Stage II lift with a 6–7 inch lift height range
  • Replacement radius arms of 4130 chromoly tubing
  • PRO-X front and rear shocks, included
  • Part number EXPK4178T (K4178T)

Description

Overview

The Pro Comp EXPK4178T, also written K4178T, is a 6-inch Stage II lift kit for the 2011–2016 Ford F-250 Super Duty. It includes PRO-X shocks and replacement radius arms, and it is a direct fit for those trucks.

This is the same 2011–2016 F-250 Stage II system as the K4176T, with its own part number. The kit pairs a drop pitman arm and laser-cut brackets for steering and suspension geometry with coil springs, replacement radius arms and PRO-X shocks.

Key features

  • Drop pitman arm, which Pro Comp uses to hold steering geometry
  • Laser-cut brackets
  • Coil springs that increase ride height.
  • PRO-X front and rear shocks, included
  • Direct fit to the listed 2011–2016 F-250 Super Duty

Before you install

Lift kits change more than ride height. Raising the front and rear moves the axle, the steering linkage and the driveline angles, so the kit should be treated as a full suspension job rather than a simple bolt-on. Start with a clean look at the old radius arms, brackets and bushings, since worn parts are often replaced alongside new ones to keep the geometry tight.

Once the truck is at its new height, plan for a four-wheel alignment and a check of the pitman arm angle. Re-torque fasteners after the first few drives, and watch for rubbing at the tires and brake lines through the turns. Shock length should also be checked at full extension so the new shocks are not bottomed out on the bump stops.

Keep a simple log of each service, including torque checks, alignment dates and any bushing replacements. It makes later troubleshooting far easier and shows when parts are due.

Specifications

Brand Pro Comp Suspension
Part number EXPK4178T (K4178T)
Kit type Lift kit, complete suspension system
Kit stage Stage 2
Lift height 6 inches, with a lift height range of 6–7 inches
Radius arms Replacement, 4130 chromoly tubing with 3/16-inch steel plate
Rear lift method Block and spacer
Rear lift component Block and U-bolt with add-a-leafs

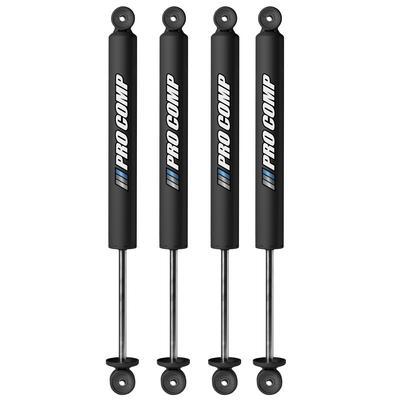

Front shocks PRO-X
Rear shocks PRO-X
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

The kit fits the 2011–2016 Ford F-250 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT trims.

Trucks from 2017 onward and the F-350 Super Duty are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Replacing the radius arms changes how the axle is located, so the alignment and the pitman arm setup need to be checked after the install.

What’s included

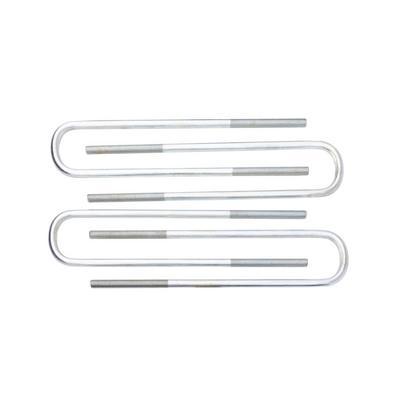

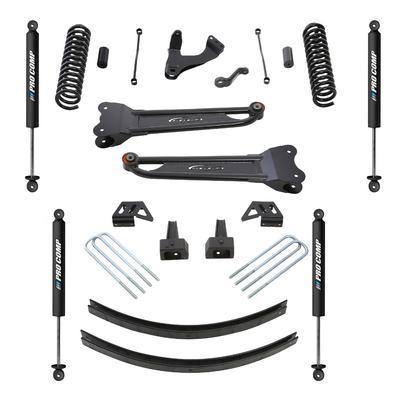

The kit includes replacement radius arms, coil springs, a drop pitman arm, a block and U-bolt rear set and PRO-X shocks. Check the package contents against your installation before starting.

SKU: EXPK4178T Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp EXPK4178T fit a 2014 Ford F-250 Super Duty?

Yes. The 2011–2016 Ford F-250 Super Duty is covered, which includes 2014 trucks. The F-350 is a separate part and does not apply to this F-250 kit.

How does this kit differ from the K4176T?

Both are 2011–2016 F-250 Stage II kits from Pro Comp with their own part numbers. Check the part number against your truck before ordering.

What is a drop pitman arm?

A drop pitman arm is a steering arm that hangs lower so the steering linkage stays in line after a lift. Pro Comp includes one in this kit.

How often should the radius arms and bushings be inspected?

Check the radius arms, bushings and mounting bolts at each oil change and after any rough trail use. Look for cracks at welds, split rubber and loose hardware, and recheck the alignment if the steering pulls or the tires wear unevenly.
