Overview
The Pro Comp K2188T is a 6-inch stage 2 radius arm lift kit with front and rear PRO-X shocks for the 2013–2018 Ram 3500. It is a direct fit for the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST and Tradesman versions.
The kit is built on cast and CNC-machined knuckles and laser-cut, CNC-formed, robotically welded crossmembers. It includes brake line extensions, longer bump stops and sway bar drop brackets, which are part of setting steering geometry for the new height.
Key features
- 6-inch radius arm lift for the 2013–2018 Ram 3500
- Cast and CNC-machined knuckles
- Laser-cut, CNC-formed and robotically welded crossmembers
- Brake line extensions, longer bump stops and sway bar drop brackets
- Front and rear PRO-X shocks
Radius arm setup
Radius arms control axle wrap and fore-aft position under acceleration and braking, so they carry real load on a heavy-duty truck. The bushings at each end take the most wear, and worn bushings let the axle move in ways that affect alignment and braking feel. Choosing arms with sealed bushings and checking them at each service keeps the setup predictable.
A radius arm lift often pairs with a track bar, sway bar links and shock mounts that were not designed for the new height. Check that the track bar length suits the new geometry. Heavy towing adds stress to every drop bracket and bump stop, so frequent inspection matters.
- Inspect radius arm bushings at each oil change
- Check sway bar drop bracket bolts after the first drives
- Look for axle wrap or uneven tire wear
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K2188T |
| Suspension type | Radius arm lift kit, stage 2 |
| Lift height | 6 inches |
| Shocks | Front and rear PRO-X |
| Knuckles | Cast and CNC-machined |
| Crossmembers | Laser-cut, CNC-formed and robotically welded |
| Fitment | Direct fit for the 2013–2018 Ram 3500 |
Vehicle fitment
It fits the 2013–2018 Ram 3500 in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST and Tradesman versions.
It covers the 2013–2018 Ram 3500 only. Compare your truck’s year, model and trim with the fit before ordering.
Installation notes
Radius arm kits change the axle location and the driveline angles on a heavy-duty Ram, so have the driveline angles and the alignment checked after the lift is installed.

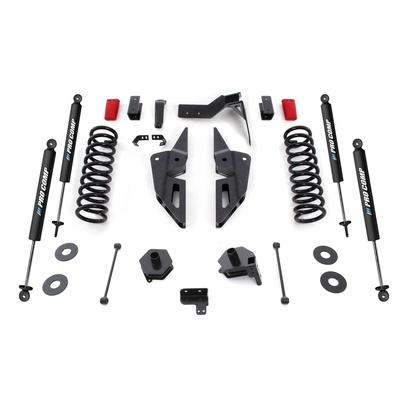

What’s included
Cast and CNC-machined knuckles, laser-cut, CNC-formed and robotically welded crossmembers, front and rear PRO-X shocks, and the brake line extensions, longer bump stops and sway bar drop brackets that Pro Comp describes.
