Overview

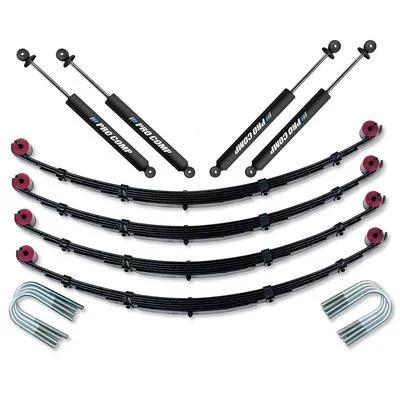

Part number EXPK5063T (kit K5063T) is a leveling kit for the 1975 to 1980 Toyota Land Cruiser Base. It raises the front to match the rear.
It is a 2-inch stage 1 lift with a lift height range of 0 to 3.5 inches. The rear uses a block or spacer lift method, with a shackle as the rear lift component. The front shocks are ES3000 units.
The front is raised while the rear is lifted with a shackle, which is the rear lift component for this kit.
Leveling kits and ride height
A leveling kit raises the front to match the rear, which can make a truck sit more evenly when it carries a load. It does not add the ground clearance of a full suspension lift, so the rear and tires stay as they were. Check front and rear heights after installation and compare them against the factory setting.
Raising the front changes caster and steering geometry, so an alignment after installation keeps tire wear even and the steering centered. Headlight aim should also be checked, since the change in height shifts the beam. Shock travel and the front bump stop should be inspected while the truck is apart.
- Front and rear height measurement
- Caster and toe alignment
- Headlight aim
- Shock and bump stop inspection
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK5063T |
| Kit code | K5063T |
| Suspension type | Leveling kit |
| Lift height | 2 inches stage 1 |
| Lift height range | 0 to 3.5 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Shackle |
| Shocks included | Yes |
| Front shocks | ES3000 |
| Fit type | Direct fit |
Vehicle fitment
Covers the 1975 to 1980 Toyota Land Cruiser Base models.
The list does not include the 1964 to 1974 Land Cruiser, which Pro Comp lists separately for a different kit, or any newer Land Cruiser. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A leveling kit raises only the front, so the front and rear heights should be measured after installation to confirm the truck sits level.
