Pro Comp 6 Inch Stage I Lift Kit with ES3000 Shocks – K4079B

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 1 coil spring lift with radius arm brackets for 1981–1989 Ford F-150
  • Rear block and U-bolt kit with ES3000 front and rear shocks
  • Pitman arm, bump stop extensions and extended length brake lines
  • Lift height range 5 to 6.99 inches

Description

Overview

The Pro Comp K4079B is a 6-inch stage 1 coil spring lift for the 1981–1989 Ford F-150. The front uses coil springs with radius arm brackets, and the rear is raised with a block and U-bolt kit. The lift height range is 5 to 6.99 inches.

ES3000 front and rear shocks are supplied. Bump stop extensions, a pitman arm for steering correction and extended length brake lines are included. The shock boots are not included.

Key features

  • 6-inch lift in a stage 1 design
  • Front coil springs with radius arm brackets
  • Rear block and U-bolt lift
  • Bump stop extensions
  • Pitman arm steering correction
  • Extended length brake lines

Before and after the install

A stage 1 lift changes ride height and suspension geometry, so the parts should be matched to the truck and the way it will be driven. Coil springs at the front and a block at the rear raise the body, but the steering, brake lines and driveline all shift at the same time. Plan to check each of these once the new height is set.

Shock absorbers are usually replaced with a lift because the stock units are sized for the original height. Look for fluid leaks, worn bushings and noise over bumps as signs the old parts are worn. Inspect the steering linkage, ball joints and axle U-bolts after the first few drives, and retorque fasteners as part of routine care.

  • Check brake hoses for stretch at full droop
  • Recheck U-bolt torque after the first few drives
  • Look for worn bump stops before adding new ones

Specifications

Brand Pro Comp Suspension
Part number K4079B
UPC 614901125221
Lift 6 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arm brackets
Rear lift Block and U-bolt kit
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Shock boots Not included

Vehicle fitment

It fits 1981–1989 Ford F-150 trucks. Bronco models and other Ford years are not covered by this kit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A block and U-bolt rear lift with radius arm brackets changes the geometry at both ends, so check the alignment and the driveline angles after installation. Confirm the brake lines reach at the new height before the wheels are refitted.

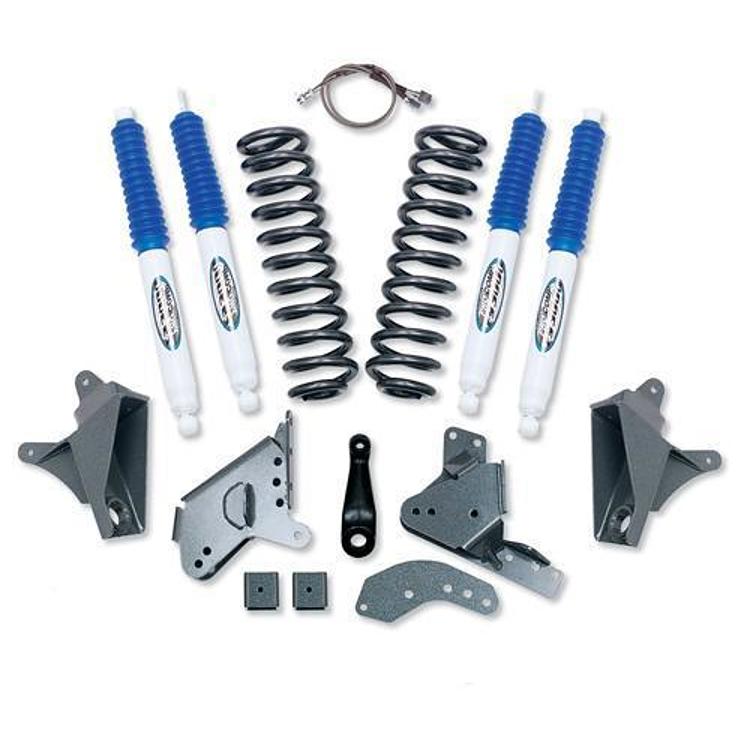

What’s included

The kit includes front coil springs, radius arm brackets, bump stop extensions, a pitman arm, extended length brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.

SKU: EXPK4079B Category:

Specification

Shipping weight 153.10 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1501981–1989Base, Custom, Ranger, Ranger Lariat, Ranger XLT, XL, XLS, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4079B fit a 1986 Ford F-150?

Yes. It fits 1981–1989 Ford F-150 trucks, which includes 1986. Confirm trim fit for your vehicle before ordering, since trims vary across that range.

Does the K4079B fit a Ford Bronco?

No. This kit fits the Ford F-150 only, so Bronco models are not covered by part number K4079B. Confirm fit for your vehicle's year, model and trim before ordering.

Are shock boots included with the K4079B?

No. Shock boots are not supplied with this 6-inch F-150 kit, so boots for the ES3000 shocks must be sourced separately.

How do I know when the shocks need replacing?

Replace shocks when they leak fluid, make knocking noises or stop controlling body movement on rough roads. Check the bushings and mounts at the same time, since worn parts can make a new shock feel loose.

Is an alignment needed after a coil spring lift?

Yes. Raising the front with radius arm brackets changes caster and alignment angles, so have the alignment checked once the truck has settled at its new height.
