Pro Comp 4″ Lift Kit with PRO-X Shocks – K5060T

Pro Comp Suspension

Shop Toyota Pickup Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1990 to 1995 Toyota 4Runner SR5 and Pickup DLX and SR5 models
  • 4-inch stage 1 lift with PRO-X front and rear shocks
  • Block and U-bolt rear lift
  • Lift height range of 4 to 5.5 inches

Description

Overview

The Pro Comp 4-inch Lift Kit with PRO-X Shocks, part number EXPK5060T (kit K5060T), is a stage 1 suspension lift for the 1990 to 1995 Toyota 4Runner SR5 and the 1990 to 1995 Toyota Pickup in the DLX and SR5 versions.

The kit lifts the truck 4 inches at stage 1 and carries a listed lift height range of 4 to 5.5 inches. Rear lift comes from a block or spacer paired with a block and U-bolt component. PRO-X shocks are included at the front and the rear.

Key features

  • 4-inch stage 1 suspension lift

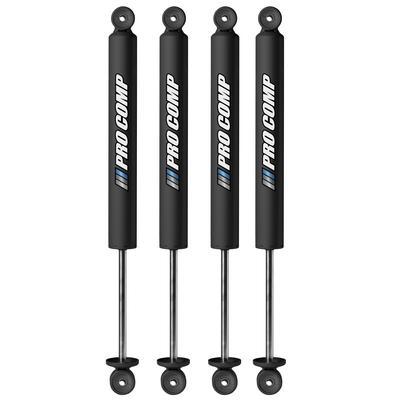

  • PRO-X shocks at the front and rear, included
  • Block and U-bolt rear lift
  • Lift height range of 4 to 5.5 inches

Rear block and U-bolt basics

A rear block lifts the axle away from the leaf springs, which shifts the pinion angle and can change how the driveshaft turns. U-bolts clamp the axle to the block and spring, and their nuts can loosen as the new setup settles under load. Keeping the clamp tight is one of the simplest ways to protect the rear end.

Leaf spring condition matters too. Worn or sagging springs can keep the rear low even with a block, and cracked leaves should be replaced before the lift is finished. Shock mounts and bushings are often inspected at the same time, since changing the rear height alters the angle the shock works at.

  • Retorque U-bolts after the first few drives
  • Inspect leaf springs for cracks or sag
  • Check shock mounts for wear

Specifications

Brand Pro Comp Suspension
Part number EXPK5060T
Kit code K5060T
Suspension type Lift kit, stage 1
Lift height 4 inches stage 1; range 4 to 5.5 inches
Rear lift method Block or spacer
Rear lift component Block and U-bolt
Shocks included Yes
Front shocks PRO-X
Rear shocks PRO-X
Fit type Direct fit

Vehicle fitment

It fits the 1990 to 1995 Toyota 4Runner in the SR5 version, and the 1990 to 1995 Toyota Pickup in the DLX and SR5 versions.

The list does not include the Base or Turbo Pickup versions, or any model year before 1990 or after 1995. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The rear block and U-bolt setup changes the rear ride height, so the rear should be measured and the alignment checked after installation.

What’s included

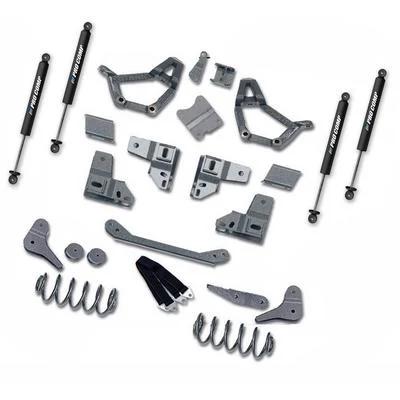

Four-inch stage 1 lift hardware with PRO-X front and rear shocks.

SKU: EXPK5060T Categories: ,

Fitment

VehicleYearsTrims
Toyota 4Runner1990–1995SR5
Toyota Pickup1990–1995DLX, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K5060T fit a 1992 Toyota 4Runner SR5?

Yes. It fits the 1990 to 1995 Toyota 4Runner SR5, and 1992 falls within that range. Confirm the trim before ordering.

Does it fit a Base Pickup?

No. The Pickup versions listed are the DLX and SR5. The Pickup versions listed are the DLX and SR5 models only.

What is the lift height?

The kit is a 4-inch stage 1 lift, with a listed lift height range of 4 to 5.5 inches. PRO-X shocks are included at the front and the rear.

How often should U-bolts be checked?

Check them after the first few drives, then at regular service intervals. Nuts can loosen as the block settles, and a loose clamp can let the axle shift under load. Replace any U-bolt that shows stretched threads or damage.
